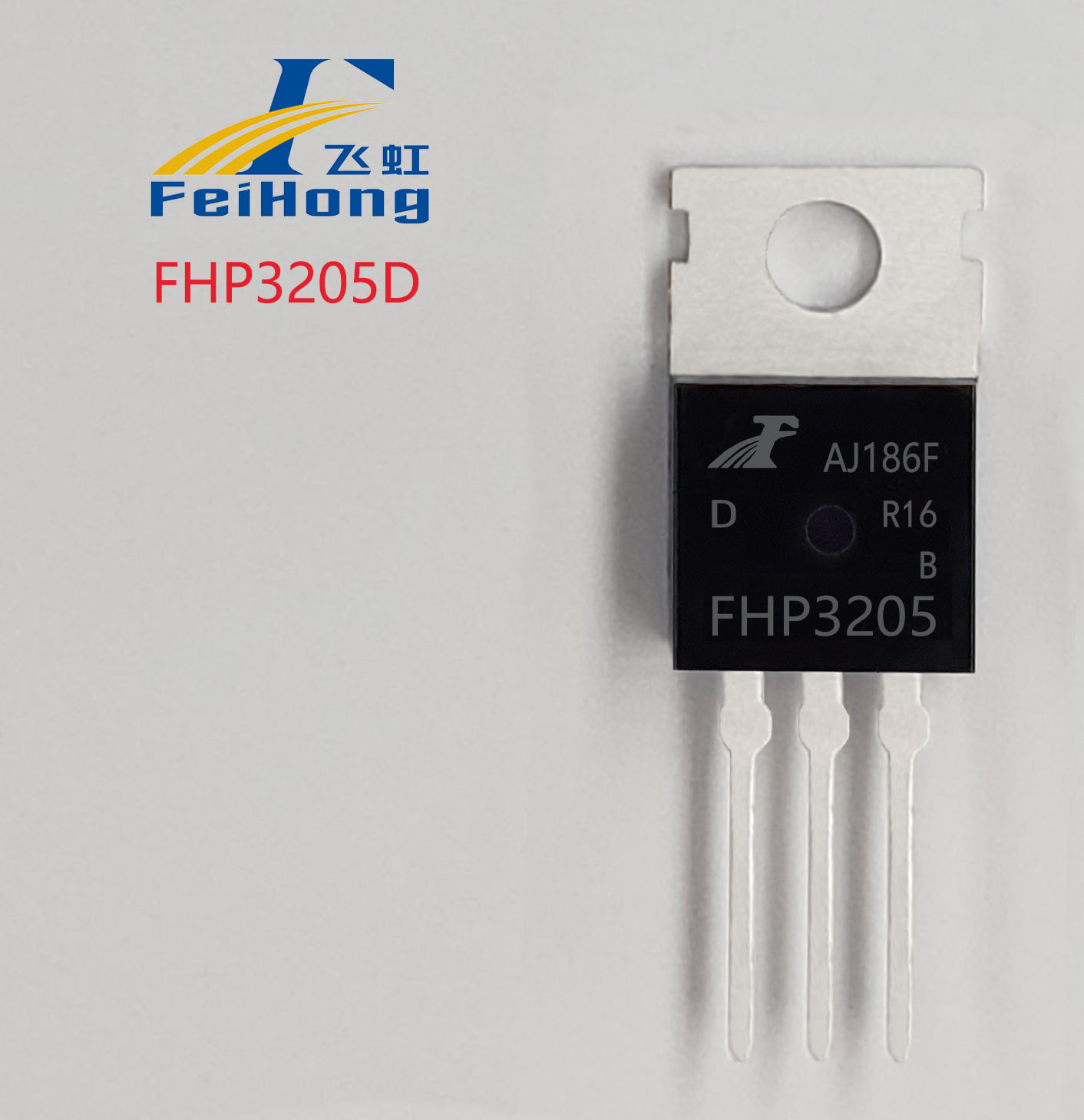

FHP3205D

Release time：2017-05-22 17:43:41

Industry generic name：IRF3205Wait

View Specifications >

  • Feihong 3205 FET, N-channel planar process MOS tube, suitable for 300W/12V input inverter front circuit. Other brand alternative models: IRF3205.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP3205D
N
TO-220
20
2～4
110
55
7.5
8.5

Product Details

[Feihong 3205 Product Description]

The Feihong 3205 MOSFET is an N-channel planar process MOS tube, suitable for the front-end circuit of inverters with 300W/12V input. Alternative models from other brands: IRF3205;


[Feihong 3205 Product Features]

Good consistency, high reliability, high avalanche energy tolerance, and low on-resistance.



[Feihong 3205 Application Examples]




Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IXFK94N50P2Substitute IPP030N10N3G

prev：

FHP1404

next：

FHP3710C

back

FHP3205DProduct Application Articles
