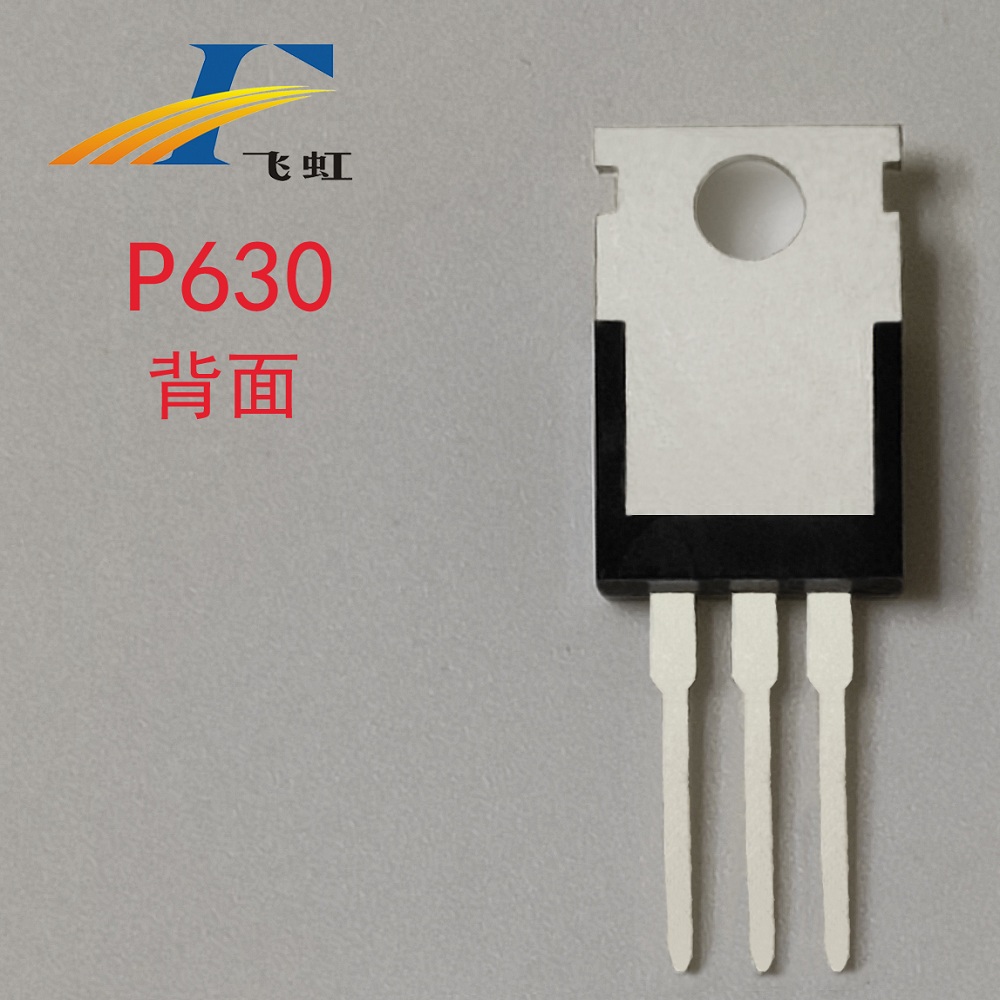

FHP630A/FHF630A/FHD630A

Release time：2017-05-23 10:56:26

Industry generic name：IRF630Wait

View Specifications >

  • The FHP630A can be applied to 48V/60V input inverter front-stage DC-DC boost circuit (Q1-Q2), applied to DC-AC inverter power supply, DC-DC power converter, high-voltage H-bridge PMW motor driver, electronic ballast, high-end switching power supply and other industrial products

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP630A/FHF630A/FHD630A
N
TO-220 TO-220F TO-252
30
2～4
9
200
0.3
0.4

Product Details

【Product Description】

FHP630A, suitable for 48V/60V input inverter front-end DC-DC boost circuit (Q1-Q2), used in DC-AC inverter power supply, DC-DC converter, high-voltage H-bridge PMW motor drive, electronic ballast, high-end switch power supply and other industry products;


【Product Features】

Feihong 630A MOSFET, good consistency, high reliability, high avalanche energy. Can be replaced.




【Application Examples】


FHP630A pin diagram
