FHP250N1F2A/FHS250N1F2A/FHA250N1F2A

Release time：2022-07-13 13:53:25

Industry generic name：Infineon IPP030N10N3GWait

View Specifications >

  • The FHP250N1F2A adopts SGT process MOS, which provides extremely small gate charge and internal resistance, effectively helps MPPT controller to improve working efficiency. It is application-oriented and passes strict tests (100 test avalanche, thermal resistance, Rg, Ciss, DC parameters) and file screening, with high consistency. Other MOS tube brands replace the model: IPP030N10N3G.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP250N1F2A/FHS250N1F2A/FHA250N1F2A
N
TO-220 TO-263 TO-3PN/TO-247
20
2～4
250
100
2.5
3

Product Details

【FHP250N1F2A product type】

N-channel Trench MOSFET


【FHP250N1F2A product description】

      FeihongFHP250N1F2A adopts SGT process MOS, providing extremely small gate charge and on-resistance, effectively helping MPPT controllers improve work efficiency. It is application-oriented, passing strict tests (100% avalanche, thermal resistance, Rg, Ciss, DC parameter testing) and graded screening, with high consistency. Other MOS tube brand alternative models: IPP030N10N3G. Commonly used in: DC-AC inverters: such as vehicle-specific inverters, industrial frequency inverters; DC-DC switch power supplies (48V communication power supplies); solar inverters (all-in-one machines including MPPT and inverters); MPPT controllers; UPS uninterruptible power supplies.



【FHP250N1F2A product features】

Low on-resistance, low gate charge, 100% EAS test, 100% DVDS thermal resistance test, 100% Rg test, VTH refined grading, adopting SGT technology, meeting industrial grade requirements, high product consistency, high reliability, low on-resistance, can improve the overall machine efficiency.



【FHP250N1F2A application examples】

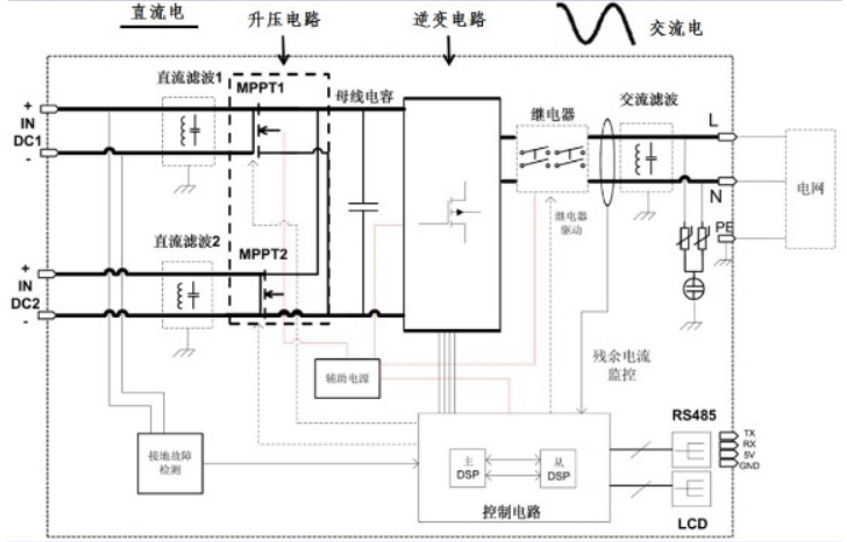

FHP250N1F2A field effect transistor application circuit


Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GIXFK94N50P2 model MOS tube

prev：

FHP120N9F4A/FHD120N9F4A

next：

FHP50N8F12LA/FHU50N8F12LA...

back

FHP250N1F2A/FHS250N1F2A/FHA250N1F2AProduct Application Articles

Why choose Feihong

omni-directionalmarketing service system，15+YearFAEExperience technical support

Feihong Semiconductor focuses on R & D and production of power devices

MOS FET/IGBT Single Tube/Diode/Triode

Free sample：feihongbcok@gmail.com

WeChat sweep, direct communication!

SGTMOSFET product application articlesmore>
common application articlesmore>

  • FHP40N20D

    FHP40N20D, the present invention can be applied to a 48V input inverter pre-stage DC-DC step-up circuit (Q1-Q2), and can also be applied to an AC 110V output voltage correction wave DC-AC full-bridge inverter circuit (Q3-Q6). Alternative IR FET brand IRFB31N20D
    Free sample
    Join List

  • FHP4310V

    success
    Free sample
    Join List

  • FHP40N25W/FHF40N25W/FHA40N25W
    Free sample
    Join List

  • FHD120N03B
    Free sample
    Join List

  • FHP20N65B/FHF20N65B/FHA20N65B

    20N65B is an N-channel enhanced VDMOS, using planar technology. This product is widely used in AC-DC switching power supplies, such as: LED lighting drive power supply; Supporting power supply for industrial automation equipment; Medical equipment power supply; Lithium battery charger; Power adapter, alternative models of other MOS tube brands: 20N65, etc.
    Free sample
    Join List

  • FHP4410

    Feihong 4410,N-channel trench process MOS tube, suitable for 72V/24-30 tube electric vehicle controller circuit. Alternative field effect tube: IRFB4410, 10H16
    Free sample
    Join List

  • FHA250W
    Free sample
    Join List

  • FHA064NA
    Free sample
    Join List

  • FHK94N50A

    N-channel enhanced VDMOS-with frd ,ID = 94A ,BVDSS = 500V ,RDSON:47mΩ-typ,65mΩ-max,TO-264 package form factor, market reference model: IXYS brand IXFK94N50P2
    Free sample
    Join List

  • FHP3773W/FHF3773W/FHA3773W
    Free sample
    Join List

  • FHA60R099AF
    Free sample
    Join List

  • FHP120N08B

    Feihong 120N08B uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in inverters. Other MOS tube brand alternative model: 120N 08 140 N08
    Free sample
    Join List

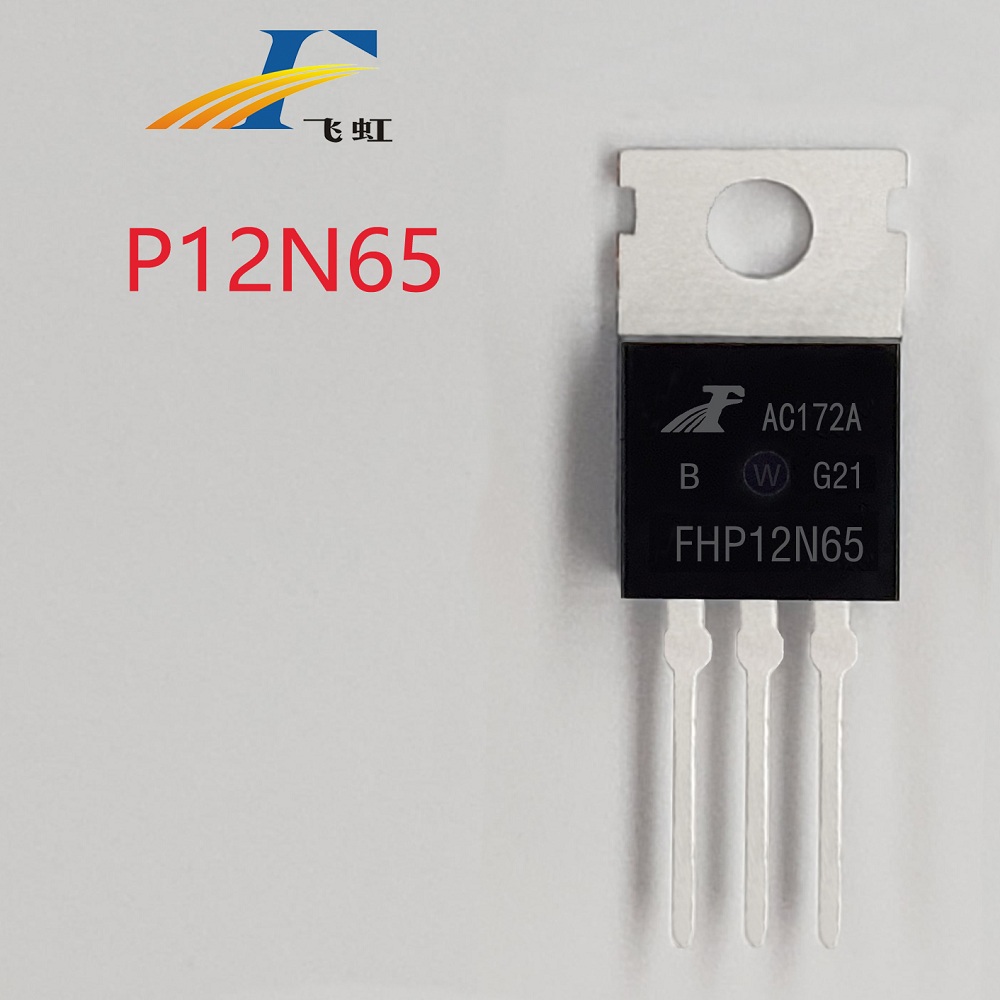

  • FHP12N65W/FHF12N65W
