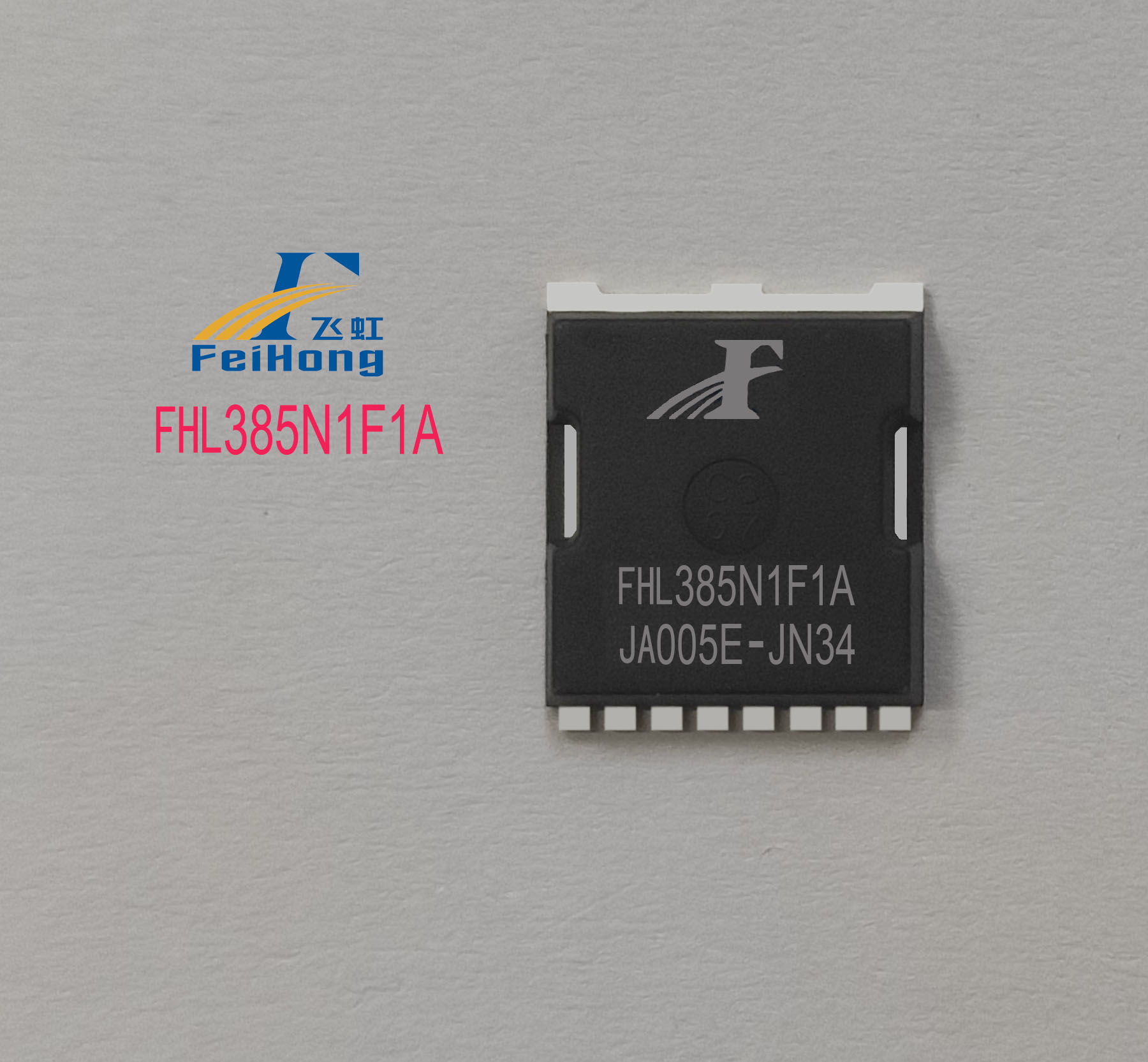

FHL385N1F1A

Release time：2023-08-18 20:18:42

Industry generic name：Infineon:IPT015N10N5Wait

View Specifications >

  • FHL series products adopt a TOLL-8L package shape. The package products have the characteristics of small size, low package internal resistance, low parasitic inductance, low thermal resistance, etc. They are suitable for high power density application scenarios such as electric bicycles, electric motorcycles, electric sightseeing cars, lithium battery protection, communication power supply, etc.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHL385N1F1A
N
TOLL-8
20
2.38~3.8
385
100
1.25
2.1

Product Details

【FHL385N1F1A Product Type】


【FHL385N1F1AProduct Description】

      The FHL series products adopt the TOLL-8L package form, which has the characteristics of small size, low internal resistance, low parasitic inductance, and low thermal resistance, suitable for high-power density application scenarios such as electric bicycles, electric motorcycles, electric sightseeing vehicles, lithium battery protection, communication power supplies, etc.



【FHL385N1F1AProduct Features】


  1. Low on-resistance, supports smaller impedance and larger peak current.

  2. 100% EAS test

  3. 100% DVDS thermal resistance test, lower thermal resistance, excellent temperature rise performance.

  4. 100% Rg test

  5. Small package inductance, excellent EMI characteristics and reliability, meets industrial reliability requirements.



      【FHL385N1F1AApplication Examples】

      BMS





High Frequency Switching Power Supply:PD power supply, communication power supply, synchronous rectification


Motor Control:Electric bicycle, electric motorcycle, electric tricycle, electric four-wheel sightseeing vehicle, electric forklift
