The selection and application of MOSFETs in circuit design have been localized in China, and for the TOLL package, there is not only IPT015N10N5 but also the domestic FHL385N1F1A model MOSFET!

In recent years, the TOLL (TO-Leadless) package has gained widespread use in high-power applications, especially in motor control circuits such as electric forklifts, where it also offers many advantages, including the following characteristics:

1. Low thermal resistance: The TOLL package has optimized thermal performance with lower thermal impedance, helping to improve heat dissipation efficiency.

2. Small footprint: The TOLL package occupies less PCB space compared to other packages.

3. High current capability: The TOLL package can handle higher currents, making it suitable for motor control circuits requiring large current output.

4. High reliability: Due to its leadless design, the TOLL package has a larger contact area, providing higher mechanical strength and reliability.

Given these advantages, is there a domestically produced MOSFET that matches the TOLL package and can replace the parameters of IPT015N10N5 in China?

The answer is yes. A domestically produced MOSFET with the above advantages is the FHL385N1F1A field-effect transistor from Feihong Semiconductor. In addition to the advantages of the TOLL package, it also has the following features:

1. 100% Rg testing to verify product stability.

2. Low on-resistance: Enables smaller impedance and larger peak current support.

3. 100% DVDS thermal resistance testing (lower thermal resistance, resulting in excellent temperature rise performance).

4. Industrial-grade reliability: Small package inductance, leading to excellent EMI characteristics and reliability.

5. 100% EAS testing, providing data reference for product reliability.

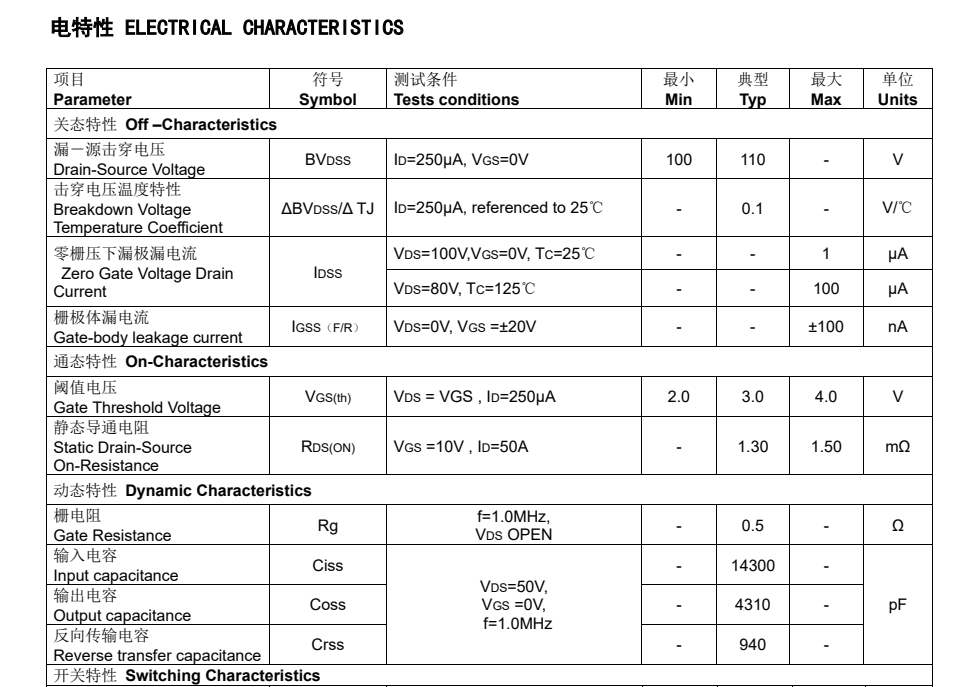

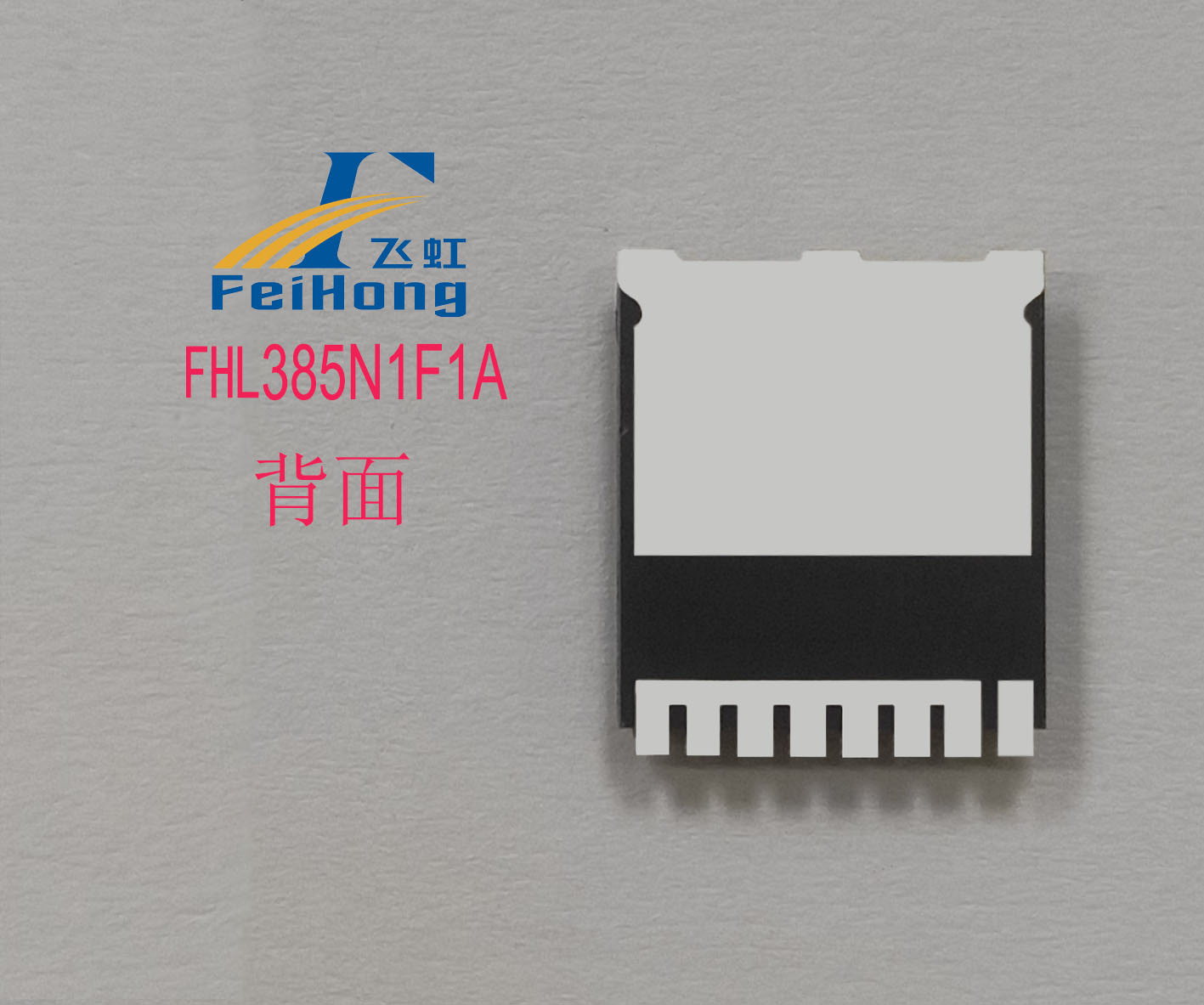

FHL385N1F1A is an N-channel enhancement-mode field-effect transistor, using the TOLL-8L package form, with parameter values: Vgs (±V): 20; VGS (th): 2.0-4.0V; ID (A): 385A; BVdss (V): 100V.

Static on-resistance (typ): 1.3mΩ; maximum pulse drain current (IDM): 1540A; reverse transfer capacitance: 940pF.

How to make motor control circuits more compact and user-friendly? It is recommended to choose the TOLL package MOSFET: FHL385N1F1A! It can also replace the parameter model of IPT015N10N5, giving motor control manufacturers a competitive edge in the market.

For the replacement of a 100V, 385A MOSFET, selecting the right model is very important. Feihong Semiconductor's MOSFETs are widely used in electric forklifts and can also be applied to new energy vehicles, audio power amplifiers, UPS, and other terminal applications. They provide quality products and services to domestic electronic product manufacturers. In addition to free samples, they can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
