A new wave of Chinese enterprises going global is now emerging in the green industry, driven by electrification and lithium battery technology, which is accelerating the internationalization process of Chinese forklifts. This means another growth opportunity for motor controllers in forklifts. How can companies seize this opportunity?

The core lies in product strength. How to improve the quality of your own motor controller to win the favor of forklift companies? The performance of a motor controller is directly affected by the quality of the MOSFETs. After all, MOSFETs are one of the core electronic components in electric vehicle controllers.

From the perspective of the controller industry, what are some domestically available high-quality MOSFETs that can be used in electric forklift controllers? Besides the IPT015N10N5 parameter model in the market, we recommend selecting the FHL385N1F1A field-effect transistor from Feihong Semiconductor.

Why do we recommend using this product for electric forklift controllers? Because the FHL385N1F1A field-effect transistor has the following features:

1. 100% Rg testing to verify product stability

2. Low on-resistance: allows the product to support smaller impedance and larger peak current.

3. 100% DVDS thermal resistance testing (lower thermal resistance provides excellent temperature rise performance)

4. Industrial-grade reliability: small package inductance, resulting in excellent EMI characteristics and reliability.

5. 100% EAS testing ensures product reliability with data reference

Based on the above features, it is known that the industrial-grade FHL385N1F1A field-effect transistor with a current/voltage of 385A/100V is very suitable for use in the control circuit of electric forklifts.

Of course, in the application of the controller circuit, our power engineers must understand the detailed parameters of this high-quality FHL385N1F1A domestic field-effect transistor: It has a current/voltage of 385A/100V, RDS(on) = 1.5mΩ(MAX) @VGS = 10V, RDS(on) = 1.3mΩ(TYP) @VGS = 10V, maximum gate-source voltage @VGS = ±20V.

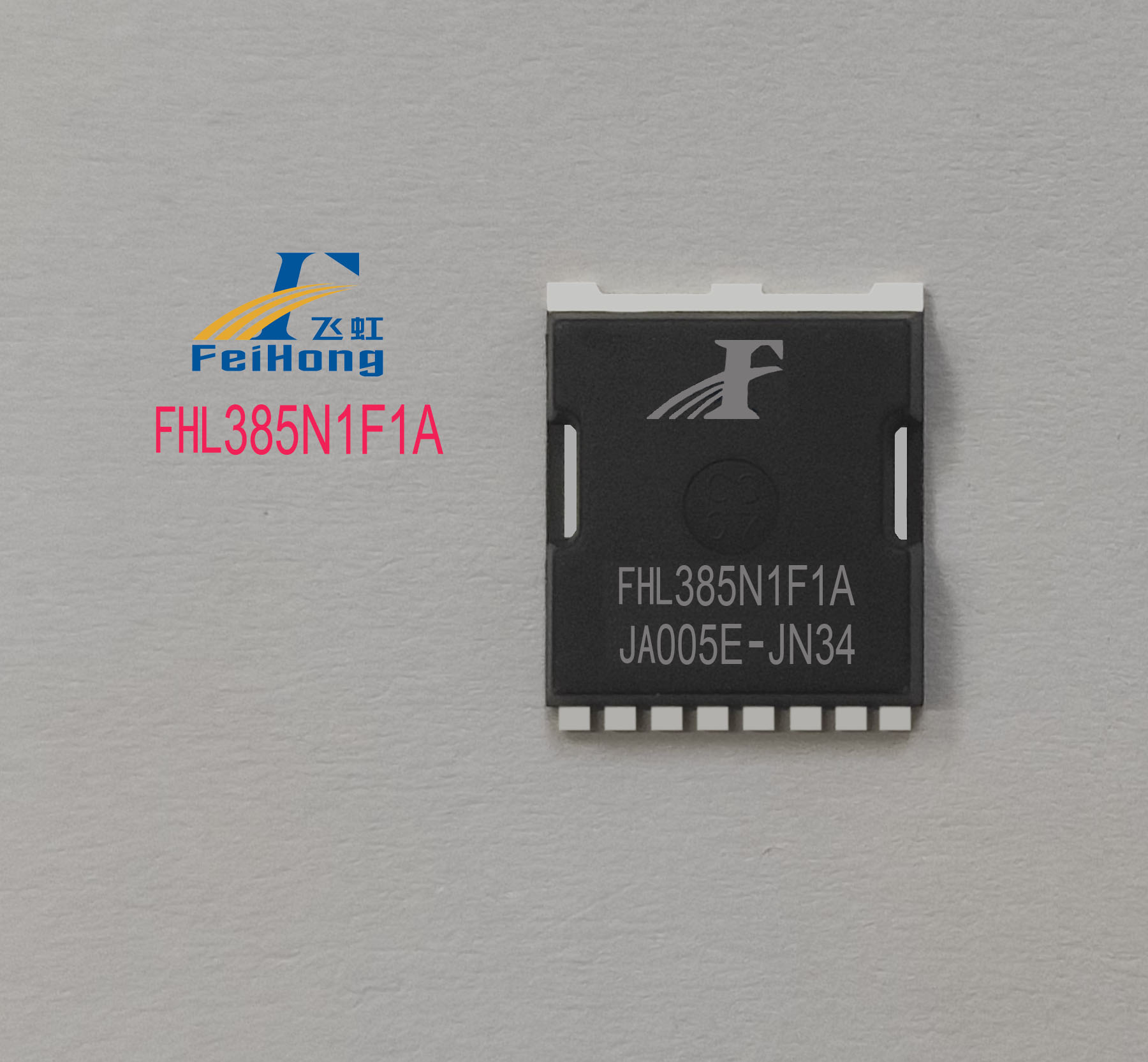

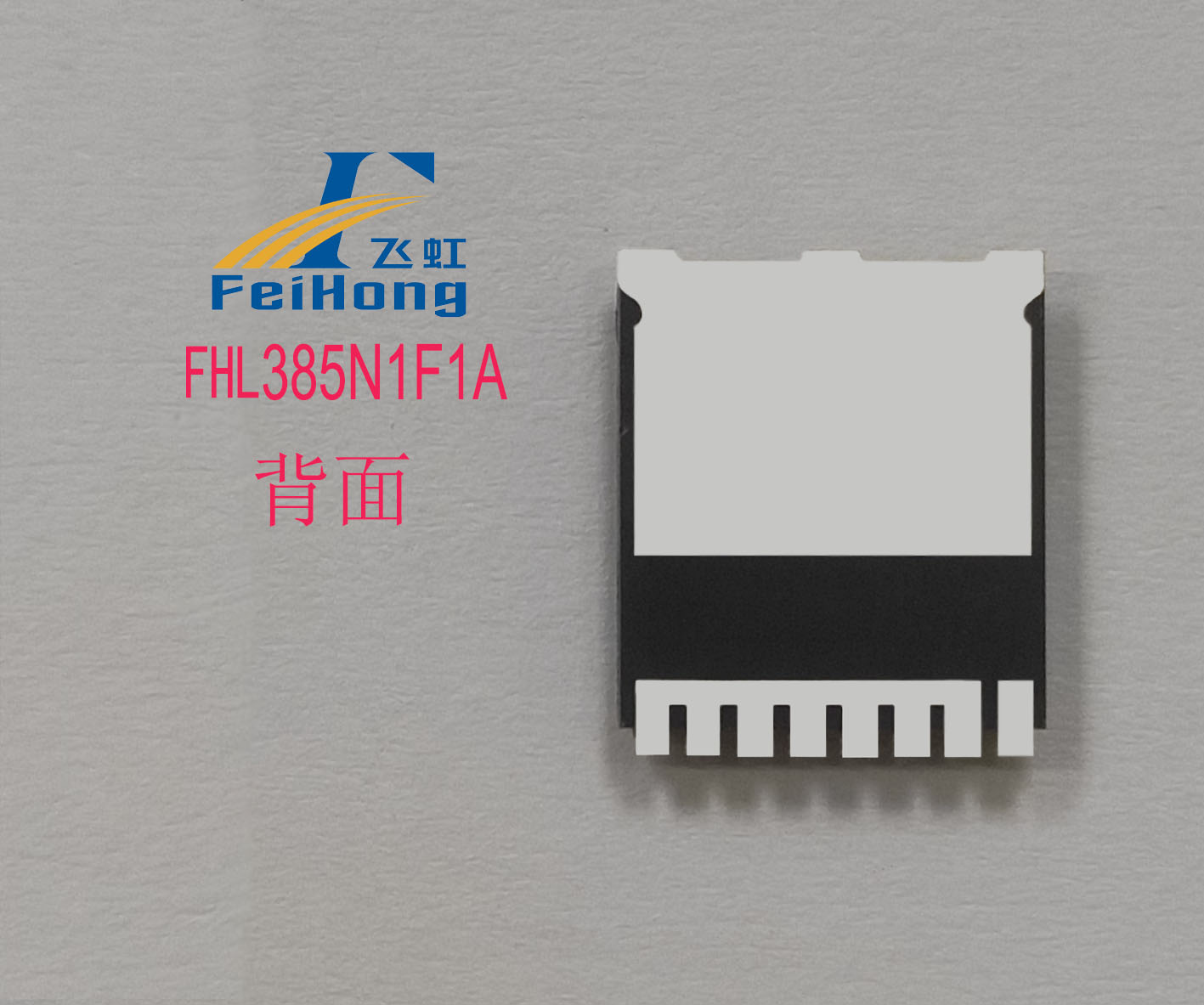

The FHL385N1F1A is an N-channel enhancement-mode field-effect transistor. The FHL series uses the TOLL-8L package form, and its packaged products have low thermal resistance, low internal resistance, low parasitic inductance, and small size.

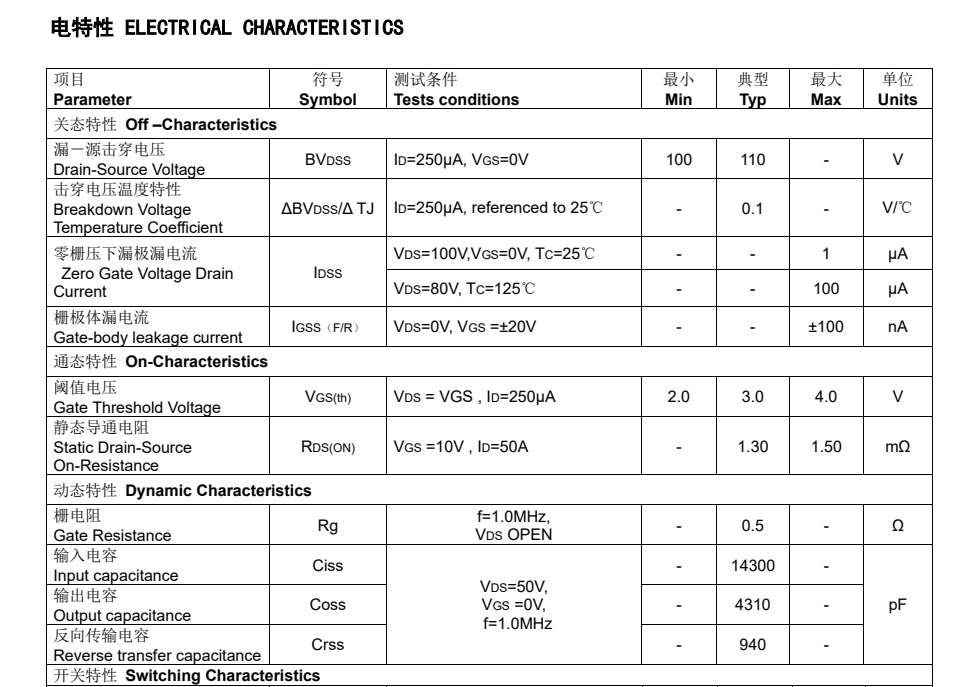

This product also has specific parameter values: Vgs(±V): 20; VGS(th): 2.0-4.0V; ID(A): 385A; BVdss(V): 100V.

Static on-resistance (typ): 1.3mΩ; Maximum pulse drain current (IDM): 1540(A); Reverse transfer capacitance: 940pF.

The start of China's forklift enterprises' internationalization process directly affects motor growth. How to gain a competitive edge in the fiercely competitive electric forklift motor market? The key lies in seeking high-quality FHL385N1F1A field-effect transistors as substitutes for the IPT015N10N5 parameter model for use in electric forklift control circuits.

Using a 100V, 385A MOSFET replacement requires selecting the right model. Feihong Semiconductor's MOSFETs are not only widely used in electric forklifts but can also be applied to new energy vehicles, audio amplifiers, UPS, and other terminal applications. They provide high-quality products and services to domestic electronics manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Simply search "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
