According to the "Global Data Center Lithium-ion Battery Analysis Report", it is expected that by 2025, the market share of lithium-ion batteries in the national data center battery will increase to 38.5%. This means that 2024 will be an important year for growth, which is also an important opportunity for lithium battery protection board manufacturers.

How to choose a high-quality and reliable MOSFET to make your own lithium battery protection board more stable, reliable, and safe? The engineers at FEICO Semiconductor suggest using the 100N8F6A to replace the STP110N8F6 model field-effect transistor.

Why use 100N8F6A to replace the STP110N8F6 FET? This is because this MOSFET, with a TO-263 package, has been widely used in various lithium battery protection boards and recognized by many manufacturers. Moreover, its voltage of 85V and current of 120A are also very suitable for use in lithium battery protection boards.

Let's review the specific product parameters:

With a current of 120A and voltage of 85V, RDS(on) = 6.5mΩ(MAX) @VGS = 10V, RDS(on) = 5.3mΩ(TYP) @VGS = 10V, maximum gate-source voltage @VGS = ±20V.

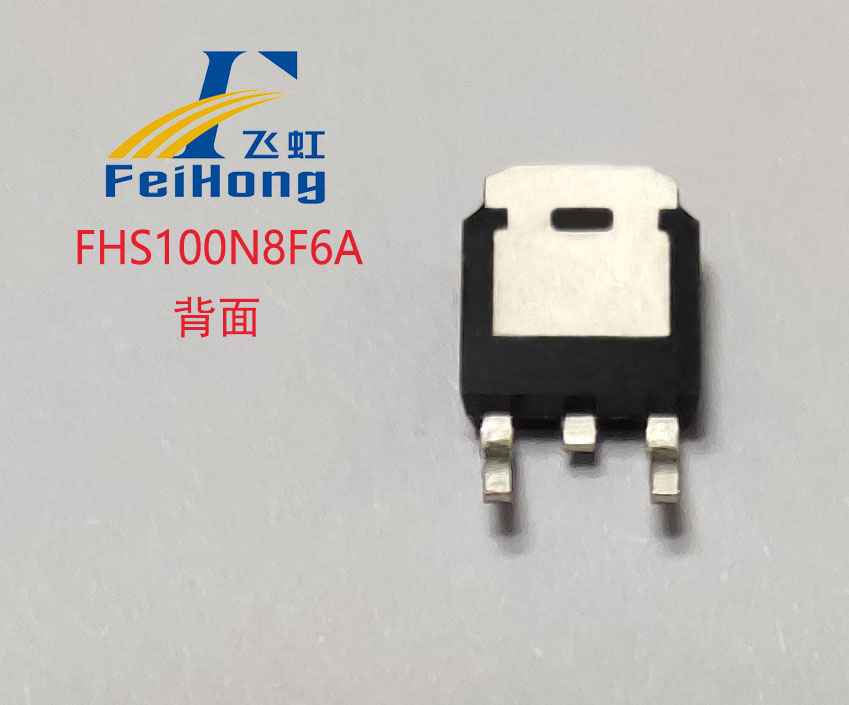

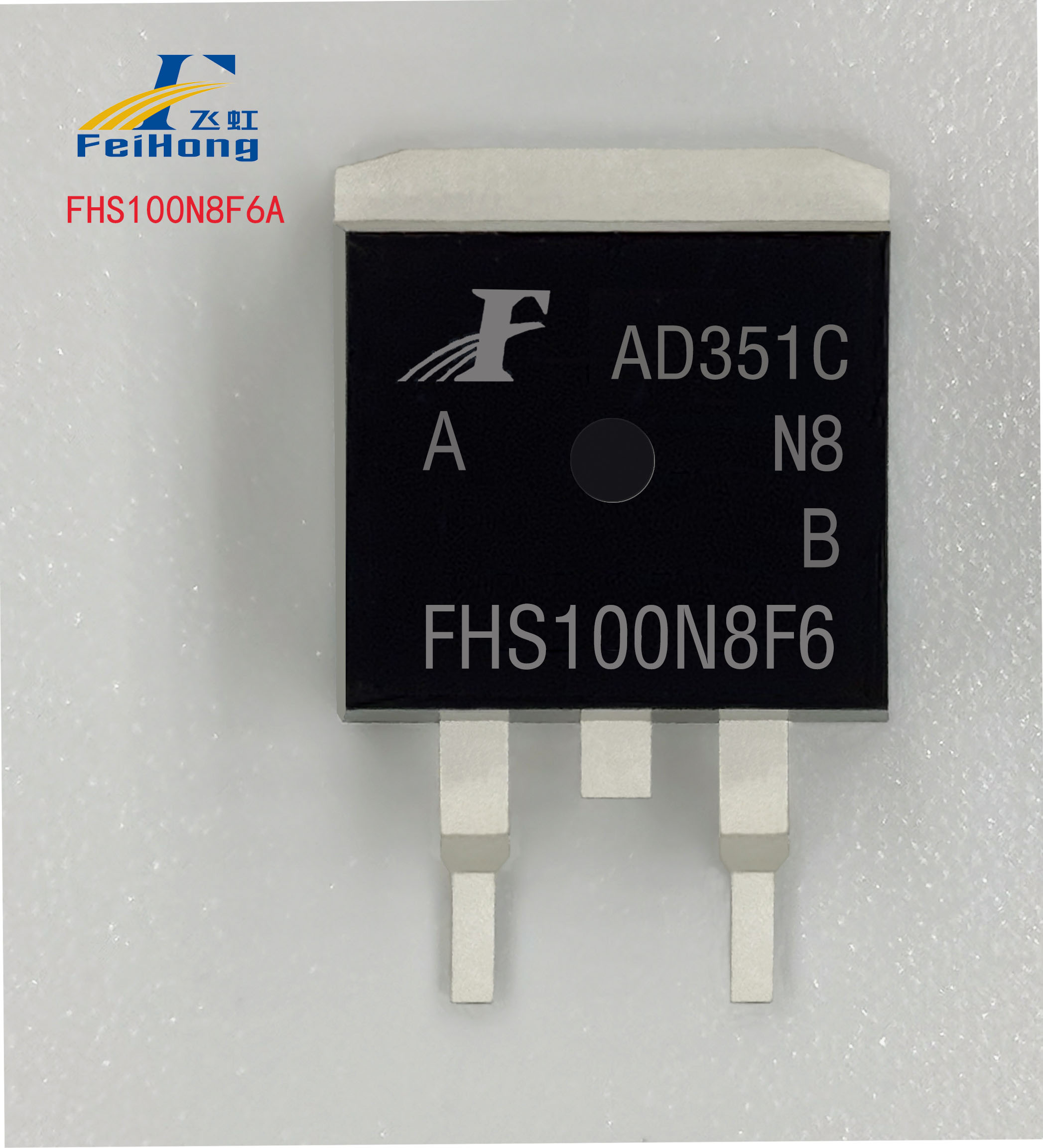

The 100N8F6A is an N-channel enhancement-mode field-effect transistor with a TO-263 package size suitable for circuits.

This product also has specific parameter values: Vgs (±V): 20; VGS (th): 2.0-4.0V; ID (A): 120A; BVdss (V): 85V.

Maximum pulse drain current (IDM): 320A, reverse transfer capacitance: 18pF.

The technical development of lithium battery protection boards has become relatively mature. In addition to experience, stronger electronic component supply chain manufacturers are needed to ensure better products. It is recommended to understand the FEICO domestic model: 100N8F6A model parameters to replace the STP110N8F6 model for application.

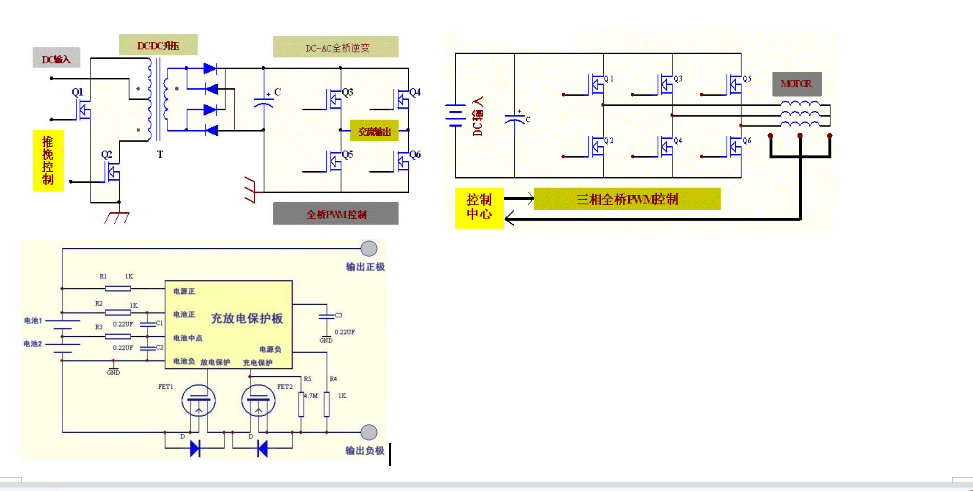

Replacing the MOSFET with 120A and 85V can enhance the product power of enterprises by selecting the right model parameters. FEICO has obtained 15 utility patents and inventions and has collaborated with Sun Yat-sen University and the Chinese Academy of Sciences to develop GaN devices. FEICO products have been widely applied in lithium battery protection boards, various DC/DC power supplies, DC-AC inverters, AC-DC switch power supplies, energy storage power supplies, gardening tools, and BLDC motor drivers, helping partners solve domestic high-quality products that meet national conditions and international quality standards. In addition to providing free samples, we can also customize MOSFET products according to customer needs. Simply enter "FEICO Semiconductor" in Baidu to find us. Free sample hotline: 400-831-6077.
