Industrial automation equipment is being used more and more widely in industrial applications, with common examples including CNC (Computer Numerical Control) machines, robotic arms, packaging machinery, laser cutting machines, etc. All of these devices require the use of stepper motors for precise positioning control.

The performance of stepper motor control depends on the MOSFET, a semiconductor component. For engineers developing stepper motor drive circuits, choosing a high-quality MOSFET to make their product circuit better is a very important task.

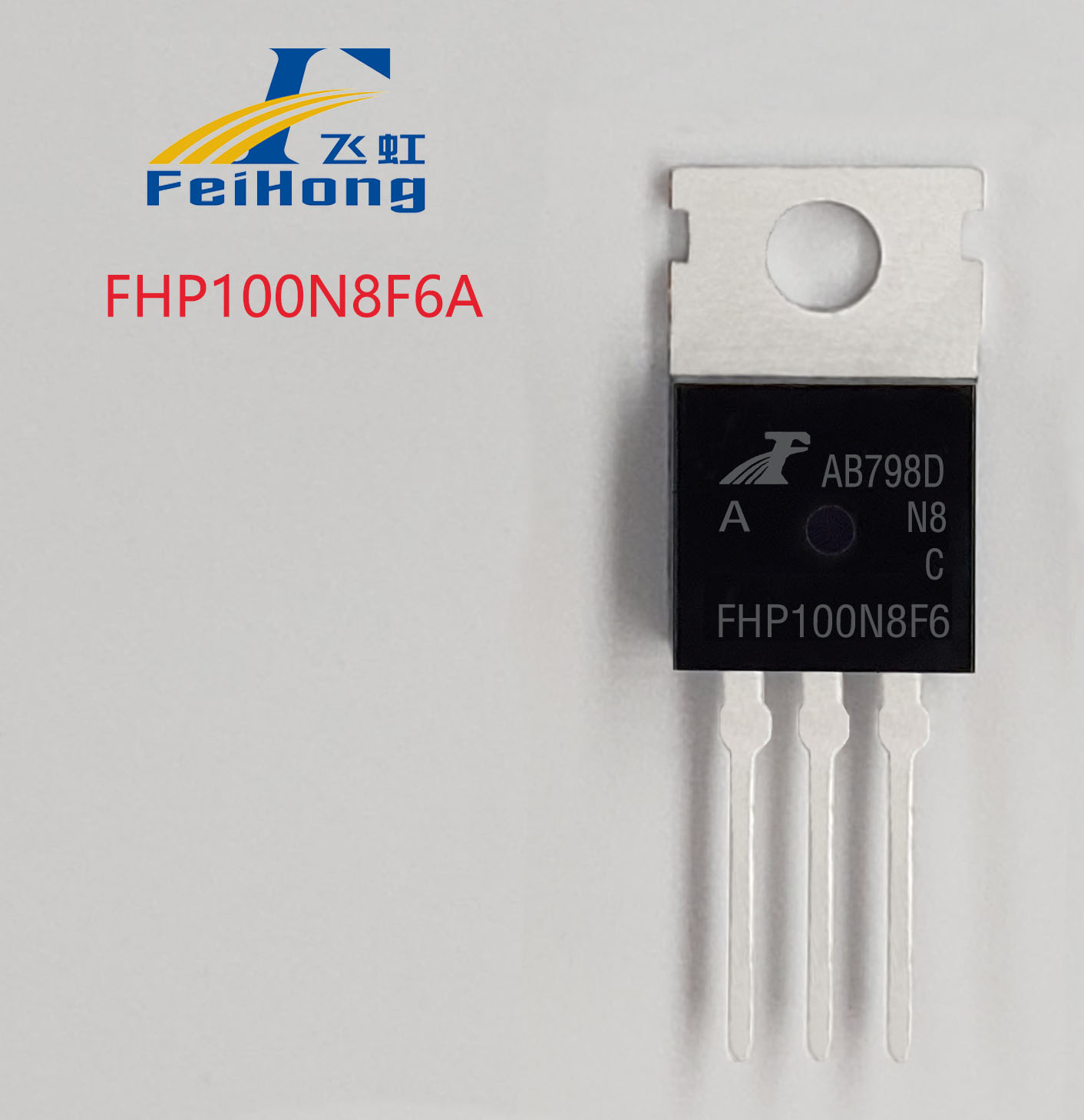

With the advent of the artificial intelligence era, automation equipment will inevitably improve again. Today, we will learn about a 100N8F6A model field-effect transistor. It is a pure domestic MOSFET semiconductor component that can replace the STP110N8F6 model parameters for use in drive circuits.

As mentioned above, the 100N8F6A model field-effect transistor has gained market recognition due to its perfect parameters for use in industrial automation equipment. In addition to the basic parameters of 120A and 85V, it also possesses excellent product characteristics:

1. Low gate charge

2. Fast switching speed

3. 100% tested for Rg

4. 100% tested for avalanche breakdown

5. 100% tested for thermal resistance

6. Extremely low FOM (RDSON*Qg)

7. Extremely low input capacitance

Of course, in addition to the excellent features of the product itself, the 100N8F6A can replace the STP110N8F6 medium and low voltage MOSFET model because it also has excellent parameters:

1. N-channel enhancement-mode field-effect transistor

2. The TO-220 packaged product can be used in drive circuits

3. Vgs (±V): 20; VGS (th): 2.0-4.0V;

4. ID (A): 120A; BVdss (V): 85V

5. Maximum pulse drain current (IDM): 320A

6. Reverse transfer capacitance: 18pF

7. Static on-resistance RDS(on) = 6.5mΩ(MAX) @VGS = 10 V, RDS(on) =5.3mΩ(TYP) @VGS = 10 V

For stepper motor drive circuits in CNC (Computer Numerical Control) machines, robotic arms, packaging machinery, laser cutting machines, and other industrial automation equipment, it is recommended to select the 100N8F6A model field-effect transistor for application.

Feihong Semiconductor provides professional products for electronic manufacturers and one-stop service for power device supply, always starting from user needs.

Its excellent manufacturing process and parameter performance provide better compatibility for industrial automation equipment, ensuring product reliability.

With rapid market iteration and technological improvement, selecting the right model is therefore very important. Feihong Semiconductor's MOSFETs have been widely applied in power circuits, smart home appliances, new energy electronics fields: such as automotive electronics, electric bicycles, smart speakers, household appliances, LED lighting, chargers, computer power supplies, and other industries, providing high-quality products and supporting services for domestic electronic product manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Simply enter "Feihong Semiconductor" into Baidu to find us. Free sample hotline: 400-831-6077.
