Feihong Semiconductor has launched a new domestic MOSFET product, FHP1906V, targeting the needs of inverter manufacturers, DC-DC converters, motor control and drive.

FHP1906V is an N-channel enhancement-mode field-effect transistor that adopts advanced trench technology to reduce conduction losses, improve switching performance, and increase avalanche energy.

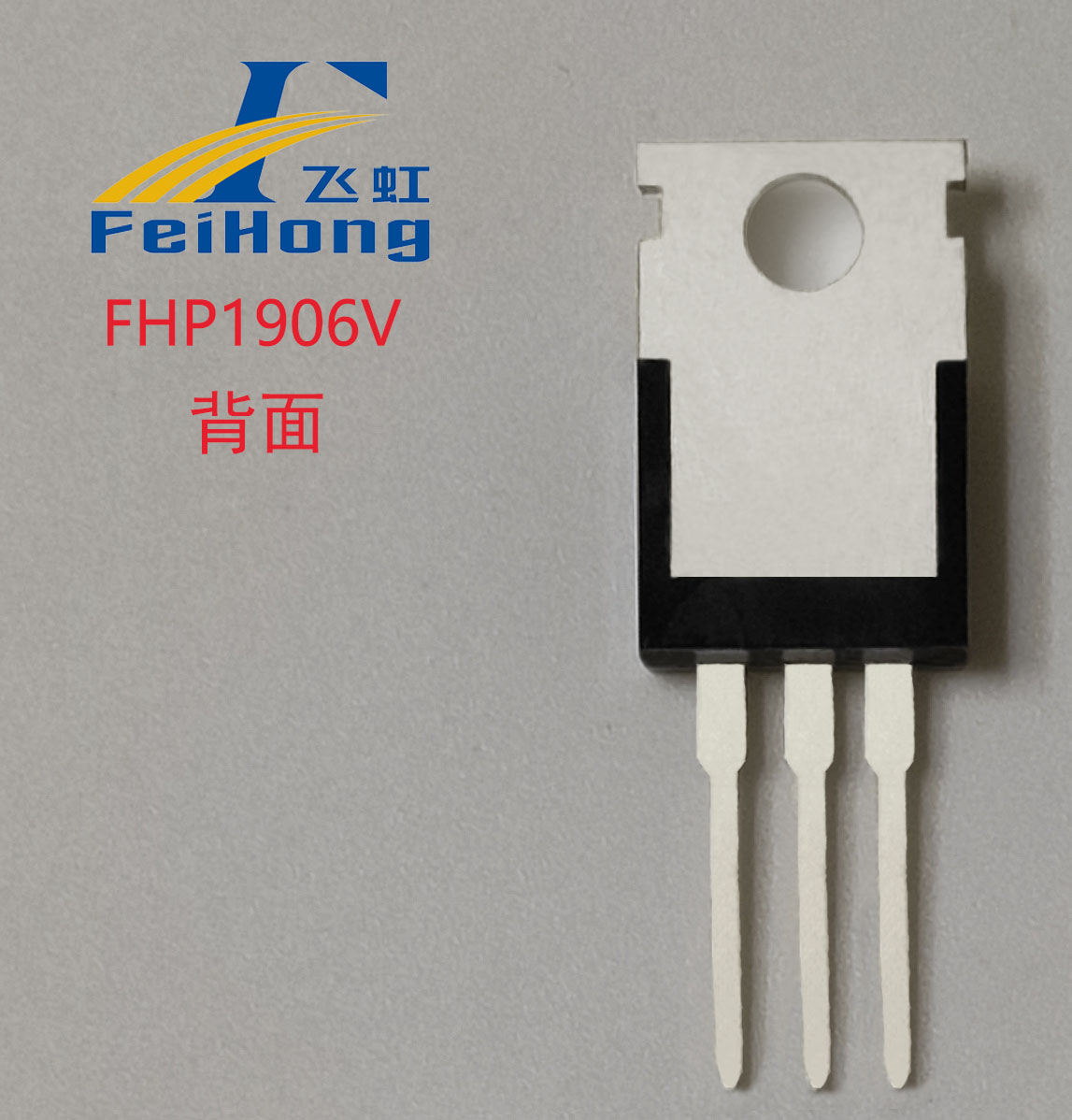

This transistor can be used in various power switch circuits to achieve system miniaturization and high efficiency. The product is packaged in TO-220 and complies with JEDEC standards. It is environmentally friendly and meets RoHS and REACH standards, as well as being halogen-free.

The following will introduce FHP1906V field-effect transistors from aspects such as product features, competitor parameter comparison, recommended application range, and some typical characteristic curves:

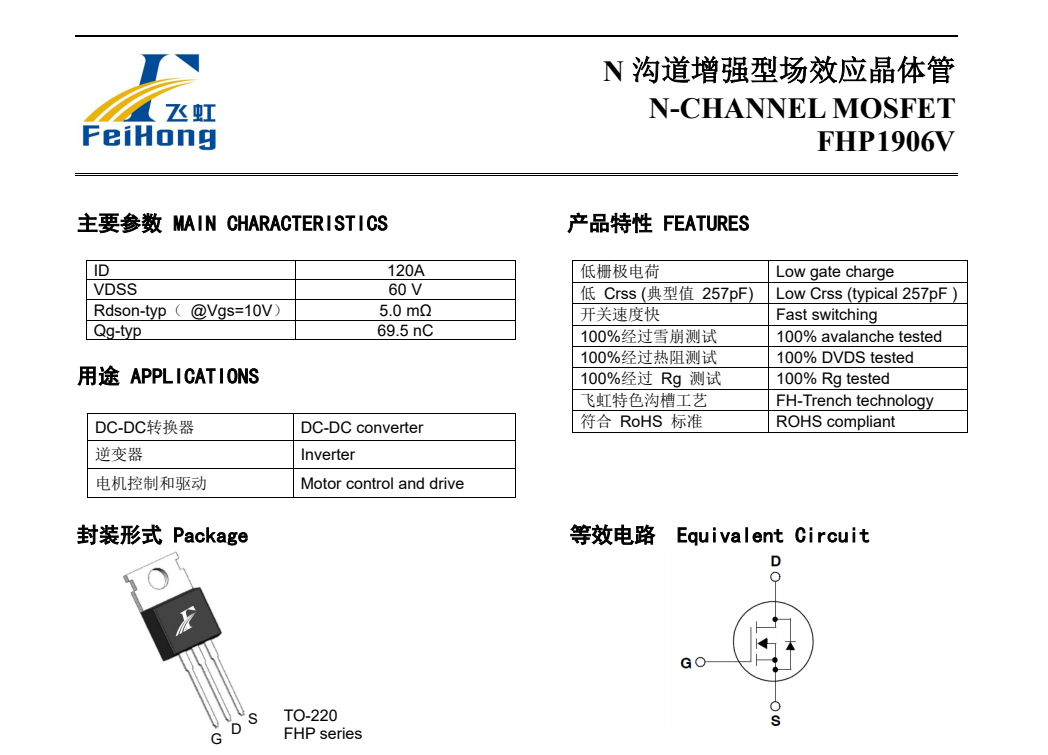

I. Product Features

1. 100% Rg testing.

2. 100% EAS testing.

3. 100% DVDS thermal resistance testing.

4. High avalanche tolerance and strong impact resistance.

5. Adopting refined Vth classification, it further improves product consistency.

6. It has extremely low on-resistance RDS(on) and excellent quality factor FOM(RDS(on)*Qg).

7. By adopting unique trench process and excellent encapsulation BOM materials, the product has high reliability and fast switching speed.

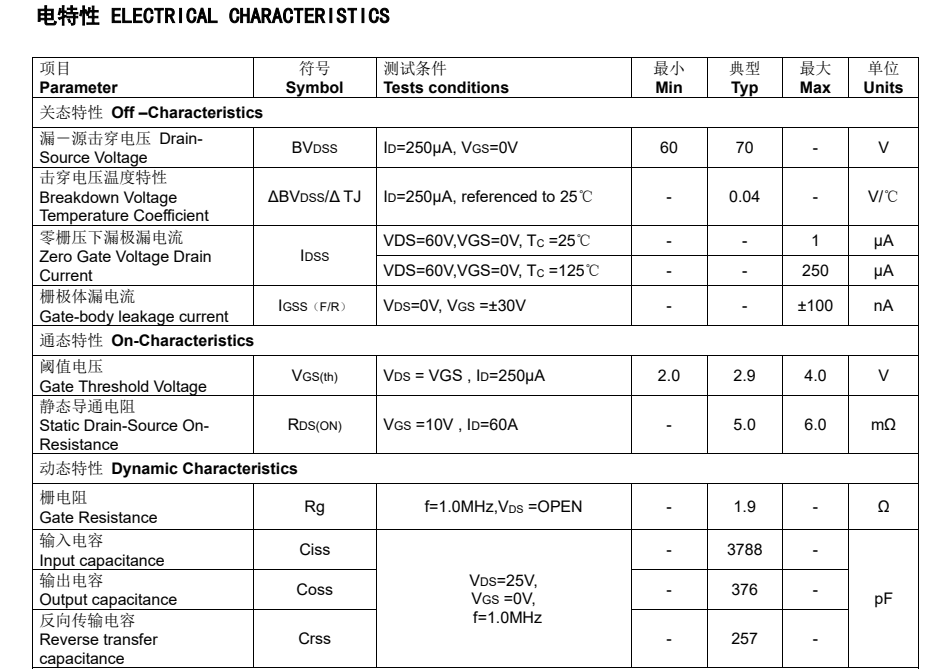

II. Competitor Parameter Comparison

1. Compared with HY1906 field-effect transistors: Further optimized to make FHP1906V have lower on-resistance.

2. Compared with IRFB7545PbF field-effect transistors: Provides higher cost-effective domestic replacement products for engineers.

3. Compared with our previous generation FHP1906A, it further reduces Qg, reduces loss, improves the quality factor FOM(RDSON*Qg), and has better performance.

III. Recommended Application Range

1. Synchronous rectification

2. 24-36V BLDC motor driver controller

3. DC/DC push-pull topology boost circuit in automotive high-frequency inverters with 12V battery input

4. DC/DC push-pull topology boost circuit in inverter modules of outdoor energy storage power supplies paired with 5-series lithium iron phosphate battery packs

5. Suitable for full-bridge topology applications, such as UPS paired with 12V/24V batteries, suitable for SOHO small office and home office UPS power equipment

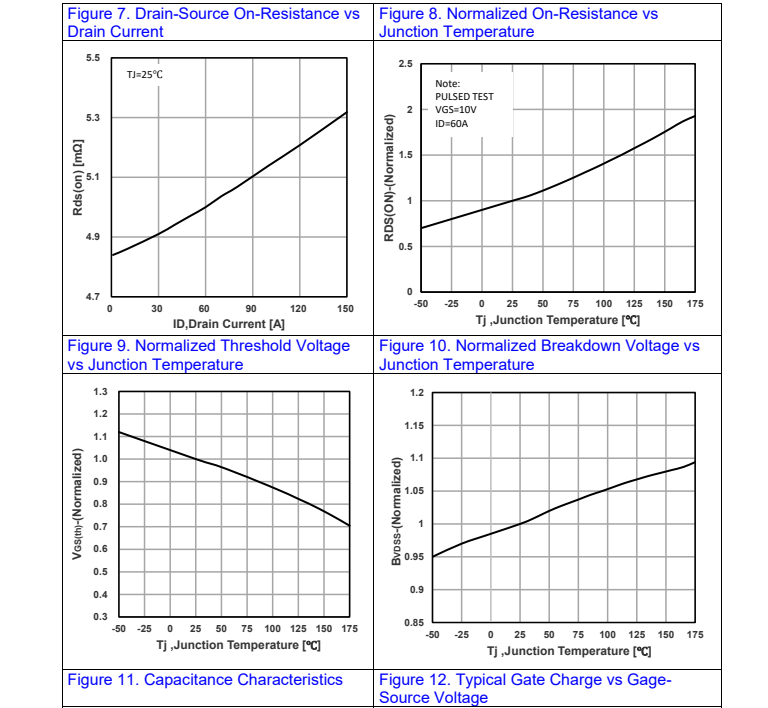

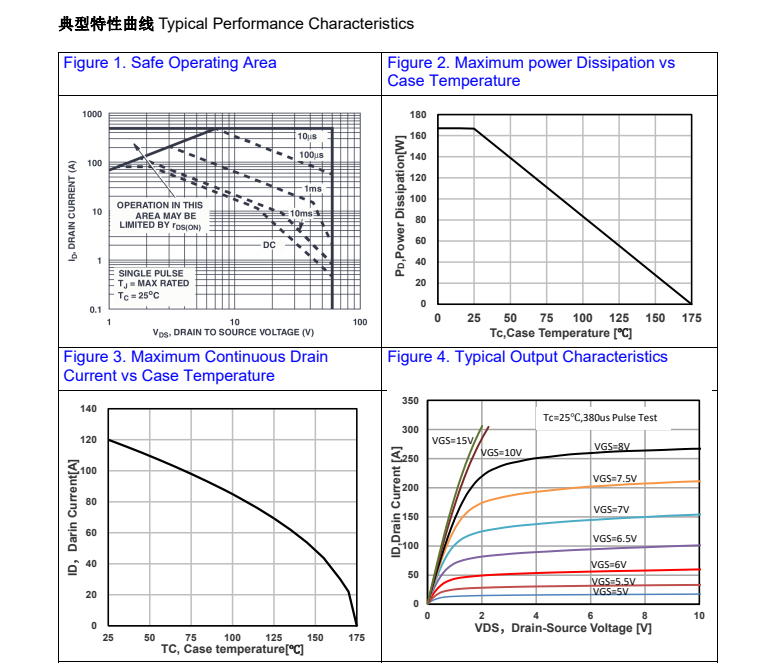

IV. Some Typical Characteristic Curves

Domestic MOSFETs have gradually become part of electronic engineers' daily work. How to select high-quality replacement models is a key topic. The release of the new FHP1906V product provides electronic manufacturers with options for lower on-resistance products and higher cost-effective field-effect transistors.

Feihong Semiconductor is committed to the research, production, and sales of high-power discrete devices, integrated circuits, and power semiconductors, providing manufacturers with sustainable stable supply. With 35 years of semiconductor industry experience and 20 years of R&D and manufacturing experience, free sample trials are available, and custom MOSFET products can also be provided according to customer needs.
