When you are developing a stepper motor controller, do you often face the following confusions: how to select field effect transistors for the stepper motor driver? Are there good domestic MOS tube alternatives available on the current market? Will the wrong choice result in poor quality products? If you have these concerns, don't worry, Feihong Semiconductor will provide answers and high-quality products for you.

Firstly, understand the basic knowledge of stepper motors and their drivers.

What is a stepper motor?

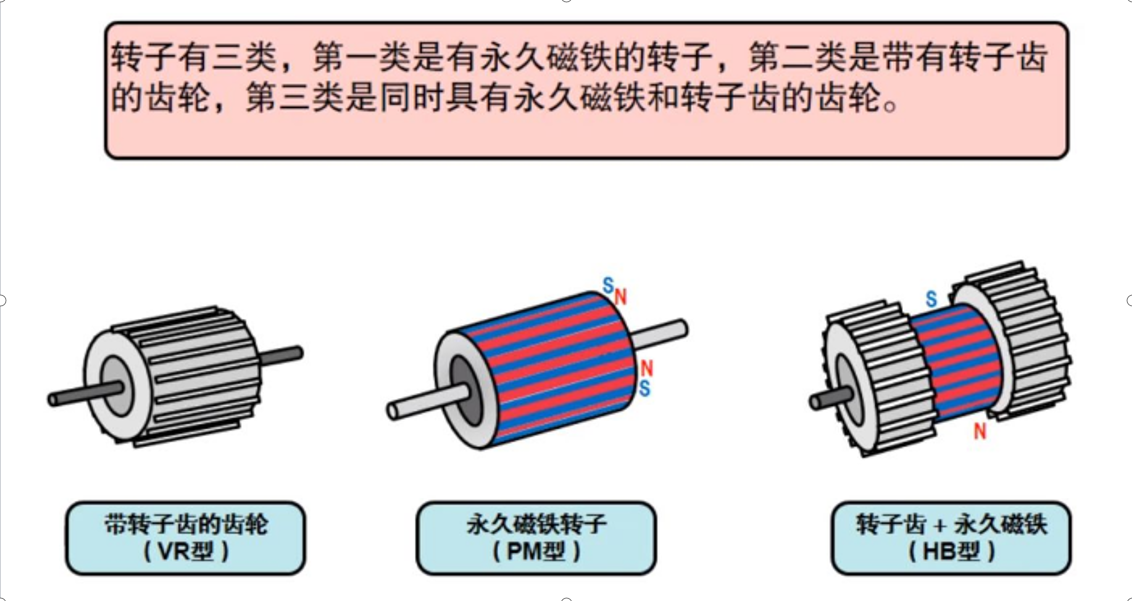

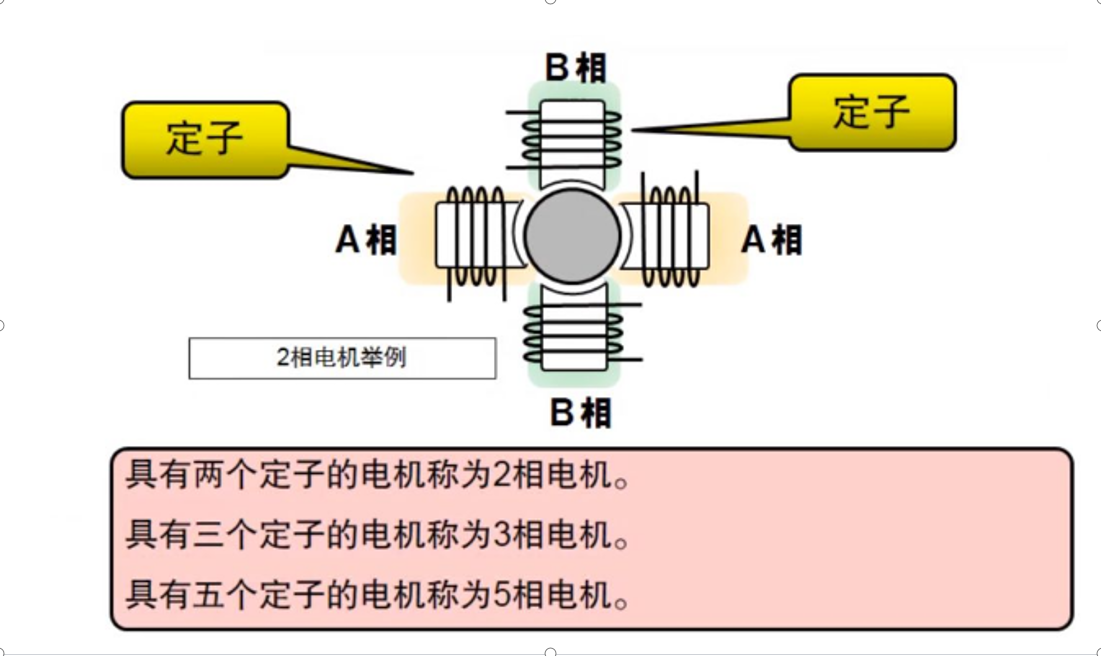

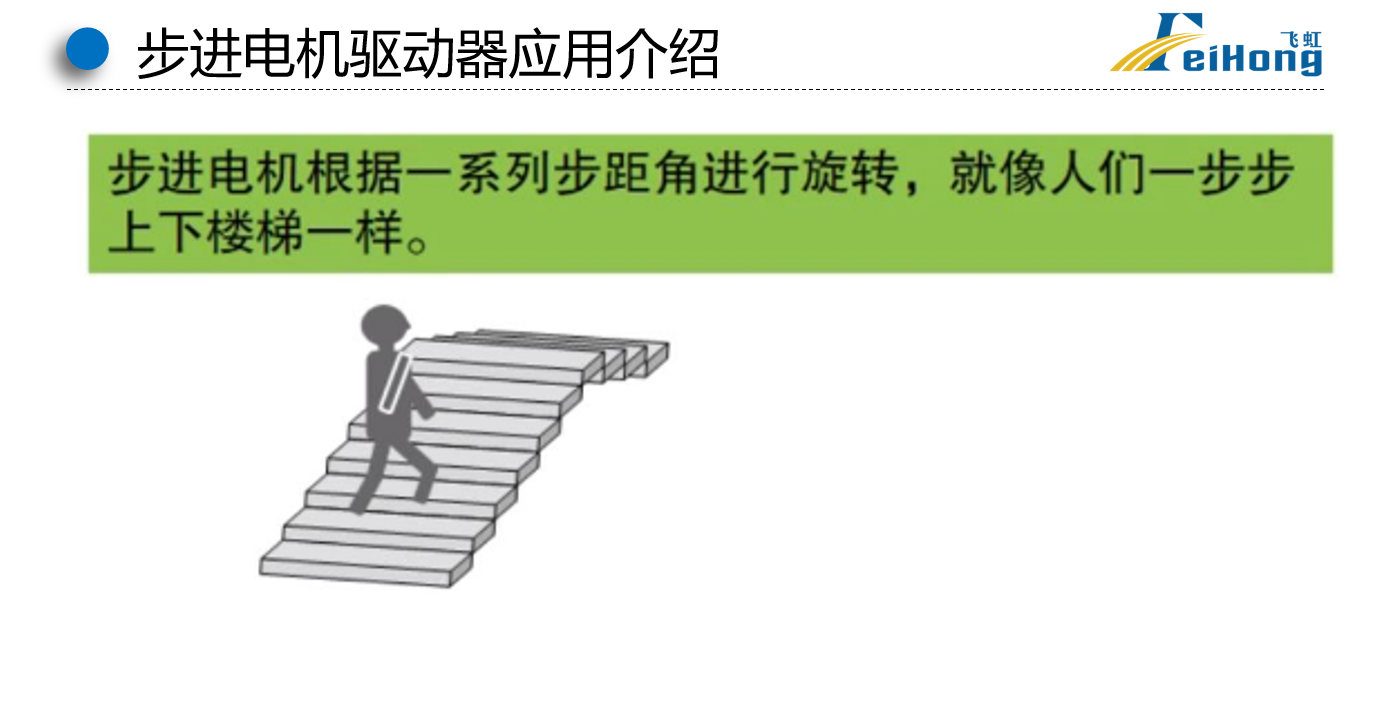

A stepper motor is an electric motor that converts electrical pulse signals into corresponding angular or linear displacement. For every input pulse signal, the rotor rotates by a certain angle or moves forward one step. The output angular or linear displacement is proportional to the number of input pulses, and the rotational speed is proportional to the pulse frequency. Therefore, a stepper motor is also called a pulse motor. It can be classified into reactive, permanent magnet, and hybrid types based on the rotor, each with its unique advantages and disadvantages.

What is a stepper motor driver?

A stepper motor driver is a power amplifier that drives the stepper motor to operate. It receives control signals from the controller (such as PLC or microcontroller) and controls the stepper motor to rotate by a corresponding angle or number of steps. The driver mainly consists of two parts: the ring distributor and the power amplifier. The MOS transistor is usually in an H-bridge structure (four MOS or double the quantity), ensuring the effective operation of the stepper motor.

Secondly, the pain points in selecting stepper motor drivers.

In the process of developing a stepper motor controller, you may encounter the following pain points:

Uncertainty about how to select the model: There are many options on the market, from reactive, permanent magnet to hybrid motors, choosing the right driver can be headache-inducing.

Worrying about the quality of domestic alternatives: Most researchers are accustomed to choosing imported field effect transistors (MOS tubes), even if they are expensive, they dare not easily try domestic alternatives.

Fear of selecting poor quality products: In fierce market competition, a minor error in selection can lead to project failure and increased costs.

Thirdly, Feihong Semiconductor's solutions.

1. Introduction to Feihong Semiconductor

Feihong Semiconductor, as one of the key packaging bases for domestic high-power MOS transistors, has been operating in Guangzhou with integrity for over 20 years. It boasts strong technical expertise and innovation capabilities. Feihong's products are widely used in various fields such as stepper motor industry, electric vehicle industry, audio equipment, home appliances, LED lighting, etc., with an annual production capacity of hundreds of millions of units. With several national-level science and technology honors and cooperation with South China University of Technology for industry-university-research integration, Feihong's product quality is outstanding and comparable to international standards.

2. Professional recommendations for stepper motor driver field effect transistors

Based on years of market experience and technical accumulation, Feihong Semiconductor recommends several excellent MOS tube products to engineers worldwide, aiming to replace imported products, reduce R&D costs, and enhance product performance.

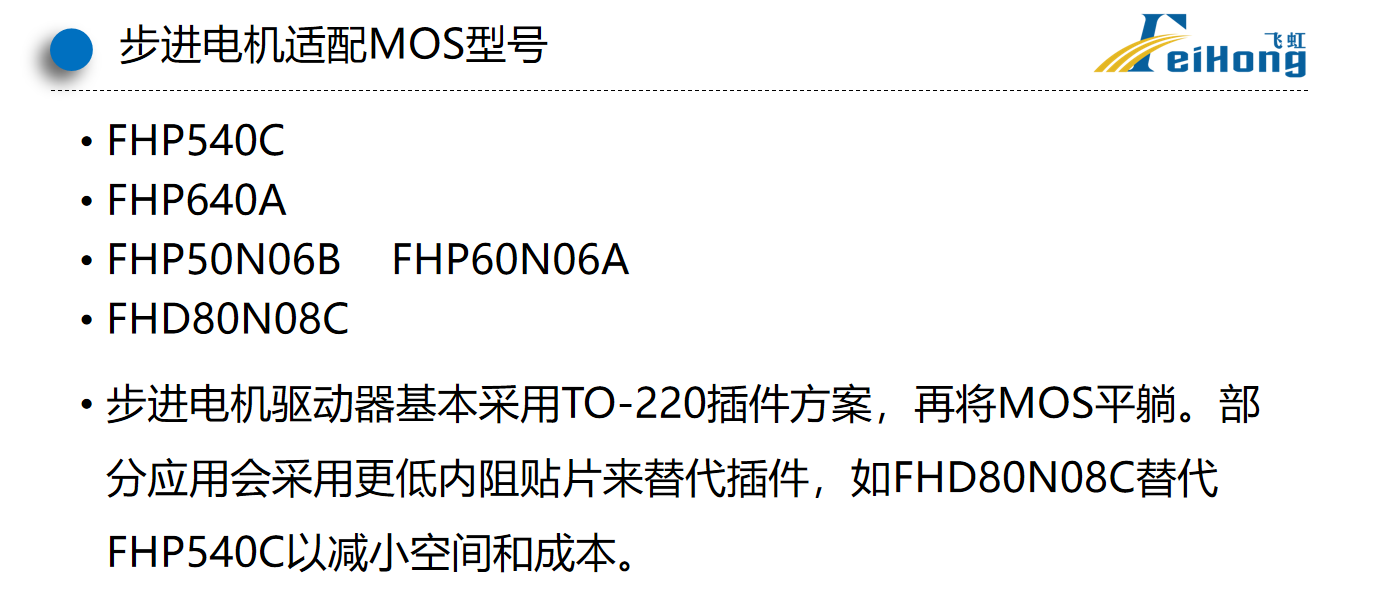

FHP540C: Package: TO-220, Vgs (±V): 30, VTH (V): 2～4, ID(A): 33, BVdss(V): 100

FHP640A: Package: TO-220, Vgs (±V): 30, VTH (V): 2～4, ID(A): 18, BVdss(V): 200

FHP50N06B: Package: TO-220, Vgs (±V): 20, VTH (V): 2～4, ID(A): 75, BVdss(V): 60

FHP60N06A: Package: TO-220, Vgs (±V): 20, VTH (V): 2～4, ID(A): 60, BVdss(V): 60

FHD80N08C: Package: TO-252, Vgs (±V): 20, VTH (V): 2～4, ID(A): 80, BVdss(V): 80

Why choose Feihong Semiconductor?

Strong technical strength: Feihong has rich technical experience and 15 patents, and is a National High-tech Industrial Demonstration Project.

High-quality product guarantee: The company's main power MOSFET products have been recognized by Guangdong Province as high-tech products, ensuring quality.

Efficient service: Feihong adheres to the business philosophy of integrity and innovation, providing high-quality products and thoughtful services to partners, helping customers achieve greater value.

The domestic market is rapidly iterating, and imported field effect transistors are no longer the only choice for stepper motor drivers. Feihong Semiconductor's MOS tubes have been widely applied in solar energy, power supply circuits, smart homes, new energy electronics industries such as automotive electronics, electric bicycles, chargers, computer power supplies, etc., providing high-quality products and supporting services for domestic electronic product manufacturers. In addition to offering free samples, we can also customize MOS tube products according to customer needs. Simply search "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
