Industrial power supplies using PFC circuits can comprehensively improve the performance of industrial power supplies from dimensions such as improving power factor, reducing harmonic interference, and lowering equipment heating.

How to choose a pure domestic field-effect transistor model that can replace the IXFH24N90P parameter model in the complicated electronic component market?

In the era of supporting localization, it is recommended to directly use the FHA24N90A field-effect transistor to replace the IXFH24N90P model field-effect transistor for the development of PFC circuits in industrial power supplies.

The main reason is that currently in the domestic market, the FHA24N90A model field-effect transistor can be perfectly used in the PFC circuit of industrial power supplies, which has been recognized by many power supply manufacturers. In addition to the basic parameters of 24A and 900V, it also has excellent product characteristics:

1. Low on-resistance

2. High dv/dt tolerance capability

3. 100% EAS test (strong impact resistance)

4. 100% DVDS thermal resistance test (good heat dissipation performance)

5. 100% Rg test

6. Low Crss (typical value 51 pF)

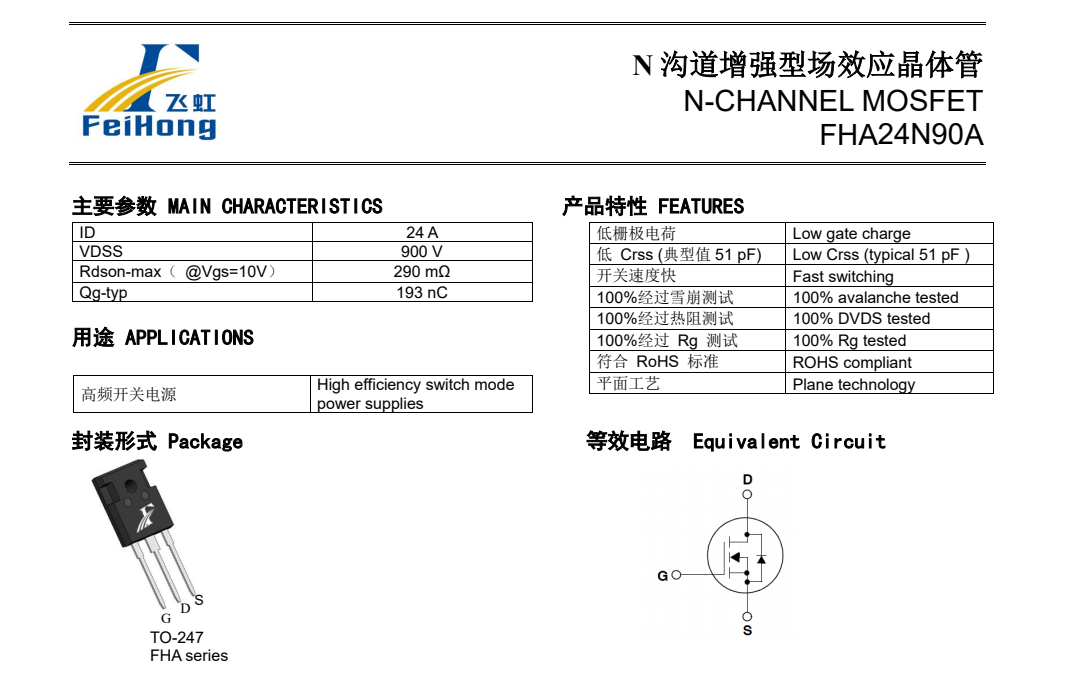

Of course, in addition to the excellent features of the product, the FHA24N90A can replace the IXFH24N90P high-voltage MOS tube model because it also has excellent parameters:

1. Maximum pulse drain current (IDM): 96A

2. N-channel enhancement-mode field-effect transistor

3. Maximum gate-source voltage Vgs (±V): 30; VGS(th): 2.0-4.0V;

4. ID(A): 24A; BVdss(V): 900V

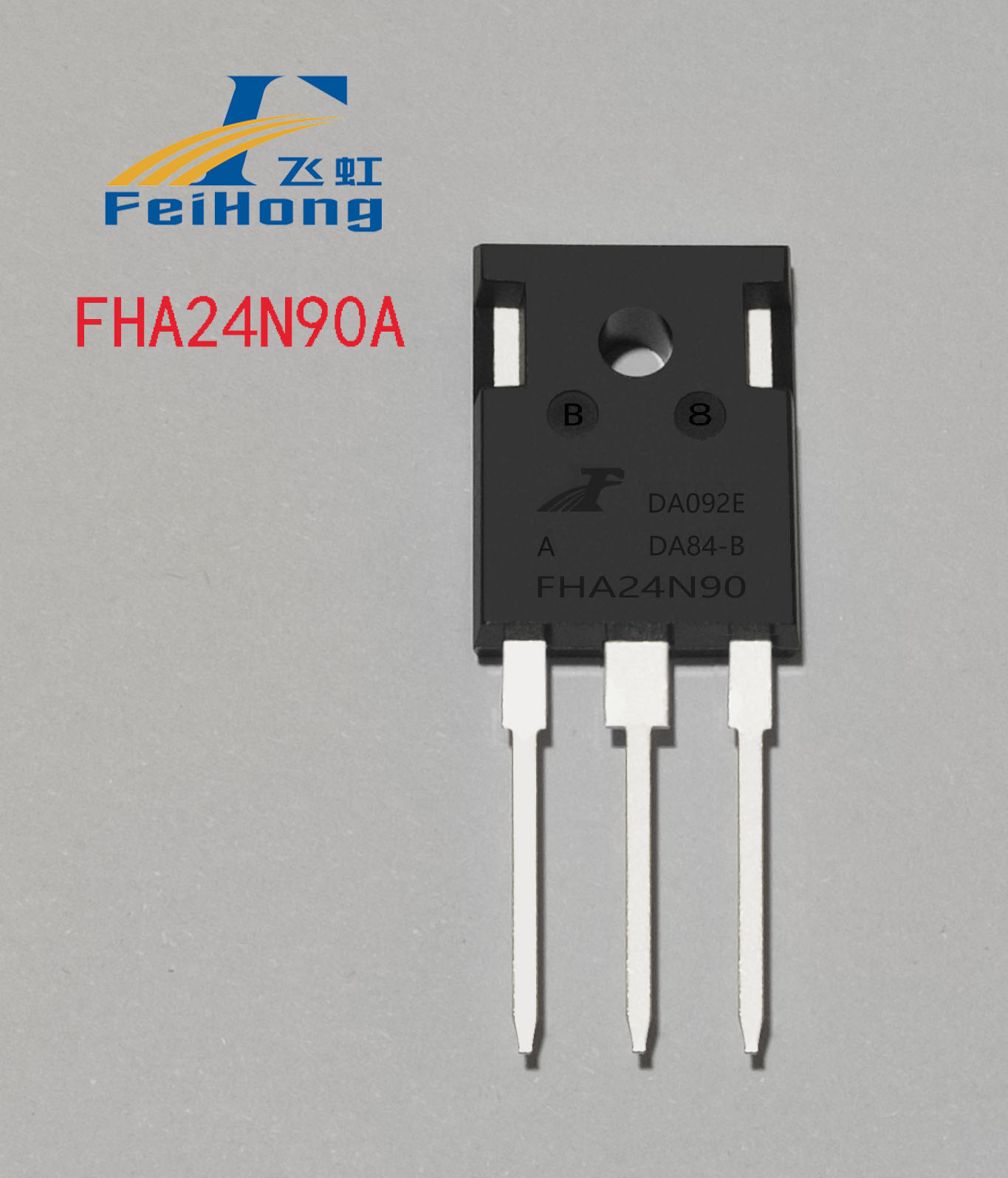

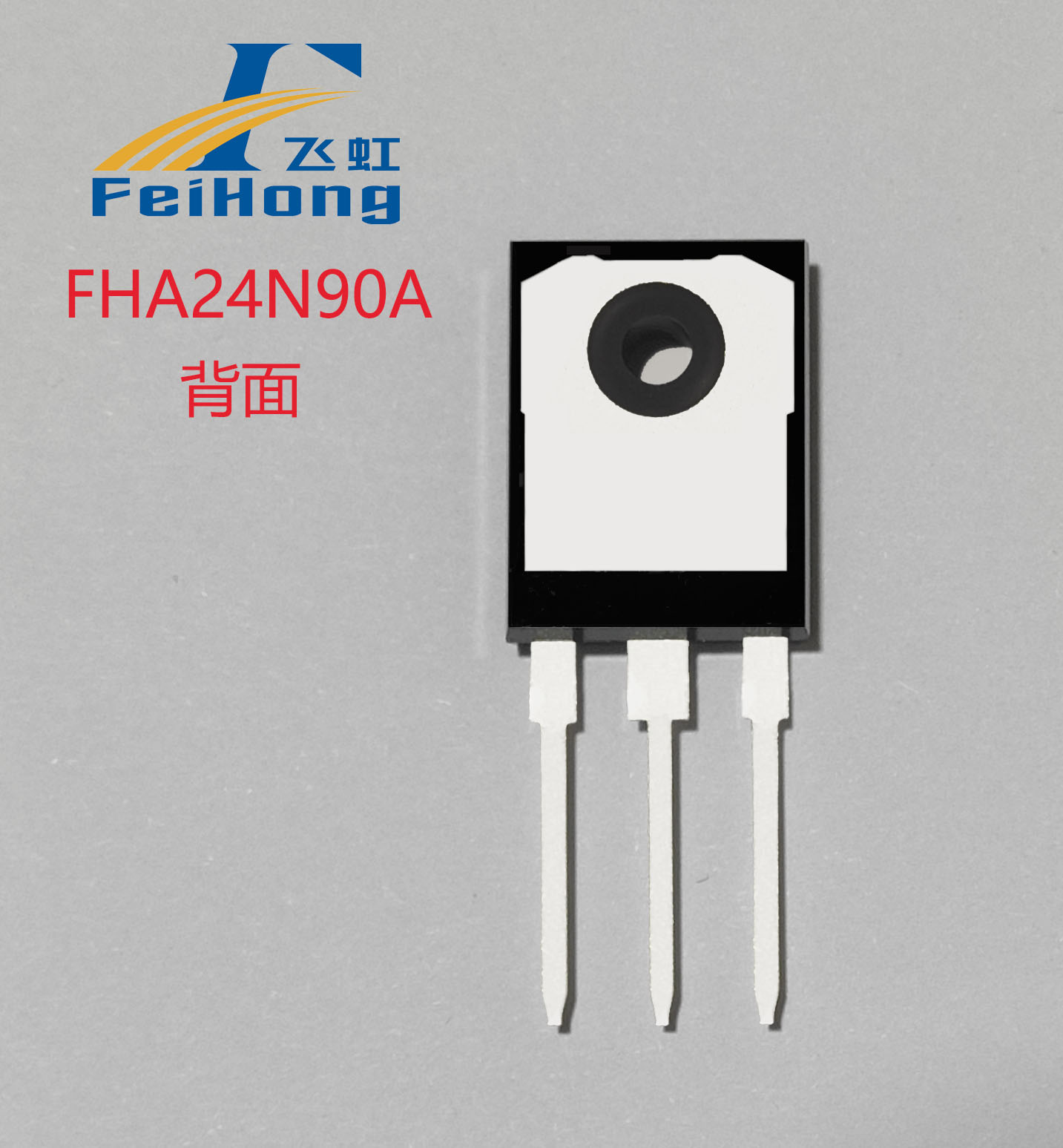

5. TO-247 packaged product

6. Reverse transfer capacitance: 51pF

7. Static on-resistance RDS(ON): 290mΩ(Typ), 350mΩ(Max) (Test conditions: VGS=10V, ID=12A)

For the upgrade of circuits in industrial power supply PFC circuits, it is recommended to select the FHA24N90A field-effect transistor for application.

Feihong Semiconductor provides professional products for electronic manufacturers and one-stop service for power device matching, always starting from user needs.

Its good manufacturing process and parameter performance provide better compatibility for industrial power supply PFC circuits and ensure product reliability.

With the rapid iteration of the domestic market and improvement in product quality, choosing the right model is very important. Feihong Semiconductor's MOS transistors have been widely applied in power circuits, smart home appliances, new energy electronics fields: such as smart speakers, household appliances, LED lighting, automotive electronics, electric vehicles, chargers, computer power supplies, and other industries, providing high-quality products and supporting services for domestic electronic product manufacturers. In addition to providing free samples, they can also customize MOS transistor products according to customer needs. Just search "Feihong Semiconductor" on Baidu to find us, and the free sample hotline is 400-831-6077.
