Application Solution of MOS Tube in Solar Controller: 110N8F5B Low and Medium Voltage Field Effect Transistor is More Reliable!

According to the research report "Global and Chinese Global Photovoltaic Power Generation Market: Growth Trend, Competitive Landscape and Prospects", by 2023, its market size will reach $189.29 billion, which means that it will become a market scale exceeding RMB 1 trillion.

The cost and quality of the industry are developing rapidly. How can one further gain an advantage in market competition? Choosing the right core partner for semiconductors is very important. After all, products like MOS transistors, diodes, bipolar junction transistors, IGBTs, etc., are commonly used in product circuits.

For manufacturers of controllers in the solar energy market, today's engineers from Feihong Semiconductor suggest using 110N8F5B to replace SVG095R0NT and IPP052N08N5 models of field effect transistors with parameter specifications.

Why choose 110N8F5B to replace SVG095R0NT and IPP052N08N5 field effect transistors? This is because this MOS transistor, with its TO-220 package, has been widely used in various solar controllers and recognized by controller manufacturers. Moreover, its voltage of 85V and current of 147A are also very suitable for use in solar controllers.

Let's review the specific product parameters:

With a current of 147A and voltage of 85V, RDS(on) = 4.4mΩ(MAX) @VGS = 10V, RDS(on) = 5.5mΩ(TYP) @VGS = 10V, and maximum gate-source voltage @VGS = ±20V.

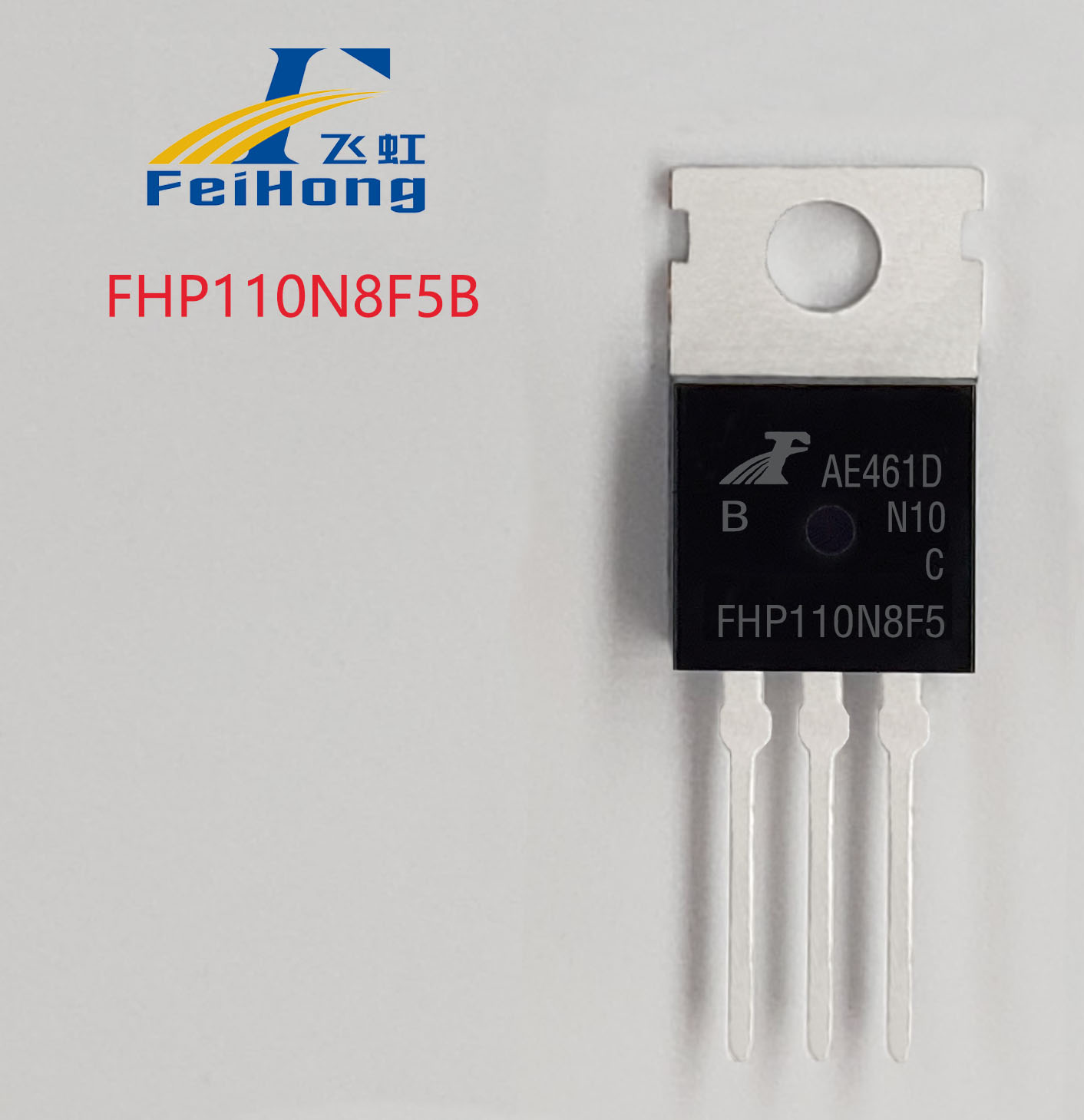

110N8F5B is an N-channel enhancement mode field effect transistor, and its TO-220 package size is suitable for the circuit.

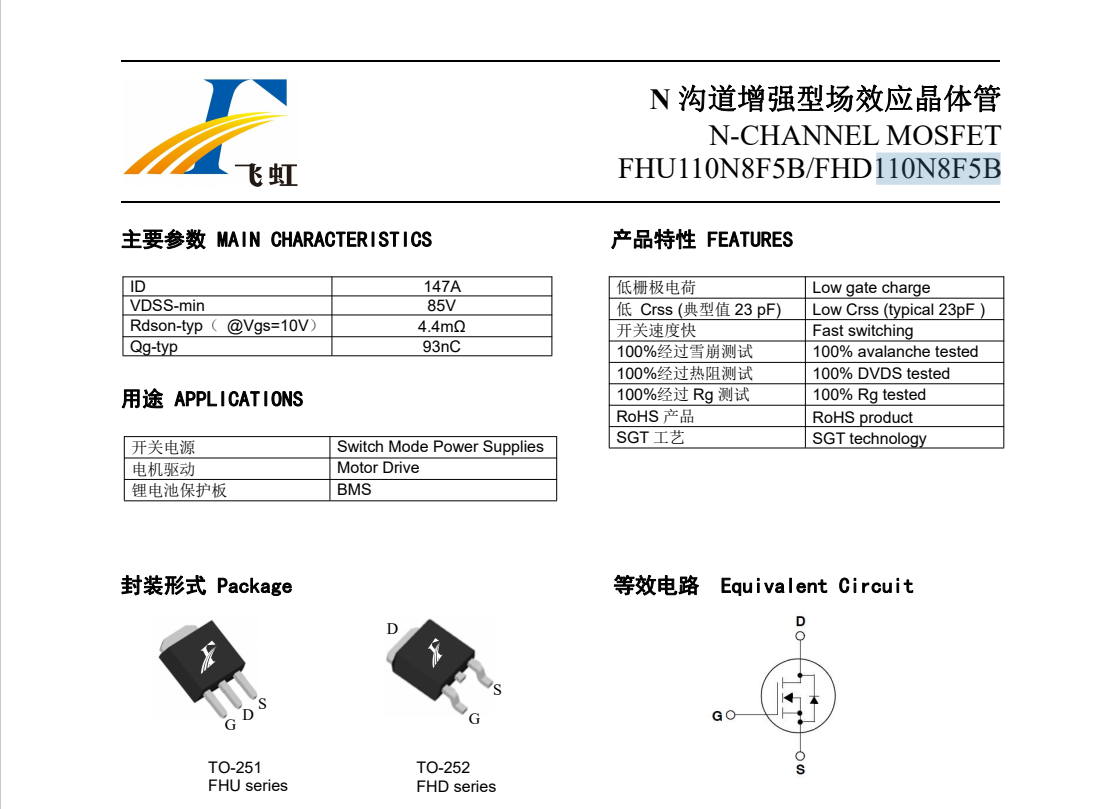

This product has specific parameter values: Vgs (±V): 20; VGS(th): 2.0-4.0V; ID (A): 147A; BVdss (V): 85V.

Maximum pulse drain current (IDM): 480(A), reverse transfer capacitance: 23pF.

Due to the above parameters of this MOS transistor, it enables fast switching speed and low on-resistance, thus reducing energy loss and further improving the efficiency of the solar controller.

If you need to select a powerful electronic component supply manufacturer to ensure it, we recommend understanding the domestic model from Feihong: 110N8F5B parameters to replace SVG095R0NT and IPP052N08N5 models for application.

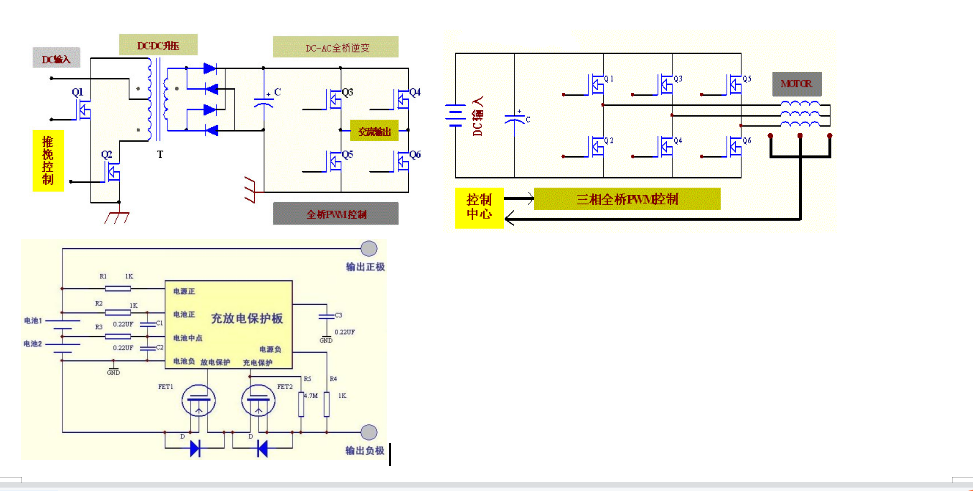

Replacing with a 147A, 85V MOS transistor, choosing the right model parameters makes the enterprise product power up. Feihong has obtained 15 utility patents and inventions and collaborates with Sun Yat-sen University and the Chinese Academy of Sciences to develop GaN devices. Feihong products have been widely applied in solar controllers, various DC/DC power supplies, energy storage power supplies, DC-AC inverters, AC-DC switch power supplies, garden tools, and BLDC motor drivers, helping partners solve domestic high-quality products that meet national conditions and international quality standards. In addition to providing free samples, we can also customize MOS tube products according to customer needs. Just search for "Feihong Semiconductor" on Baidu to find us, and our free sample hotline is 400-831-6077.
