The transition from oil to electricity is the main topic of this year's forklift industry, and also the starting point for opportunities for electric forklift manufacturers. For electric forklift manufacturers, choosing a controller with high-quality MOSFETs is very important. After all, control is definitely one of the core functions that electric forklifts focus on.

As mentioned above, the controller is our key focus, and the MOSFET within it directly affects the performance of the controller. After all, the MOSFET is one of the core electronic components in an electric vehicle controller.

In the controller industry, what are the domestically available high-quality MOSFETs that can be used in electric forklift controllers? In addition to the IPT020N10N5 parameter model in the market, we recommend selecting the FHL300N1F2A field-effect transistor model from Fei Hong Semiconductor.

Why do we recommend using this product for electric forklift controllers? Because the FHL300N1F2A field-effect transistor has the following characteristics:

1. Industrial grade, more reliable performance

2. 100% DVDS thermal resistance test (lower thermal resistance, better temperature rise performance)

3. 100% EAS test

4. 100% Rg test

5. Small package inductance, excellent EMI characteristics and reliability.

6. Low on-resistance: supports smaller impedance and larger peak current.

From the above characteristics, it can be seen that this industrial-grade FHL300N1F2A field-effect transistor with 300A current, 100V voltage is very suitable for use in the controller circuit of electric forklifts.

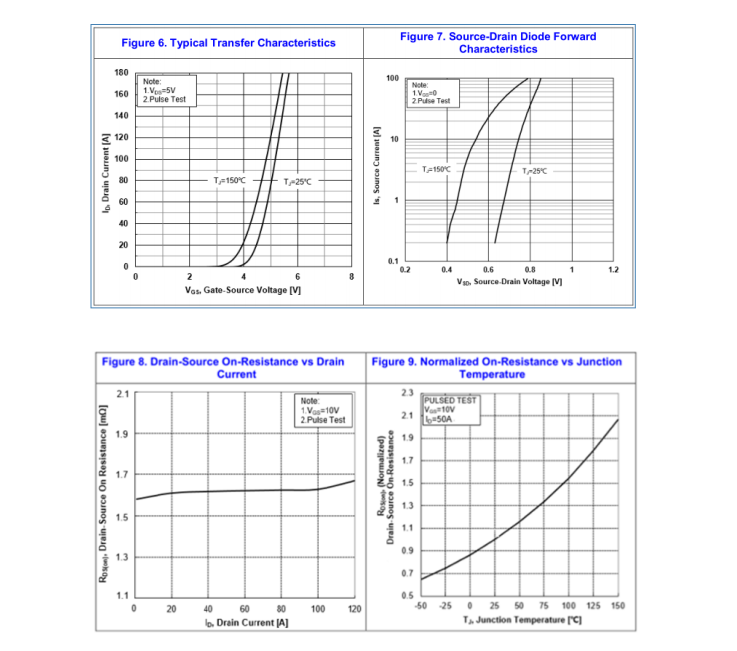

Of course, in the application of controller circuits, our power engineers must understand the detailed parameters of this high-quality FHL300N1F2A domestic field-effect transistor: it has a current and voltage of 300A and 100V respectively, RDS(on) = 2.0mΩ(MAX) @VGS = 10 V, RDS(on) =1.6mΩ(TYP) @VGS = 10 V, and the maximum gate-source voltage @VGS =±20 V.

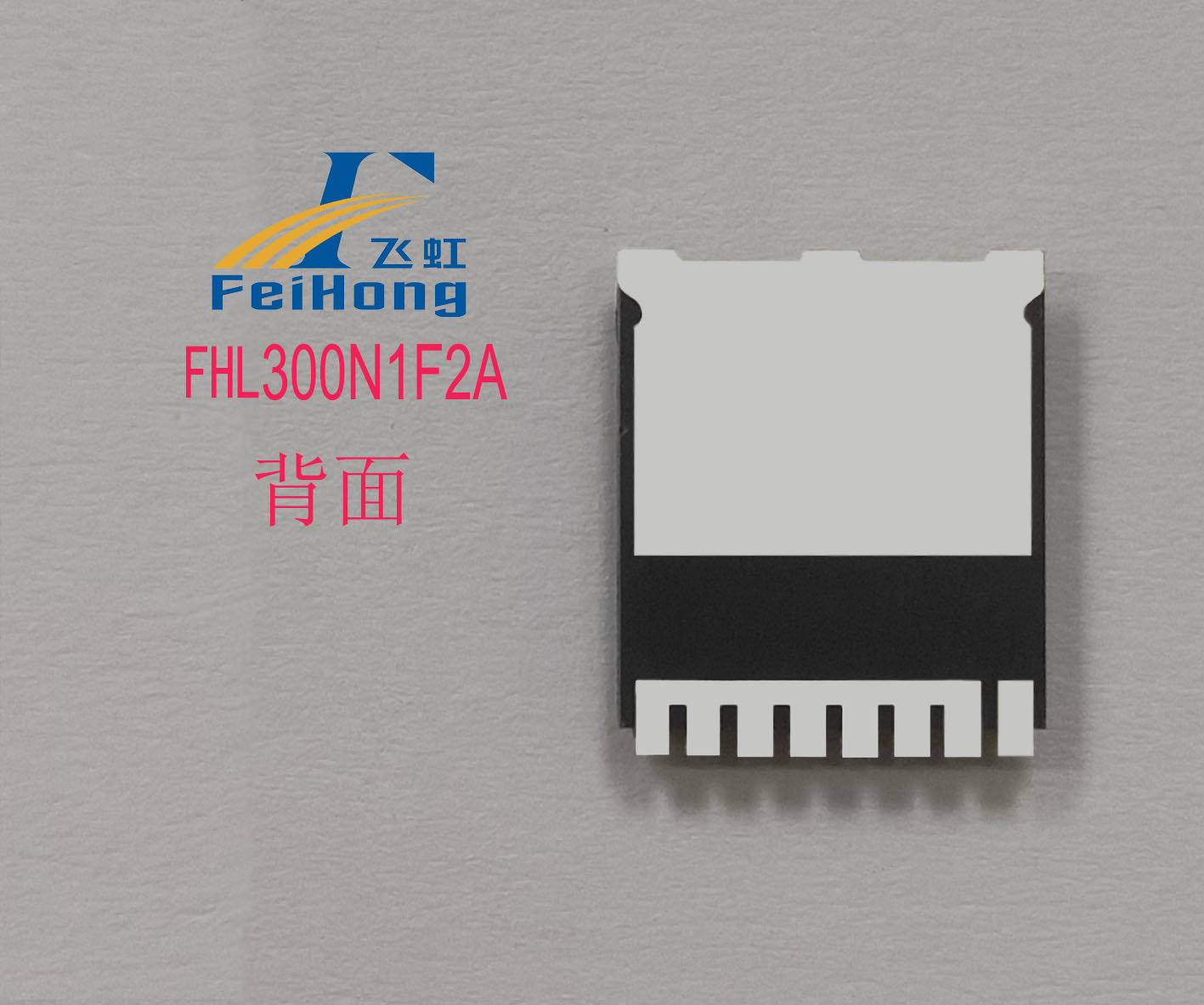

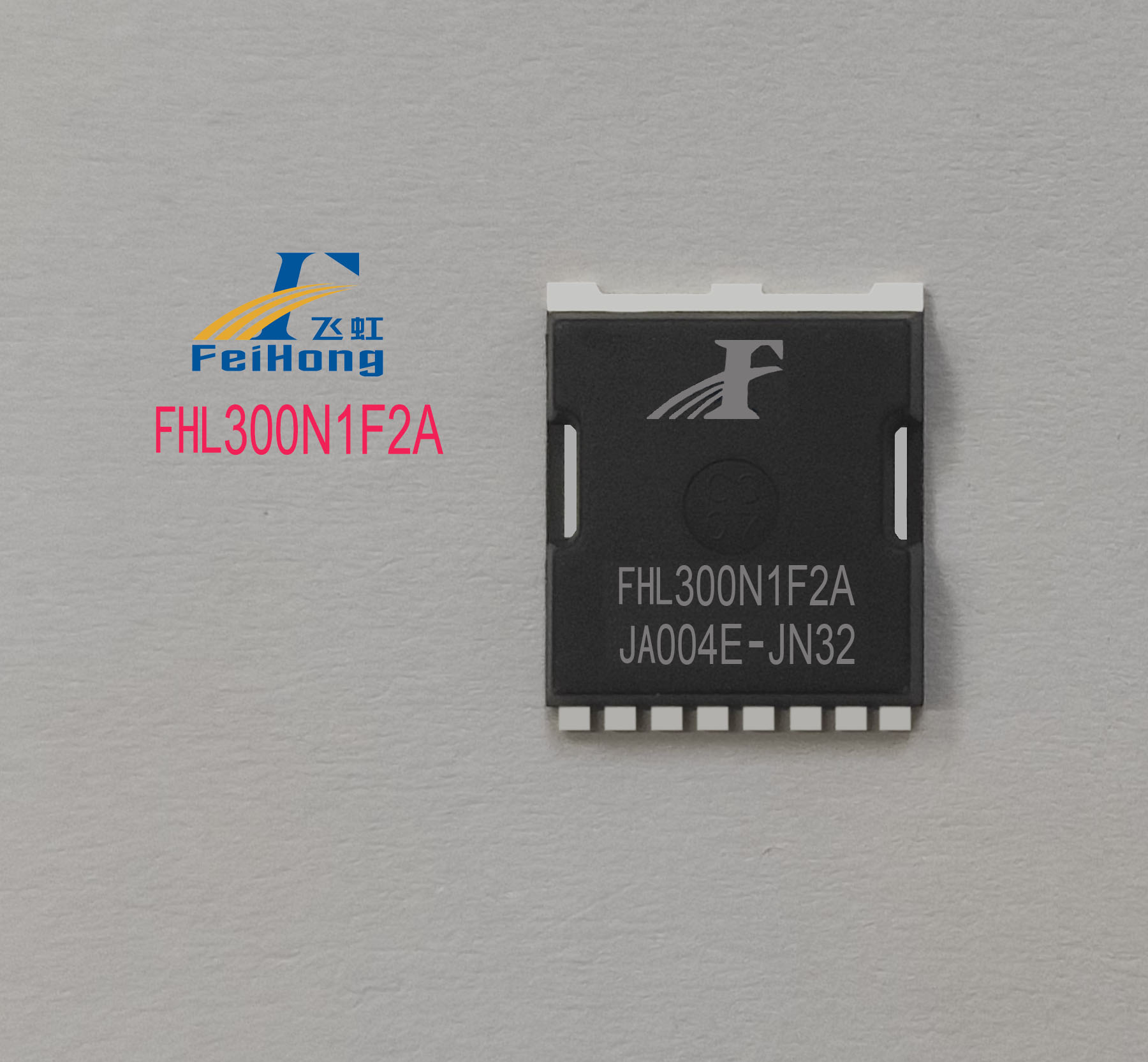

FHL300N1F2A is an N-channel enhancement-mode field-effect transistor. The FHL series adopts the TOLL-8L package shape, which features low package resistance, low thermal resistance, low parasitic inductance, and small size.

This product also has specific parameter values: Vgs(±V): 20; VGS(th): 2.0-4.0V; ID(A): 300A; BVdss(V): 100V.

Static on-resistance (typ): 1.6mΩ, maximum pulse drain current (IDM): 1200(A), reverse transfer capacitance: 328pF.

The oil-to-electric conversion in forklifts involves many industries such as papermaking, metal manufacturing, textiles, and woodworking, indicating a broader market. How to gain a competitive advantage in the fiercely competitive electric forklift market? The key lies in seeking high-quality FHL300N1F2A field-effect transistors to replace the IPT020N10N5 parameter model for the controller circuit of electric forklifts.

The replacement of 100V, 300A MOSFETs is important. Choosing the right model is crucial. Fei Hong Semiconductor's MOSFETs are not only widely used in electric forklifts but also in new energy vehicles, audio amplifiers, UPS and other terminal applications. They provide high-quality products and services to domestic electronics manufacturers. Besides offering free samples, they can also customize MOSFET products according to customer needs. Just search "Fei Hong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
