For the circuit design of products with a 12V input, a higher voltage safety factor is required. This domestically produced MOS tube newly launched to the market in 2025 solves the aforementioned problems with its parameter performance of BVDSS_typ=55V.

Its innovative design is based on an existing mature product system, allowing it to be stably and reliably applied in various 12V input inverters and 12V input audio power supplies.

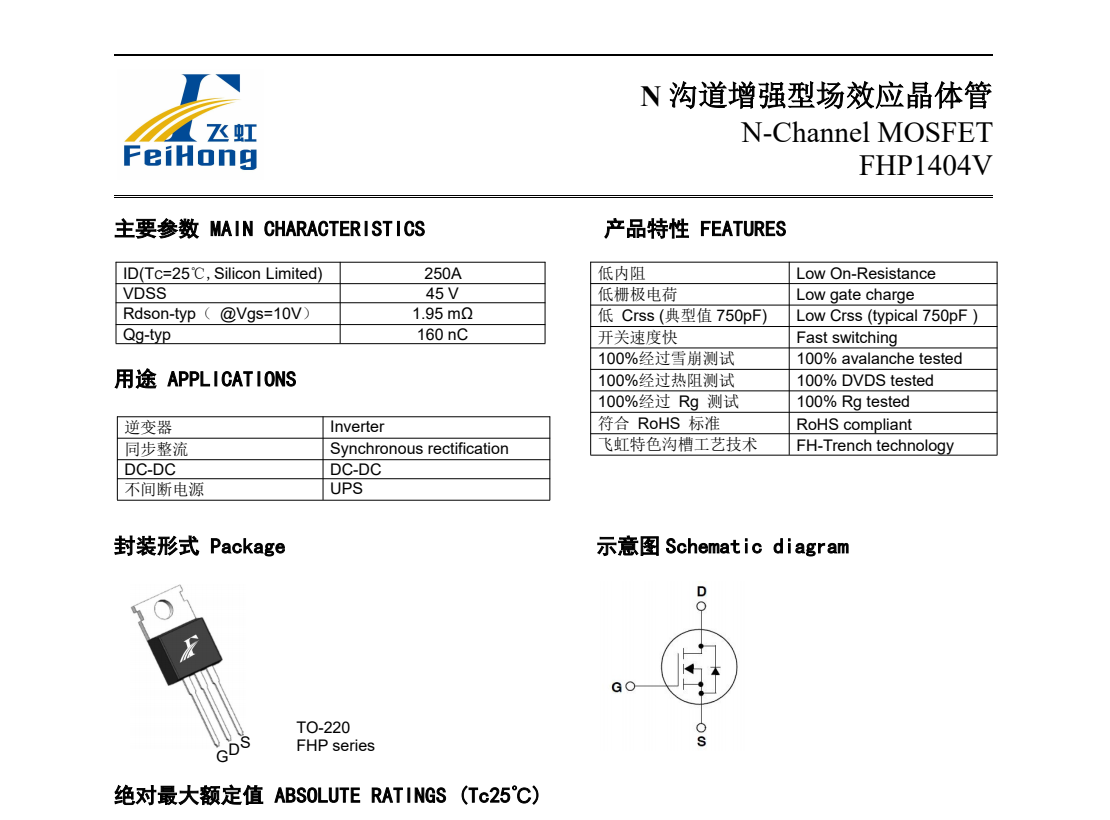

This is the FHP1404V MOS tube, the first product launched by Hong Semiconductor. It has the above-mentioned characteristics and also features extremely low on-resistance, enabling seamless replacement of CS1404, IRF1404PbF, HY4004, FTP1404 field effect transistors.

As an N-channel enhancement-mode field-effect transistor, FHP1404V adopts advanced trench technology, reducing conduction losses, improving switching performance, and increasing avalanche energy.

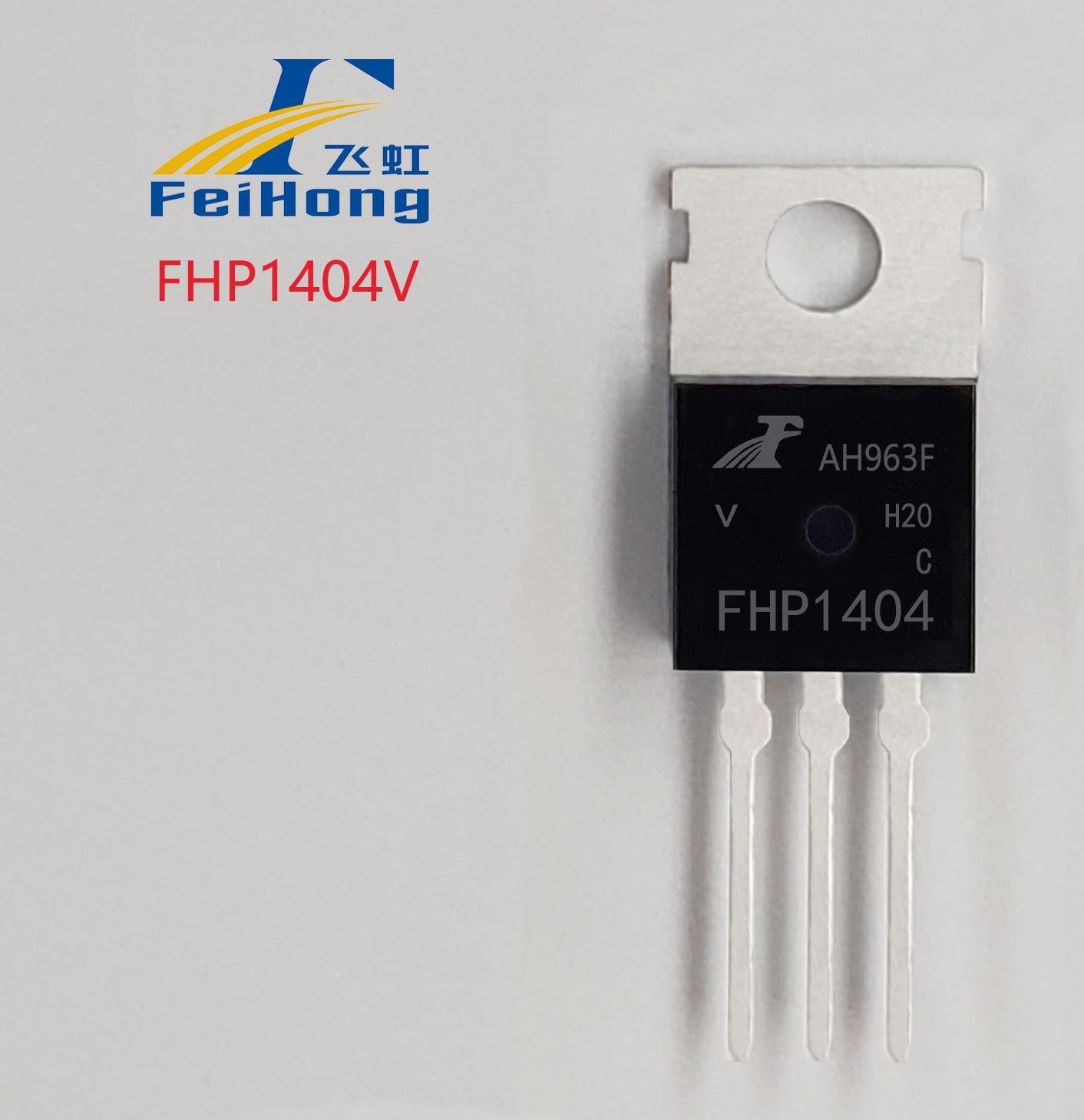

This transistor can be used in various power switch circuits. Its product form is TO-220 packaging, complying with the JEDEC standard, and meets RoHS and REACH standards environmentally, as well as being halogen-free and eco-friendly.

The following will introduce FHP1404V field-effect transistor from aspects such as product features, comparison with competitors' parameters, recommended application scope, and some typical characteristic curves:

I. Product Features

(1) 100% Rg testing.

(2) 100% EAS testing.

(3) 100% DVDS instantaneous thermal resistance testing.

(4) Using refined Vth classification further improves product consistency.

(5) By adopting unique trench process, combined with excellent encapsulation BOM materials and production control, the product meets industrial-grade requirements.

(6) It has extremely low on-resistance RDS(on). The typical value of FHP1404V's on-resistance is 44% lower than that of IRF1404PbF. Lower conduction loss.

(7) High avalanche tolerance and strong impact resistance.

(8) FHP1404V has a higher voltage margin, with BVDSS_typ=55V, providing a higher voltage safety factor when dealing with 12V input voltage systems.

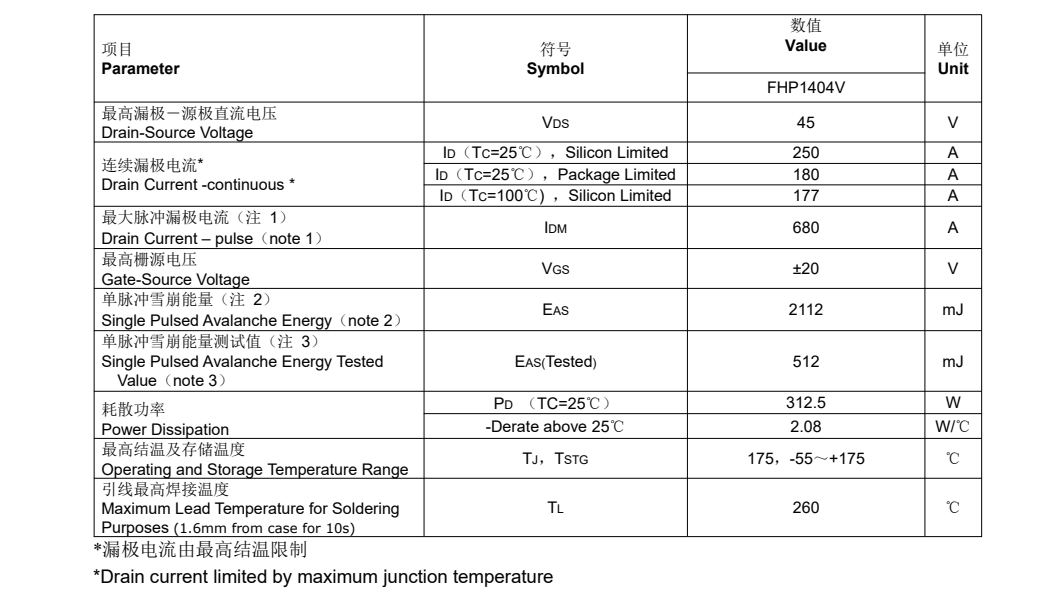

II. Comparison with Competitors' Parameters

(1) Compared to HY4004, it has lower on-resistance, reducing conduction losses while improving the quality factor FOM(RDSON*Qg), resulting in better performance.

(2) Compared to IRF1404PbF, it reduces conduction losses, has smaller gate charge (160nC vs 210nC), faster switching speed, and offers a more cost-effective domestic alternative product.

(3) Compared to CS1404 and FTP1404, it has better on-resistance, suitable for products that pursue ultimate efficiency and current capability.

III. Recommended Application Scope

(1) High-frequency inverter application: DC/DC push-pull topology boost circuit in 12V battery-powered vehicle high-frequency inverters.

(2) Suitable for solar off-grid inverters with full bridge topology at 12V.

(3) Suitable for DC-DC push-pull topology boost circuit in 12V input audio power supplies.

(4) Suitable for UPS uninterruptible power supply powered by 12V batteries.

(5) Suitable for synchronous rectification in high-power high-frequency switch power supplies.

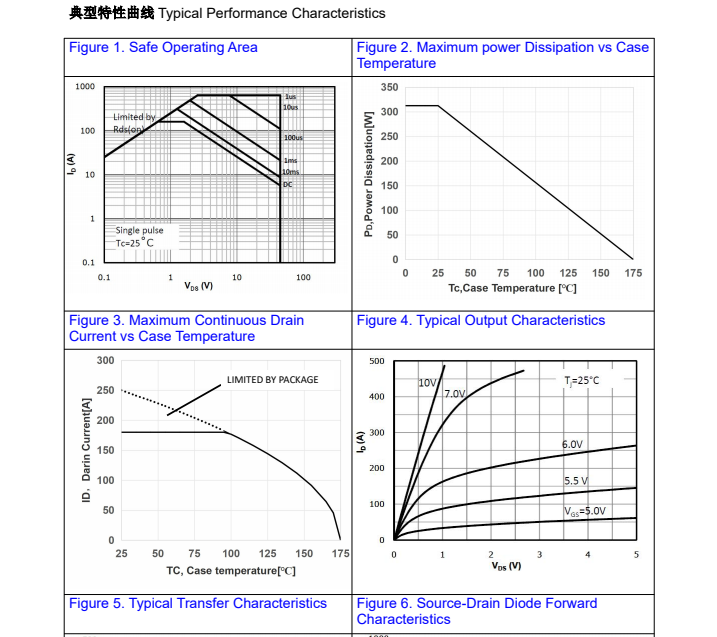

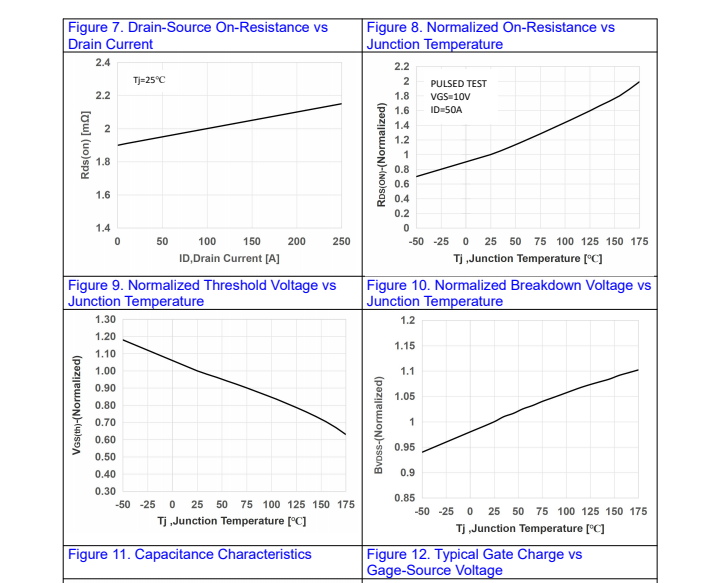

IV. Some Typical Characteristic Curves

For products frequently used in high-frequency inverters, UPS power supplies, synchronous rectifiers, and those requiring 12V input circuit design, it is recommended to take a closer look at this high-quality domestic MOS tube.

FHP1404V features ultra-low on-resistance, high current capability, and excellent thermal management, making it suitable for high-power density applications (such as high-current inverters and UPS). In the same field of products, it is suitable for circuit designs that pursue extreme efficiency and current capability.

Hong Semiconductor is dedicated to the research, production, and sales of power discrete devices, integrated circuits, and power semiconductors, providing sustainable stable supply to manufacturers. With 35 years of experience in the semiconductor industry and 20 years of R&D and manufacturing experience, we not only offer free samples but also customize MOS tube products according to customer needs.

Simply search for "Hong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
