Generally, industrial frequency inverters are selected to apply IGBT single tubes. However, for low-voltage industrial frequency inverters, choosing MOSFETs seems to be a more cost-effective option. After all, there are many mature MOSFET models in the market that can be directly used in the circuit of low-voltage industrial frequency inverters.

For example, currently common MOSFET models such as CS160N06, HY3906P, and IRFB7537PBF can be used in low-voltage industrial frequency inverters. But today, Feihong Semiconductor wants to recommend another pure domestic power MOSFET with low voltage endurance, high current, and low on-resistance.

It is the FHP230N06V MOSFET model, which can replace domestic MOSFET models such as CS160N06, HY3906P, and IRFB7537PBF for application in low-voltage industrial frequency inverters!

As an N-channel enhancement mode field-effect transistor, it features a current and voltage characteristic of 230A and 60V. Electrical engineers can not only apply it in low-voltage industrial frequency inverters but also use it in vehicle-mounted high-frequency inverters, outdoor energy storage power supplies, 24-36V BLDC motor drive controllers, 24V battery-powered UPS uninterruptible power supplies, and other application scenarios.

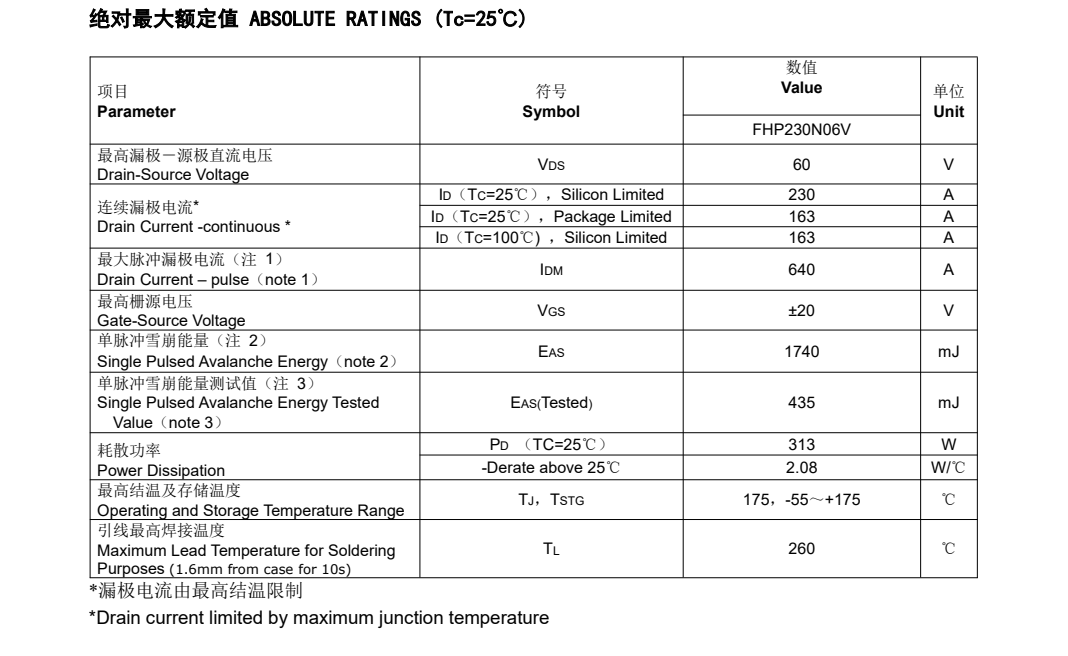

The specific parameters of this FHP230N06V field-effect transistor product are: Vgs(±V): 20; VTH(V): 3; ID(A): 230; BVdss(V): 60. RDS(on) = 2.5mΩ(typ)@VGS=10V, RDS(on) = 3.0mΩ(max)@VGS=10V.

The above parameters are what enable FHP230N06V to replace CS160N06 for use in low-voltage industrial frequency inverters to address conversion efficiency issues.

In addition, the main package form of FHP230N06V is TO-220 package, complying with JEDEC standards, and environmentally friendly, meeting RoHS and REACH standards, and halogen-free.

Adopting advanced trench technology, it reduces conduction losses, improves switching performance, and increases avalanche energy. This transistor can be used in various power switch circuits to achieve system miniaturization and high efficiency.

If introducing a 230A current and 60V voltage MOSFET, the pure domestic FHP230N06V model is highly recommended to replace CS160N06 for use in low-voltage industrial frequency inverters.

Using a 230A, 60V MOSFET for replacement, selecting the right model is very important for low-voltage industrial frequency inverters. Feihong Semiconductor's MOSFETs are not only widely used in low-voltage industrial frequency inverters but can also be applied in inverters, outdoor energy storage power supplies, motor drive controllers, and other end applications.

They provide quality products and supporting services to domestic electronic product manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Simply enter "Feihong Semiconductor" in Baidu to find us, and the free sample hotline is 400-831-6077.
