The MOS tube is used as the core power switch device in high-frequency inverters, especially in the automotive field where it efficiently and stably converts the DC power provided by the vehicle battery into high-frequency AC power for use by vehicle equipment.

Currently, models such as CS160N06, HY3906P, and IRFB7537PBF are commonly used in high-frequency inverters. Today, Feihong Semiconductor will introduce a 230A, 60V MOS tube product that can replace the aforementioned products and has high reliability.

The FHP230N06V MOS tube model. Why is it recommended? Because compared to CS160N06, it has lower on-resistance, reducing conduction losses and improving the quality factor FOM(RDSON*Qg), making its performance superior.

And compared to IRFB7537PbF, it is a cost-effective domestic alternative MOS tube suitable for selection by inverter engineers.

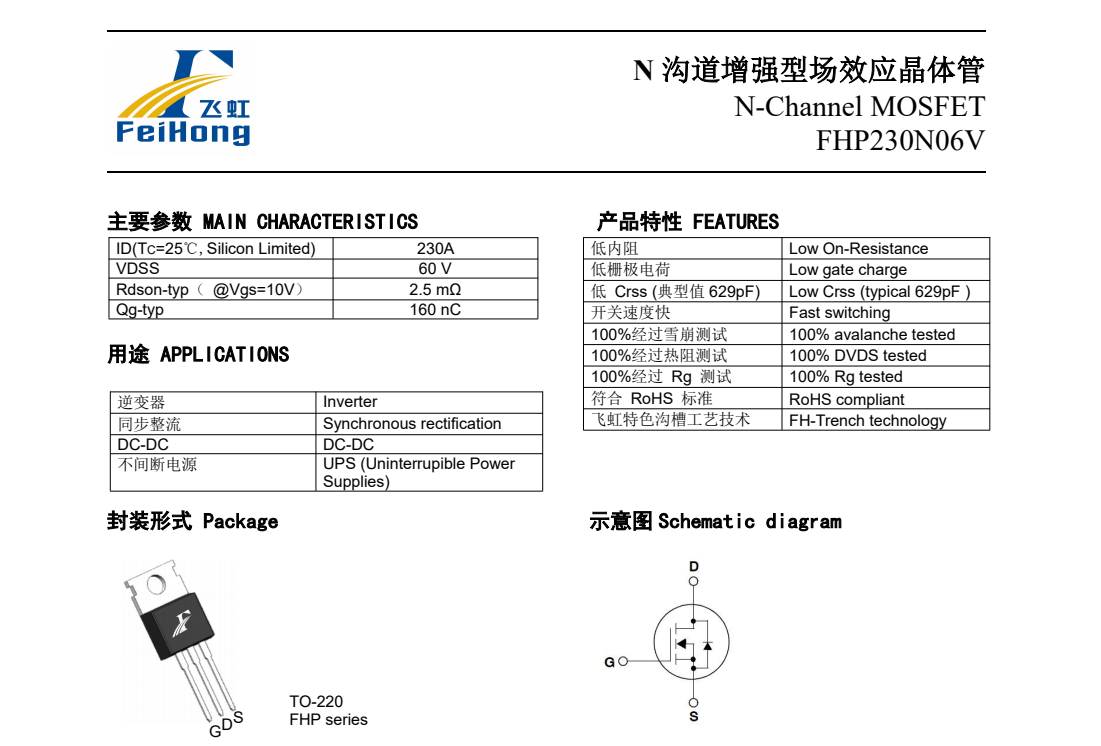

From the specific parameters of the FHP230N06V field-effect transistor product: Vgs(±V): 20; VTH(V): 3; ID(A): 230; BVdss(V): 60. RDS(on) = 2.5mΩ(typ)@VGS=10V, RDS(on) = 3.0mΩ(max)@VGS=10V.

The above parameters are suitable for use in the DC/DC push-pull topology boost circuit of a 12V battery input vehicle high-frequency inverter.

The FHP230N06V achieves high reliability and fast switching speed through its unique trench process combined with excellent BOM materials. This transistor can be used in various power switching circuits to achieve system miniaturization and high efficiency. The product is in TO-220 packaging, compliant with JEDEC standards, and environmentally friendly, meeting RoHS and REACH standards and being halogen-free.

It is precisely because of the characteristics of 230A and 60V that electronic engineers can effectively solve the MOS tube selection problem for high-frequency inverters.

In addition to parameter suitability, Feihong's engineers also provide high-quality product testing services. Feihong is dedicated to the research, development, production, and sales of semiconductor devices, integrated circuits, and power semiconductors, providing manufacturers with sustainable stable supply. With 35 years of experience in the semiconductor industry and 20 years of R&D and manufacturing experience, we not only offer free samples but also customize MOS tube products according to customer needs.

Simply enter "Feihong Semiconductor" in Baidu to find us, and our free sample hotline is 400-831-6077.
