The switching speed of the MOSFET is very important for motor drive applications, as fast-switching MOSFETs can help reduce switching losses and improve system efficiency.

In the era of localization, selecting a good MOSFET for use in circuits is very important. Today, we introduce a domestic MOSFET model that can replace 13N50 and can be applied to motor drive!

As an N-channel enhancement-mode high-voltage power field-effect transistor, with its characteristics of 13A and 500V, electronic engineers can not only apply it to motor drives but also use it in DC-AC converters, DC-DC converters, post-stage circuits of 500W inverters/switching power supplies/UV lamp electronic ballasts, and other application scenarios.

When selecting, the on-resistance, voltage withstand capability, rated current, switching speed, thermal characteristics, switching losses, and other core issues need to be considered.

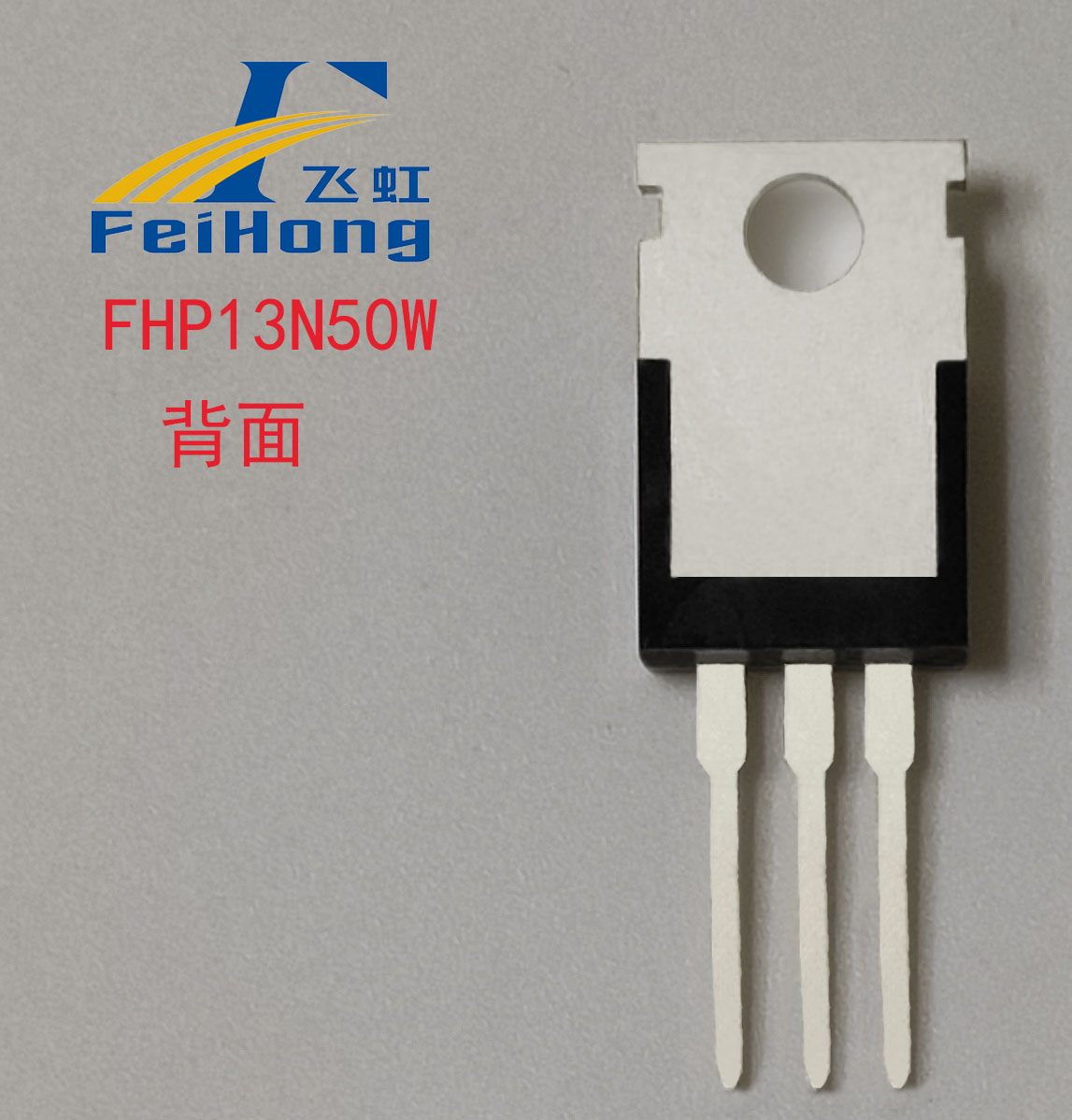

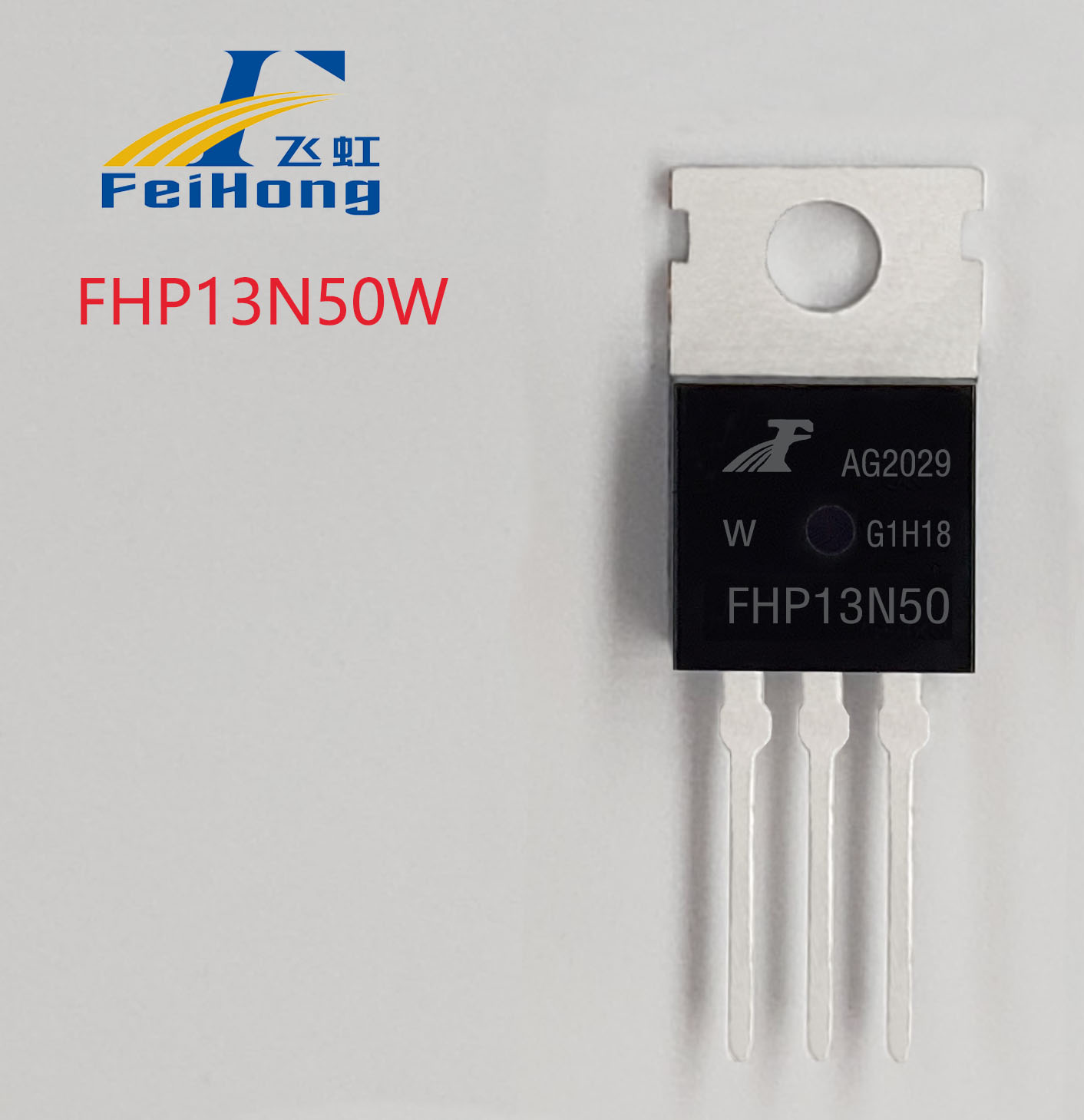

Currently, the main package form of FHP13N50W is TO-220, with the pin arrangement GDS.

The specific parameters of this 740 field effect transistor product are: Vgs (±V): 30; VTH (V): 2-4; ID (A): 13; BVdss (V): 500. RDS (on) = 0.36mΩ(typ) @ VGS =10V, RDS (on) = 0.45mΩ(max) @ VGS =10V.

This product has the characteristics of low charge, low reverse transfer capacitance, fast switching speed, large chip, and overload impact resistance, which are the parameter features that can replace 13N50.

If you want to introduce a 13A low current, 500V high voltage, 0.45 ohm on-state resistance MOSFET, we highly recommend the pure domestic FHP13N50W model for use in motor drive applications.

For the replacement use of 13A, 500V MOSFETs, selecting the right model is important for energy storage inverters. The MOSFETs from Feihong Semiconductor are not only widely used in motor drives but can also be applied to outdoor energy storage power supplies, frequency converters, photovoltaic inverters, welding machines, industrial sewing machines, and other terminal applications.

They provide high-quality products and supporting services to domestic electronics manufacturers. In addition to providing free samples, they can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
