Three-wheeled vehicles are well-known in China, but they are considered rare and brag-worthy products abroad. This year, Chinese electric tricycles have been selling rapidly on major overseas e-commerce platforms. The "three-wheel jumpers," as affectionately called by foreigners, will inevitably enter the regulated sales path after experiencing the savage growth.

Therefore, the craze for domestically produced "three-wheel jumpers" abroad will definitely continue. Next, how to optimize their own products, with motor control being the core upgrade area. Because MOSFETs are not just simple switch elements in the motor control of electric tricycles; they are actually the core components for achieving precise control and efficient driving.

So, how can a product that can replace the IPT020N10N5 MOSFET be selected to improve quality? In fact, there is already a domestic FHL300N1F2A low-voltage MOSFET model parameter commonly used for motor control in electric tricycles.

Firstly, the FHL300N1F2A MOSFET model is manufactured by a domestic MOSFET manufacturer that has specialized in research and development for 20 years. Its excellent manufacturing process and performance parameters provide better adaptation for motor control in electric tricycles, optimizing overall machine control efficiency.

The key to MOSFET replacement lies in focusing on parameter performance. Why does the FHL300N1F2A domestic field-effect transistor say it can effectively replace the foreign IPT020N10N5 model parameters in motor control of electric tricycles?

Let's take a look at the specific product parameters of this FHL300N1F2A from Feihong: 300A current, 100V voltage, RDS(on) = 2.0mΩ(MAX) @VGS = 10 V, RDS(on) =1.6mΩ(TYP) @VGS = 10 V, maximum gate-source voltage @VGS =±20 V.

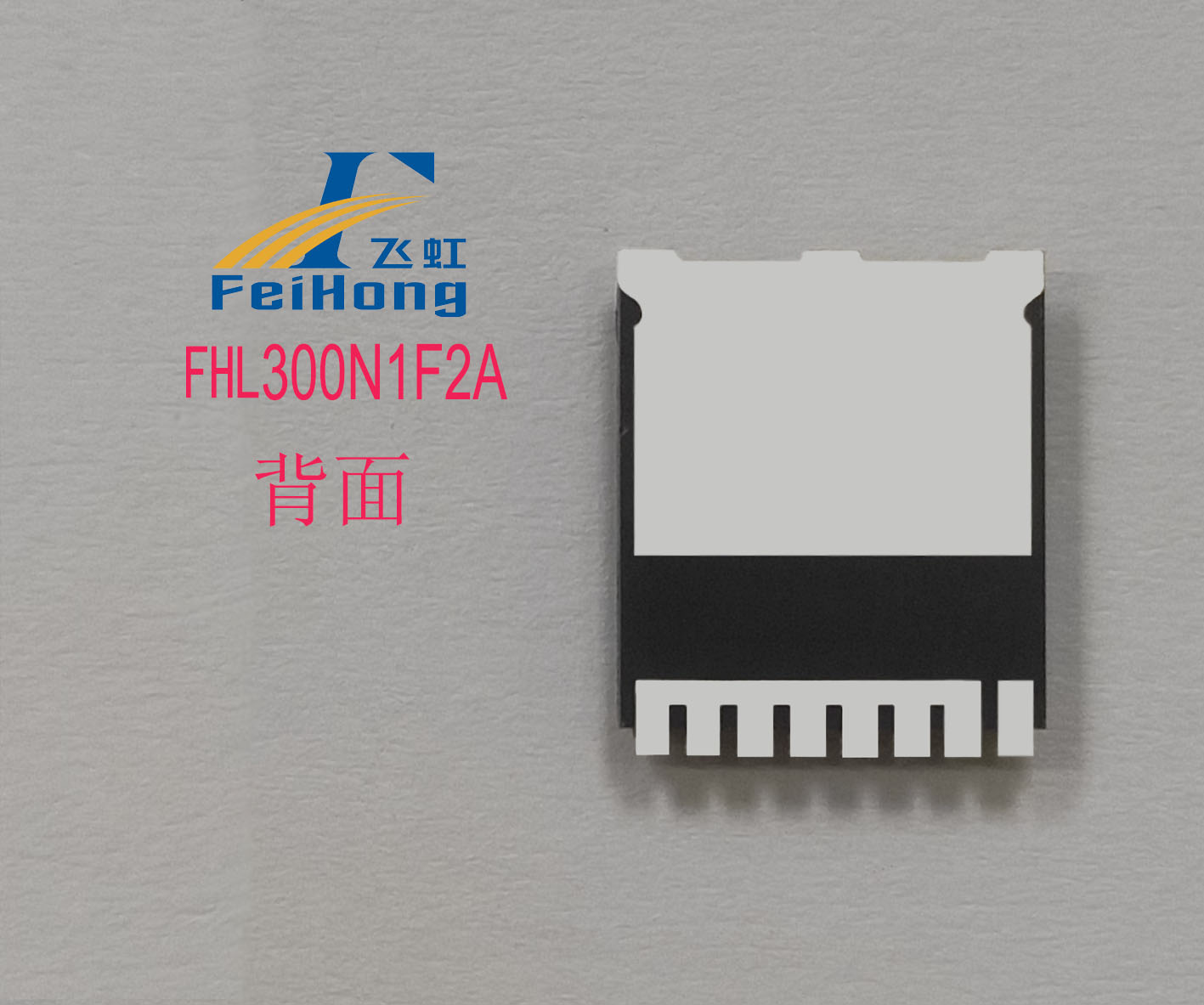

The FHL300N1F2A is an N-channel enhancement-mode field-effect transistor, with the FHL series using TOLL-8L package form, which features low thermal resistance, low internal package resistance, small size, and low parasitic inductance.

This product also has specific parameter values: VGS(th): 2.0-4.0V; Vgs(±V): 20; ID(A): 300A; BVdss(V): 100V.

Static on-resistance (typ): 1.6mΩ, maximum pulse drain current (IDM): 1200(A), reverse transfer capacitance: 328pF.

In the process of replacing domestic field-effect transistors, the Feihong domestic model FHL300N1F2A parameters can replace the IPT020N10N5 model, featuring the following characteristics:

1. Industrial-grade reliability: Small package inductance, providing excellent EMI characteristics and reliability.

2. 100% DVDS thermal resistance test (lower thermal resistance, superior temperature rise performance).

3. 100% EAS test.

4. 100% Rg test.

5. Low on-resistance: Supports smaller impedance and larger peak current.

The domestic "three-wheel jumper" has sparked a product upgrade, choosing the more industrial-grade FHL300N1F2A model field-effect transistor. It is widely used in high-power density applications such as electric tricycles, electric motorcycles, lithium battery protection, communication power supplies, etc., and can replace the IPT020N10N5 brand MOSFET.

Using a 100V, 300A MOSFET for replacement, selecting the right model is crucial. Feihong Semiconductor's MOSFETs are widely used in motor control, power circuits, smart home appliances, new energy electronics sectors: such as automotive electronics, electric scooters, smart speakers, household appliances, LED lighting, chargers, computer power supplies, etc., providing high-quality products and supporting services to domestic electronic product manufacturers. Besides offering free samples, we can also customize MOSFET products according to customer needs. Just search for "Feihong Semiconductor" on Baidu to find us, free trial hotline: 400-831-6077.
