"What the people need, Wuling will produce," this phrase seems never to be an empty promise. Recently, People's Daily Online went to Guangxi to visit Guangxi Wuling Industrial Company and learned that the international sales revenue of Wuling off-road vehicles has increased by 101% this year, with Wuling sightseeing vehicles accounting for more than 50% of the market share in national AAAA-level scenic areas.

In recent years, domestic tourism has been booming, making the competition in the sightseeing vehicle market inevitably fiercer. To gain an advantage in such a competitive market, it is essential to improve the quality of key products like electric sightseeing vehicle motor controllers.

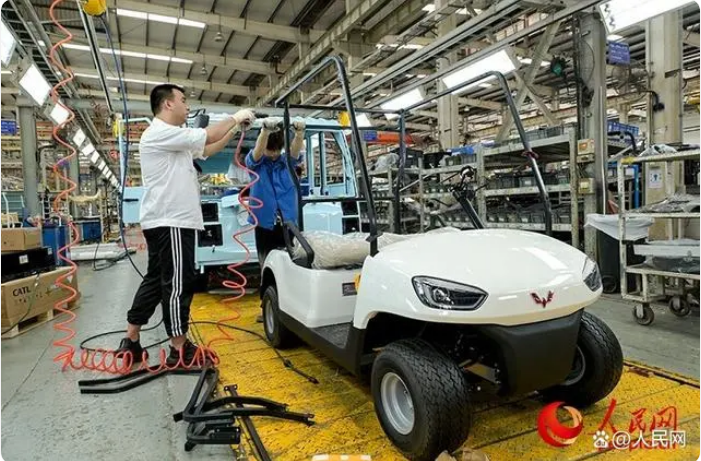

Image source: People's Daily Online

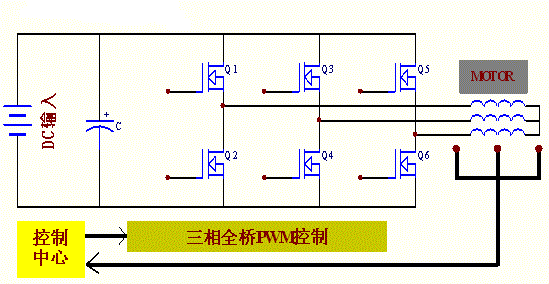

Regarding the motor control of electric sightseeing vehicles, how can one select a field-effect transistor product that can replace the IPT020N10N5 to improve quality? In China, the FHL300N1F2A low-voltage MOS tube model parameters can be directly used for electric sightseeing vehicle motor control.

To ensure that the MOS tube replacement enhances both product quality and quantity, it is crucial to focus on parameter performance. Why is it said that the FHL300N1F2A domestic field-effect transistor can effectively replace the foreign IPT020N10N5 model parameters for use in electric sightseeing vehicle motor control?

Let's look at the specific product parameters of this FHL300N1F2A from Fei Hong: current of 300A, voltage of 100V, RDS(on) = 2.0mΩ(MAX) @VGS = 10 V, RDS(on) =1.6mΩ(TYP) @VGS = 10 V, maximum gate-source voltage @VGS =±20 V.

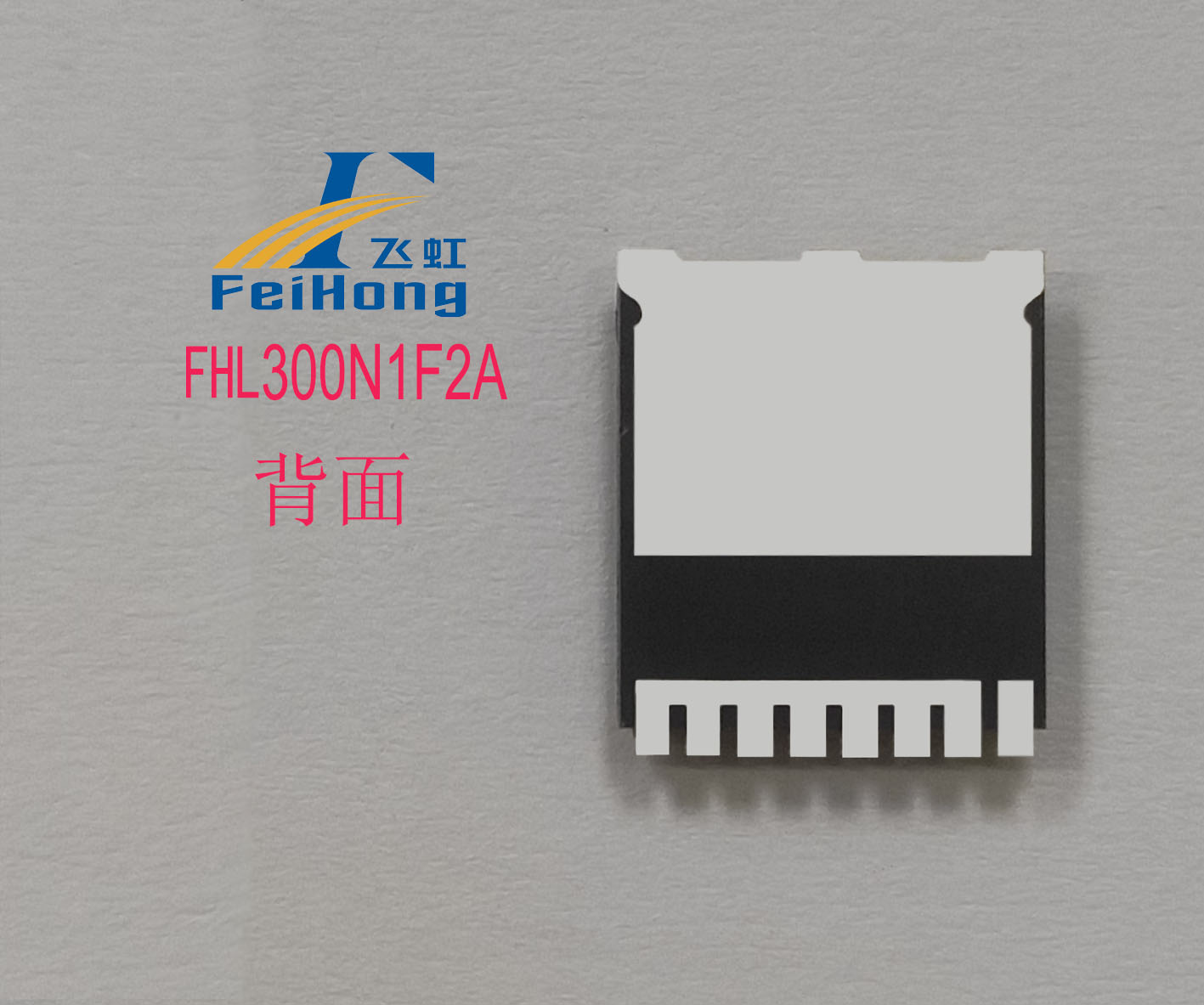

The FHL300N1F2A is an N-channel enhancement-mode field-effect transistor, with the FHL series adopting the TOLL-8L package form. The packaged product features low internal resistance, small size, low thermal resistance, and low parasitic inductance.

This product also has specific parameter values: VGS(th): 2.0-4.0V; Vgs(±V): 20; ID(A): 300A; BVdss(V): 100V.

Static on-resistance (typ): 1.6mΩ, maximum pulse drain current (IDM): 1200(A), reverse transfer capacitance: 328pF.

During the process of using domestic field-effect transistors as substitutes, the Fei Hong domestic model FHL300N1F2A has the following characteristics:

1. 100% Rg testing

2. Low conduction internal resistance: supports smaller impedance and larger peak current.

3. Industrial-grade reliability: small package inductance, excellent EMI characteristics and reliability.

4. 100% DVDS thermal resistance testing (lower thermal resistance, superior temperature rise performance).

5. 100% EAS testing

Finally, the FHL300N1F2A MOS tube model is produced by a MOS tube manufacturer that has been dedicated to research and development for 20 years domestically. Its excellent manufacturing process and parameter performance can enhance efficiency and quality in the motor control of electric sightseeing vehicles.

For domestic sightseeing vehicles to succeed overseas while increasing both quantity and quality, it is recommended during the R&D phase to choose industrial-grade FHL300N1F2A model field-effect transistors. This model is widely used in high-power density applications such as electric sightseeing vehicles, electric motorcycles, lithium battery protection, communication power supplies, etc., and can replace the IPT020N10N5 brand MOS tubes.

When replacing a 100V, 300A MOS tube, selecting the right model is crucial. Fei Hong Semiconductor's MOS tubes are already widely applied in motor control, power circuits, smart home appliances, new energy electronics sectors: automotive electronics, electric bikes, smart speakers, household appliances, LED lighting, chargers, computer power supplies, and other industries, providing high-quality products and supporting services to domestic electronic manufacturers. In addition to offering free samples, they can also customize MOS tube products according to customer needs. Simply search for "Fei Hong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
