The MOS tube model FHL170N1F4A released by Feihong Semiconductor is very suitable for high-power density application scenarios such as electric bicycles, electric motorcycles, electric sightseeing vehicles, lithium battery protection, communication power supplies, etc.

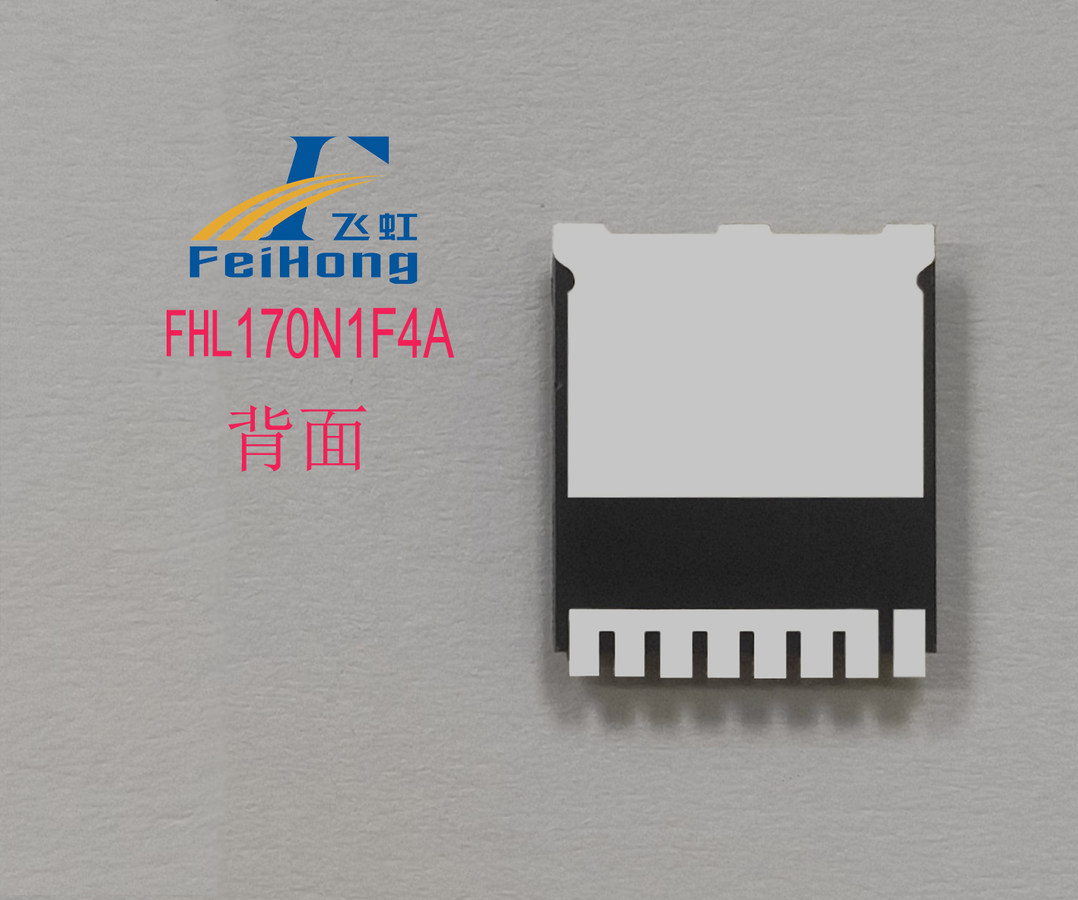

The FHL series adopts the TOLL-8L package form, and its packaged products have features such as small size, low internal package resistance, low parasitic inductance, and low thermal resistance. Therefore, the MOS tube of the FHL170N1F4A model can replace the FDBL86066 field effect tube model for industrial-grade applications.

Currently, the 100V voltage and 172A current of the FHL170N1F4A model make it more suitable for industrial use. Most importantly, the MOS tubes produced by Feihong Semiconductor undergo a series of reliability studies before being finally provided to the market for application.

The current characteristics and parameters of the FHL170N1F4A model field effect tube product from Feihong Semiconductor are as follows:

1. Low on-resistance: supports smaller impedance and larger peak current.

2. 100% EAS test

3. 100% DVDS thermal resistance test (lower thermal resistance, resulting in excellent temperature rise performance)

4. 100% Rg test

5. Industrial-grade reliable performance: small package inductance, bringing excellent EMI characteristics and reliability.

The detailed parameters of the FHL170N1F4A model field effect tube are:

ID: 172A, VDSS: 100V, RDS(on) = 4.0mΩ(MAX) @VGS = 10V, RDS(on) = 3.2mΩ(TYP) @VGS = 10V.

FHL170N1F4A is an N-channel enhancement-mode field-effect transistor using SGT technology, making it more suitable for industrial use.

As mentioned above, its packaged products have features such as small size, low internal package resistance, low parasitic inductance, and low thermal resistance, making them particularly suitable for industrial fields such as motor drives, battery management systems, and electric vehicle controllers.

The following are the specific application fields of the FHL170N1F4A model MOS tube product from Feihong Semiconductor:

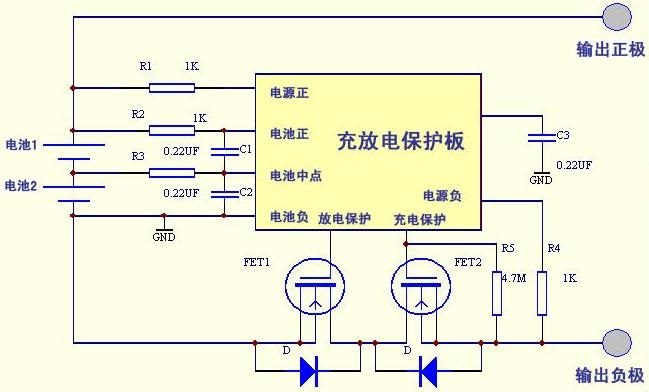

1. BMS: Battery Management System

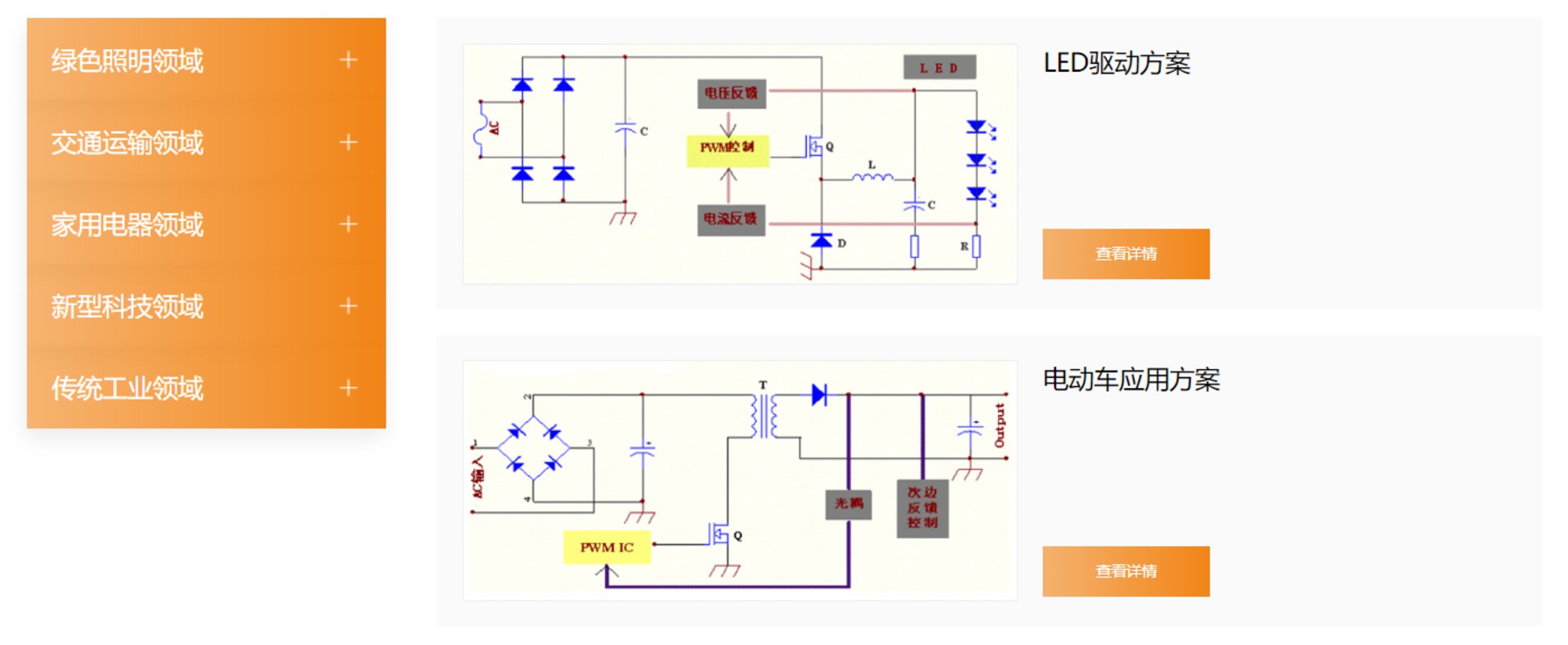

2. High-frequency switching power supply

Common examples include: PD power supply, communication power supply, synchronous rectification, etc.

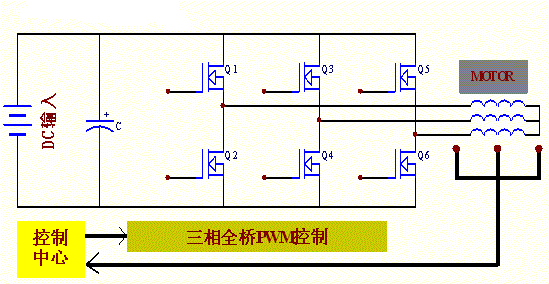

3. Motor control

Common examples include: electric bicycle, electric motorcycle, electric tricycle, electric four-wheel sightseeing car, electric forklift, etc., within the controller products of electric vehicles.

The FHL170N1F4A model field effect tube from Feihong Semiconductor is a domestically high-quality MOS tube product, with application fields involving electric bicycles, electric motorcycles, electric sightseeing vehicles, lithium battery protection, communication power supplies, and other high-power density application scenarios! For 20 years, Feihong Semiconductor has been dedicated to providing domestic electronic product manufacturers with high-quality products and supporting services. In addition to offering free samples, we can also customize MOS tube products according to customer needs. Simply enter "Feihong Semiconductor" in Baidu to find us. Free sample hotline: 400-831-6077.
