The circuits in industrial large fans that use IGBT single tubes are mainly concentrated in inverters, converters, rectifier and chopper circuits, and active front-end circuits. These circuits utilize the efficient energy conversion and high switching frequency performance of IGBTs to achieve precise control and efficient operation of large power fans.

In specific applications, suitable IGBT devices are selected according to actual power requirements and control requirements to achieve optimal performance and cost-effectiveness. Today, we will discuss which IGBT model can replace FGH60N60SMD for use in industrial large fans.

Why is it necessary to select an IGBT to replace the parameters of the FGH60N60SMD model?

Because industrial large fans require precise speed control and high efficiency, and using IGBT (Insulated Gate Bipolar Transistor) is a common choice.

Therefore, in the era of domestication of electronic components, seeking an excellent IGBT type to replace the parameter model of FGH60N60SMD products can enhance the competitiveness of products in the market.

Today, Feihong Semiconductor prioritizes sharing information about industrial large fan products. If there are other needs, you can directly consult Feihong Semiconductor. In fact, for industrial large fans, we recommend using FHA60T65A in industrial large fan circuits. After all, FHA60T65A is a product model parameter that can replace FGH60N60SMD.

Why? Because FHA60T65A has high reliability and fast recovery diode characteristics with parallel reverse conduction, Trench Field Stop Technology (short tail current, excellent Vcesat saturation voltage drop, low turn-off loss), and positive temperature coefficient.

From the above features, it is known that the IGBT single tube parameters of this 60A, 650V current and voltage FHA60T65A model are very suitable for use on the circuit of industrial large fans.

Of course, in application, our industrial large fan R&D engineers must understand the detailed parameters of this high-quality native FHA60T65A IGBT single tube: it has 60A, 650V, typical value of VCEsat: 1.75V, <2.0V; IC (Tc=100℃): 60A; Bvces: 650V; IF (Tc=25℃): 60A; IF (Tc=100℃): 30A.

FHA60T65A is an N-channel trench gate turn-off IGBT, using Trench Field Stop Ⅱ technology and optimized processes to achieve extremely low VCEsat saturation voltage drop, and can make good trade-offs between conduction loss and turn-off loss (Eoff).

The excellent on-state voltage drop and extremely short tail current of FHA60T65A provide strong assistance to customers in optimizing system efficiency.

Currently, the FHA60T65A model IGBT single tube is widely used in various hard-switching applications such as industrial large fans, photovoltaic inverters, high-frequency on-board sine wave AC220V inverters, outdoor energy storage power supplies, UPS, variable frequency drives, arc welding machines, and industrial sewing machines. It can replace other brand models: Fairchild FGH60N60SMD.

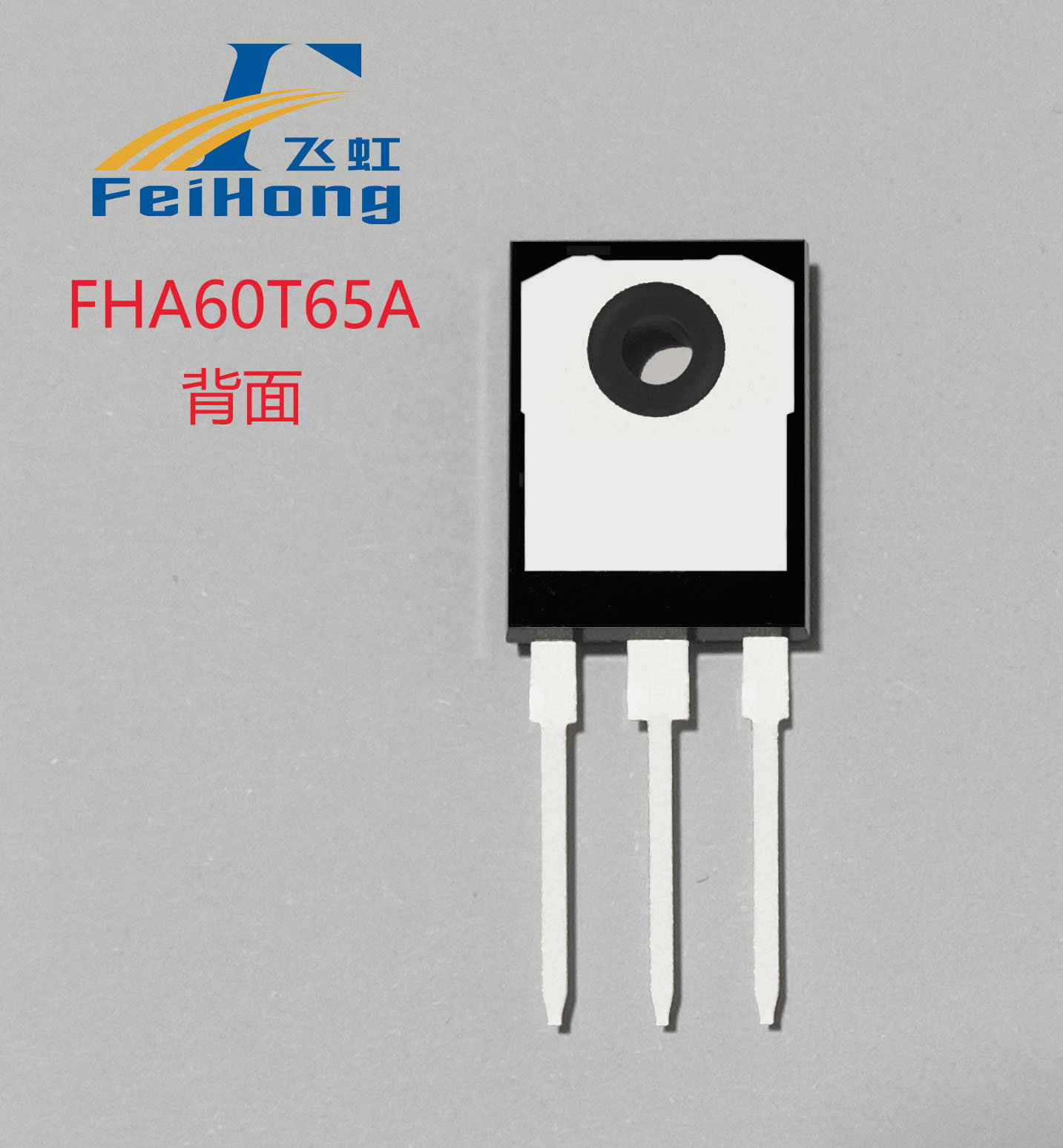

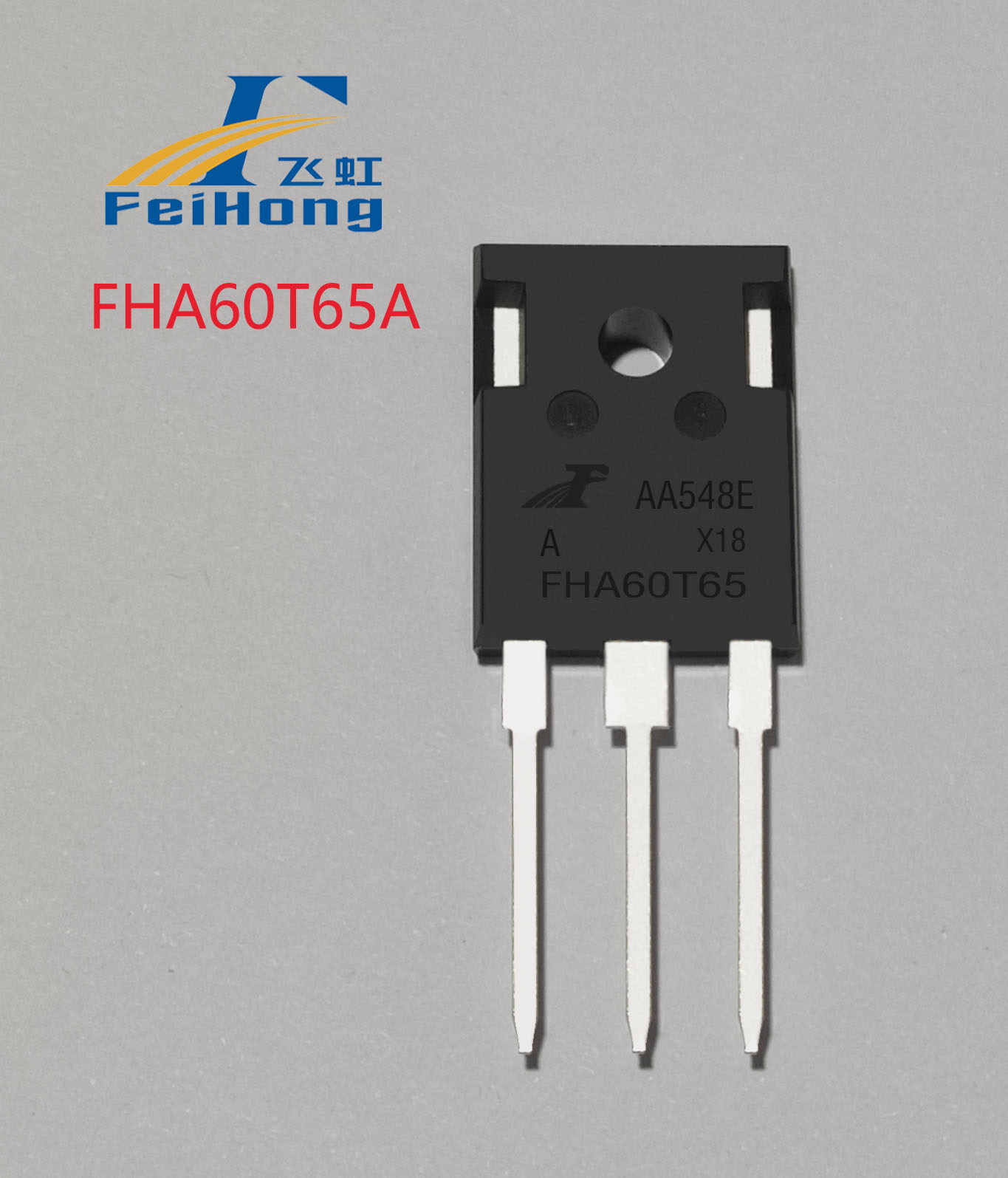

For the TO-247 package form, in addition to selecting the FGH60N60SMD model, the domestic model FHA60T65A parameters from Feihong Semiconductor can also be used as a substitute.

Besides being suitable in parameters, Feihong's engineers also provide quality product testing services. Feihong is dedicated to the research, production, and sales of semiconductor devices, integrated circuits, and power semiconductors, providing manufacturers with sustainable and stable supply. With 35 years of experience in the semiconductor industry and 20 years of R&D and manufacturing experience, Feihong can not only provide free samples but also customize IGBT products according to customer needs.

You can find us by searching "Feihong Semiconductor" on Baidu, and the free sample hotline is 400-831-6077.
