China has become the largest IGBT market in the world, and the growth of its demand is mainly brought by the growth of new energy, among which the demand for new energy vehicles, photovoltaics, etc. is at the core. Due to the growth of demand, IGBT single tubes are often in a state of insufficient supply.

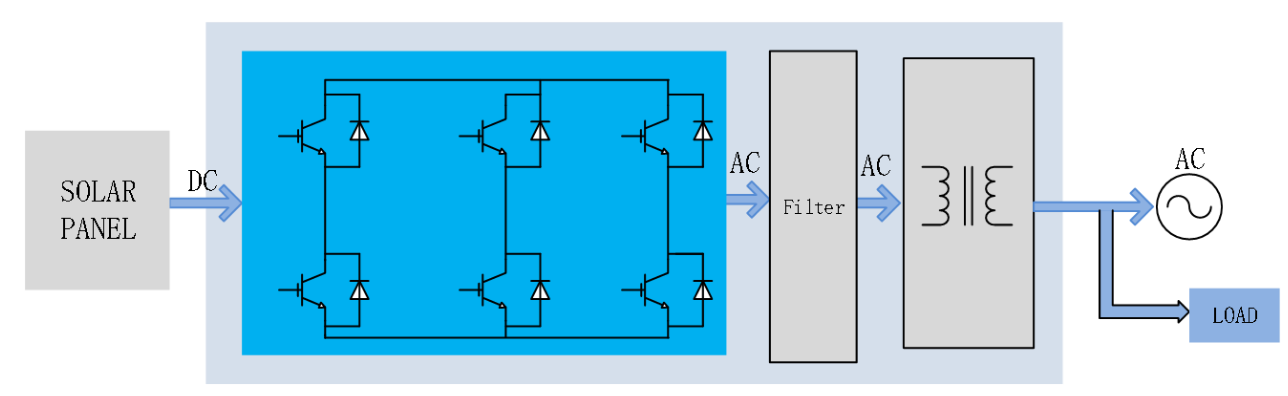

According to data analysis, it is expected that China's IGBT industry output will reach 0.78 billion units in 2024, while the demand will be 1.96 billion units. The gap is huge. How should solar inverter manufacturers in the photovoltaic industry chain seek high-quality IGBT products for three-phase full-bridge inverter topology?

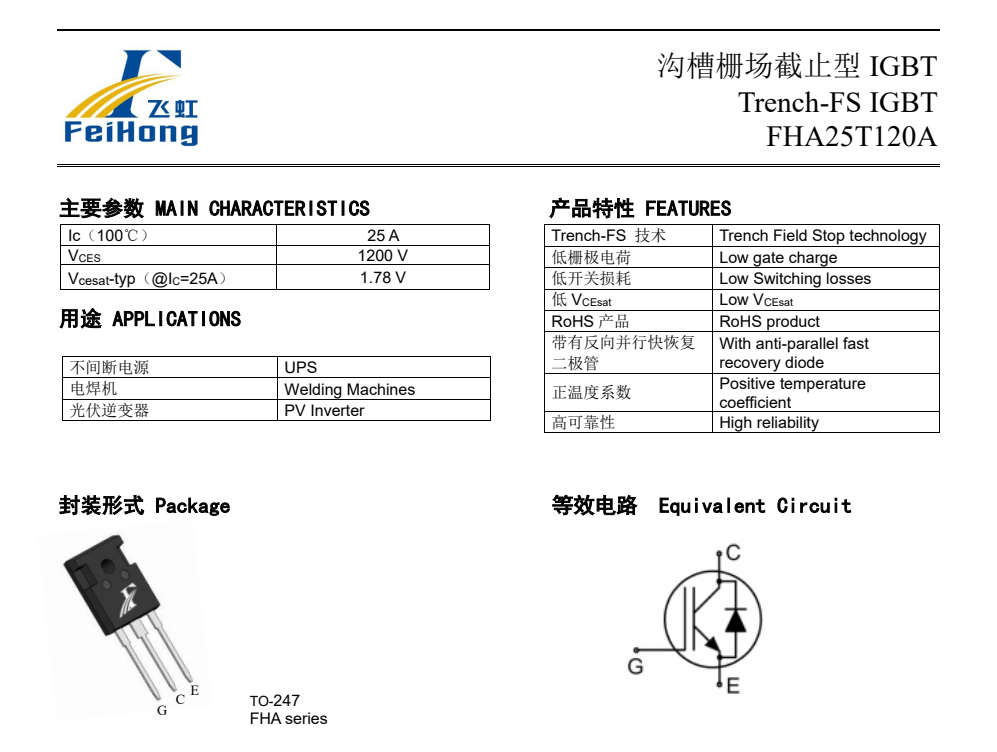

In the market, NGTB25N120FL2WG, a previously commonly used foreign model, already has good domestic alternatives in China. It is the FHA25T120A IGBT single tube from Feihong Semiconductor.

Why? Because the FHA25T120A IGBT single tube has the following features:

1. High reliability

2. Equipped with fast recovery diodes in parallel

3. Trench Field Stop Technology (short tail current, excellent Vcesat saturation voltage drop, low turn-off loss)

4. Positive temperature coefficient

5. Tjmax=175℃

6. Switching frequency fsw=40KHz

IGBT single tubes need to be safe, stable, and reliable, not only in terms of performance but also in terms of supply. Feihong Semiconductor has stable production lines and good supply quality. More importantly, this 25A, 1200V current and voltage FHA25T120A IGBT single tube model parameters are very suitable for use in solar inverters.

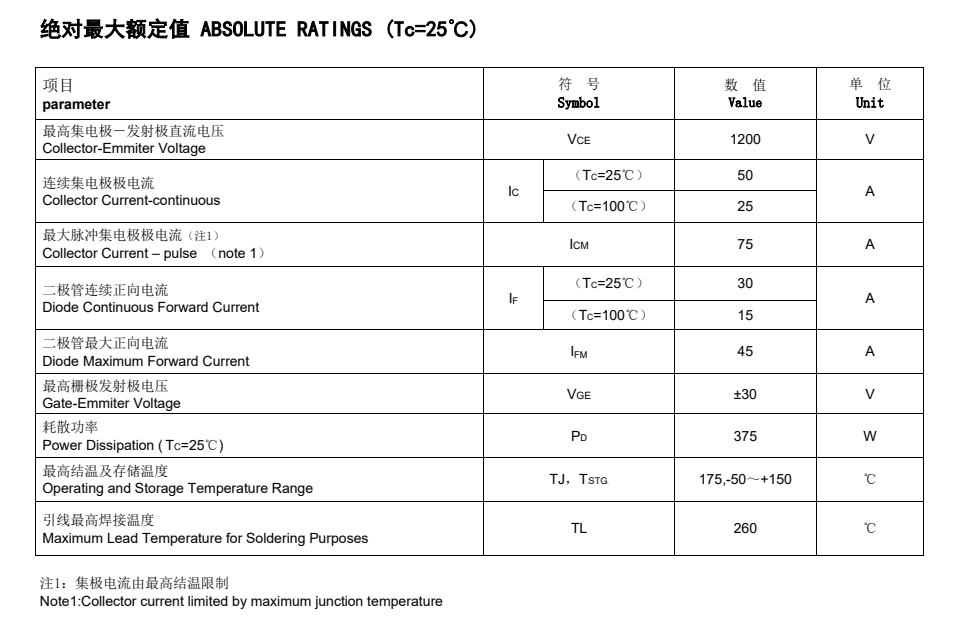

Electronic R&D engineers who have used this IGBT from Feihong know the detailed parameters of this high-quality FHA25T120A domestic IGBT single tube: it has a current and voltage of 25A and 1200V respectively, VCEsat typical value: 1.78V-typ VGE=15V, IC=25A, TJ =25°C; IC (Tc=100℃): 25A; BVCES: 1200V; IF(A)(Tc=25°C): 30A; IF(A)(Tc=100°C): 15A.

FHA25T120A is a field trench gate stop-type IGBT, and other MOS tube brand replacement models: NGTB25N120FL2WG. It is commonly used in solar inverters, UPS, arc welders, and various soft and hard switching and PFC circuits, applicable for switching frequencies ranging from 1KHz to 40KHz, etc.

Other parameter values of FHA25T120A: Gate body leakage current IGES(F/R) : (VCE=0V, VGE=±30V): ±200nA, reverse transfer capacitance: 67.3pF.

When using solar inverters, cost-effective IGBT single tubes must be considered. It is recommended to choose the high-quality FHA25T120A IGBT single tube as a substitute for the NGTB25N120FL2WG parameter model in solar inverters to gain an advantage in fierce competition!

For the replacement of 1200V, 25A IGBTs, choosing the right model is crucial. Feihong Semiconductor's IGBTs are not only widely used in solar inverters but can also be applied to new energy electric vehicles, audio amplifiers, UPS, and other terminal applications. They provide high-quality products and supporting services to domestic electronic product manufacturers. In addition to providing free samples, they can also customize IGBT products according to customer needs. Simply enter "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
