Facing the rapid development of the new era and the swift improvement in fast charging technology, the application range of switch-mode power supplies has become more extensive. Reducing the power consumption of low-voltage high-current systems has become a challenge for electrical engineers. The effective use of MOSFETs to improve power efficiency and replace traditional rectifier diode technologies are key topics.

For the synchronous rectification problem in switch-mode power supplies, choosing a high-quality domestic MOSFET that can replace the FDBL86066 model parameters is one of the core priorities.

In the power supply industry, what are the domestic high-quality MOSFETs available for switch-mode power supplies? Besides the market's FDBL86066 parameter models, we choose the FHL170N1F4A field-effect transistor from Feihong Semiconductor.

Why? Because the FHL170N1F4A field-effect transistor has the following features:

1. Industrial-grade reliability performance: Small package inductance, providing excellent EMI characteristics and reliability.

2. 100% DVDS thermal resistance test (lower thermal resistance, resulting in superior temperature rise performance).

3. 100% EAS test.

4. 100% Rg test.

5. Low on-resistance: Supports smaller impedance and larger peak current.

From the above description, it is clear that this industrial-grade FHL170N1F4A field-effect transistor with 172A, 100V current and voltage is very suitable for use in the synchronous rectification circuit of switch-mode power supplies.

Of course, in the application of synchronous rectification, our electrical engineers must understand the detailed parameters of this high-quality FHL170N1F4A domestic field-effect transistor: it has a current and voltage of 172A and 100V respectively, RDS(on) = 4.0mΩ(MAX) @VGS = 10V, RDS(on) = 3.2mΩ(TYP) @VGS = 10V, and the maximum gate-source voltage @VGS = ±20V.

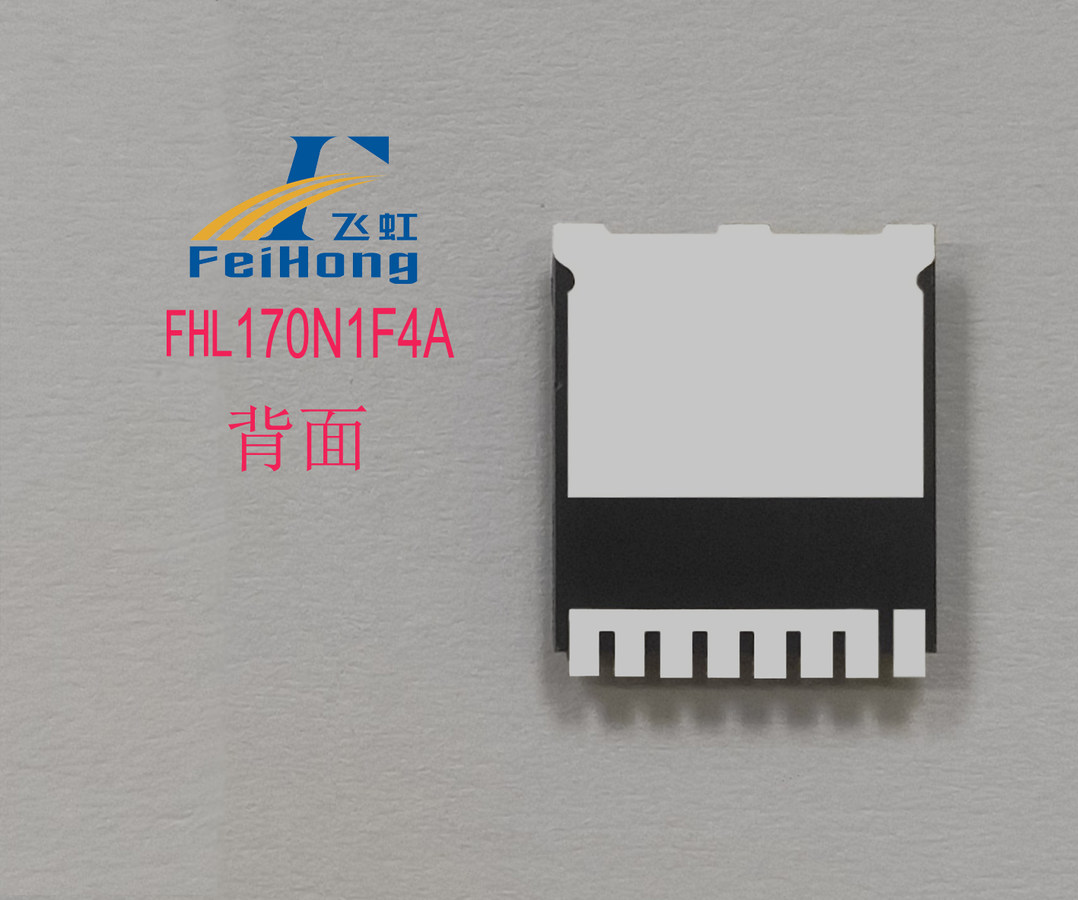

The FHL170N1F4A is an N-channel enhancement-mode field-effect transistor. The FHL series uses the TOLL-8L package shape, and its packaged products have features such as low internal resistance, low parasitic inductance, small size, and low thermal resistance.

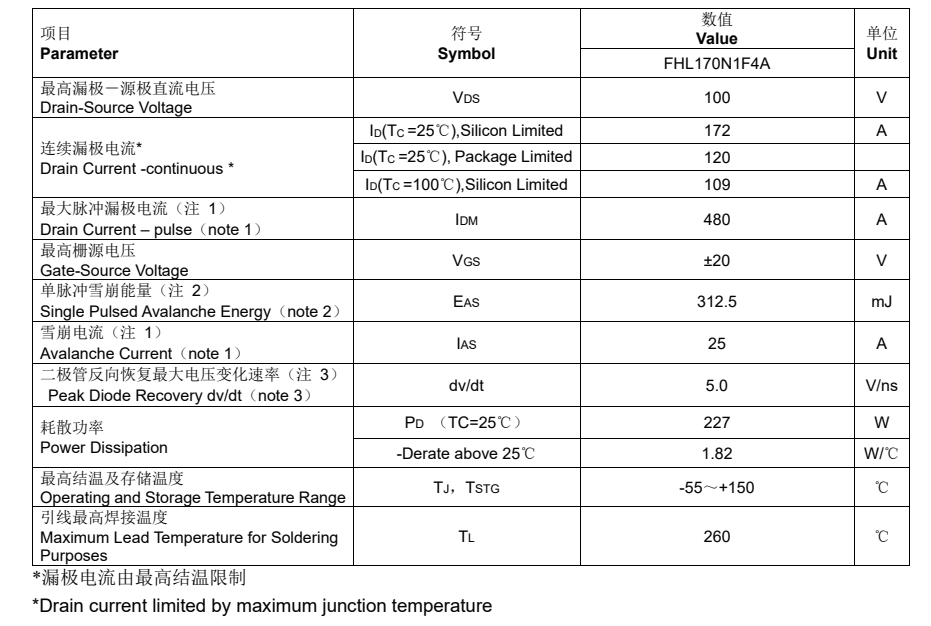

This product also has specific parameter values: Vgs(±V): 20; VGS(th): 2.0-4.0V; ID(A): 172A; BVdss(V): 100V.

Maximum pulse drain current (IDM): 480(A), static on-resistance (typ): 3.2mΩ, reverse transfer capacitance: 33pF.

The development of the times is rapid. How to gain competitive advantages in the fiercely competitive switch-mode power supply market? The core lies in seeking high-quality FHL170N1F4A field-effect transistors to replace FDBL86066 parameter models for use in switch-mode power supply circuits.

Using 100V, 172A MOSFETs for replacement, selecting the right model is crucial. Feihong Semiconductor's MOSFETs are not only widely used in switch-mode power supplies but also applied in new energy electric vehicles, audio amplifiers, UPS, and other terminal applications. They provide quality products and services to domestic electronic product manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Search for us by entering "Feihong Semiconductor" on Baidu, and the free sample hotline is 400-831-6077.
