The penetration rate of BLDC motors is continuously increasing in both industrial and household applications. Besides traditional power tools, vacuum cleaners, and small home appliances, they are also widely used in automobiles, electric two-wheelers, high-speed hairdryers, and so on. Therefore, how to select IGBT single modules for BLDC motor application has become an important topic for motor manufacturers.

Currently, many domestic motor manufacturers are paying attention to, testing, and even mass-producing BLDC motors with FHF20T60A single IGBT modules. This is a product developed and produced by the pure domestic manufacturer, Feihong Semiconductor.

The excellent Vcesat saturation voltage drop and low turn-off loss of the FHF20T60A single module further enhance the efficiency and quality of BLDC motors. Of course, all these advantages are due to its short tail current and positive temperature coefficient, among other merits.

Moreover, the FHF20T60A model features current and voltage parameters of 20A and 600V respectively, making this IGBT single module very suitable for use in the motor drive circuitry of BLDC motors.

If any engineer wants to know what other features it possesses, here are a few listed below:

1. The FHF20T60A single module has high reliability and fast recovery diode characteristics for reverse parallel operation.

2. It has a typical value of VCEsat at 20A, 600V: 1.49V-typ, ＜1.7V; ID (Tc=100℃): 20A; BVCES: 600V; IF(A)(Tc=25℃): 20A; IF(A)(Tc=100℃): 10A.

FHF20T60A is a field N-channel trench gate IGBT, using Trench Field Stop II technology and optimized processes to achieve extremely low VCEsat saturation voltage drop, and make a good balance between conduction loss and turn-off loss (Eoff).

At present, the FHF20T60A model IGBT single module has been widely applied in various hard-switching circuits such as BLDC motor circuits, inverter power supplies, motor drives, air conditioners, AC220V output high-frequency vehicle sine wave inverters, power factor correction, outdoor energy storage power supplies, etc. It can replace other brand models like NCE20TD60BF.

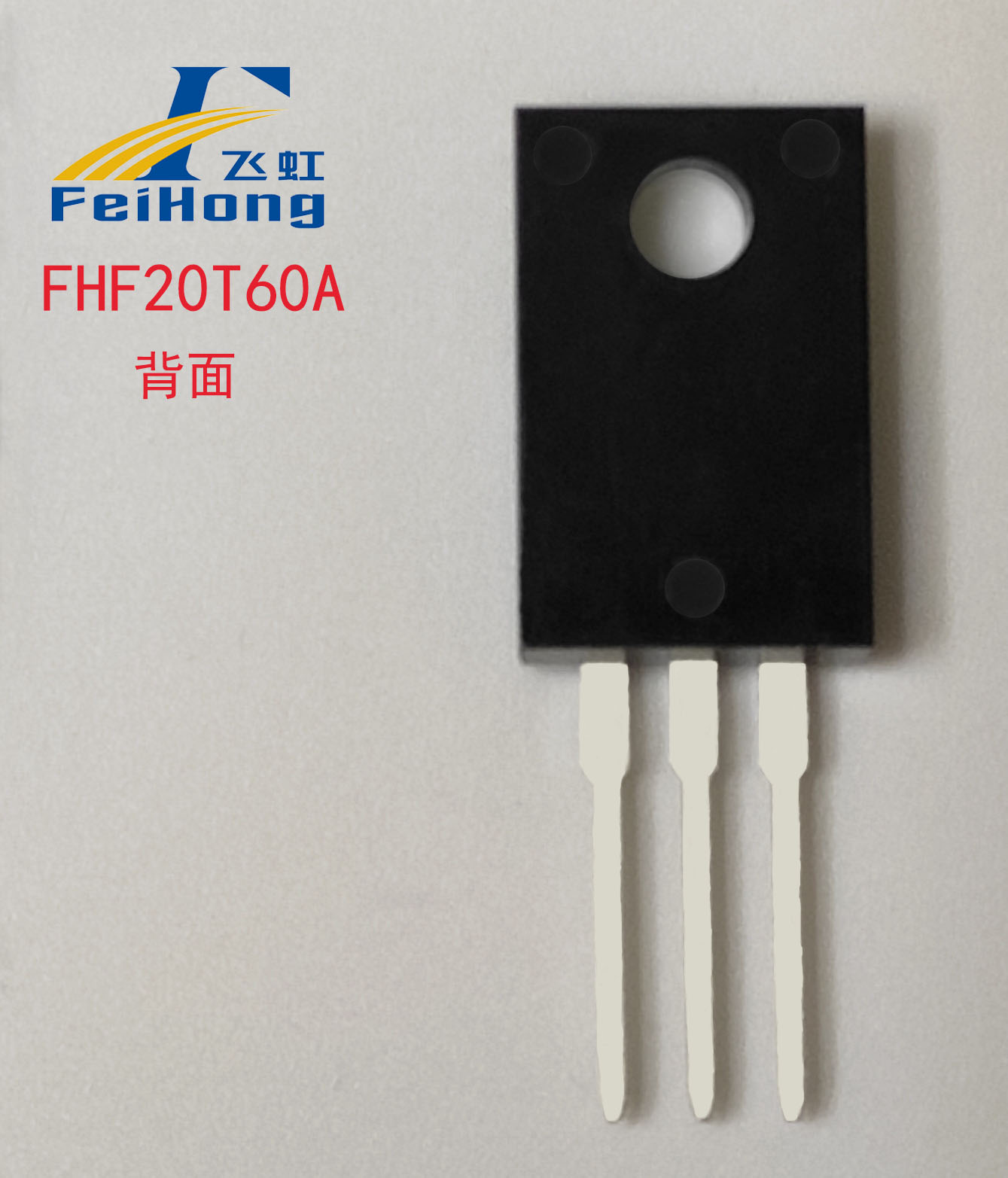

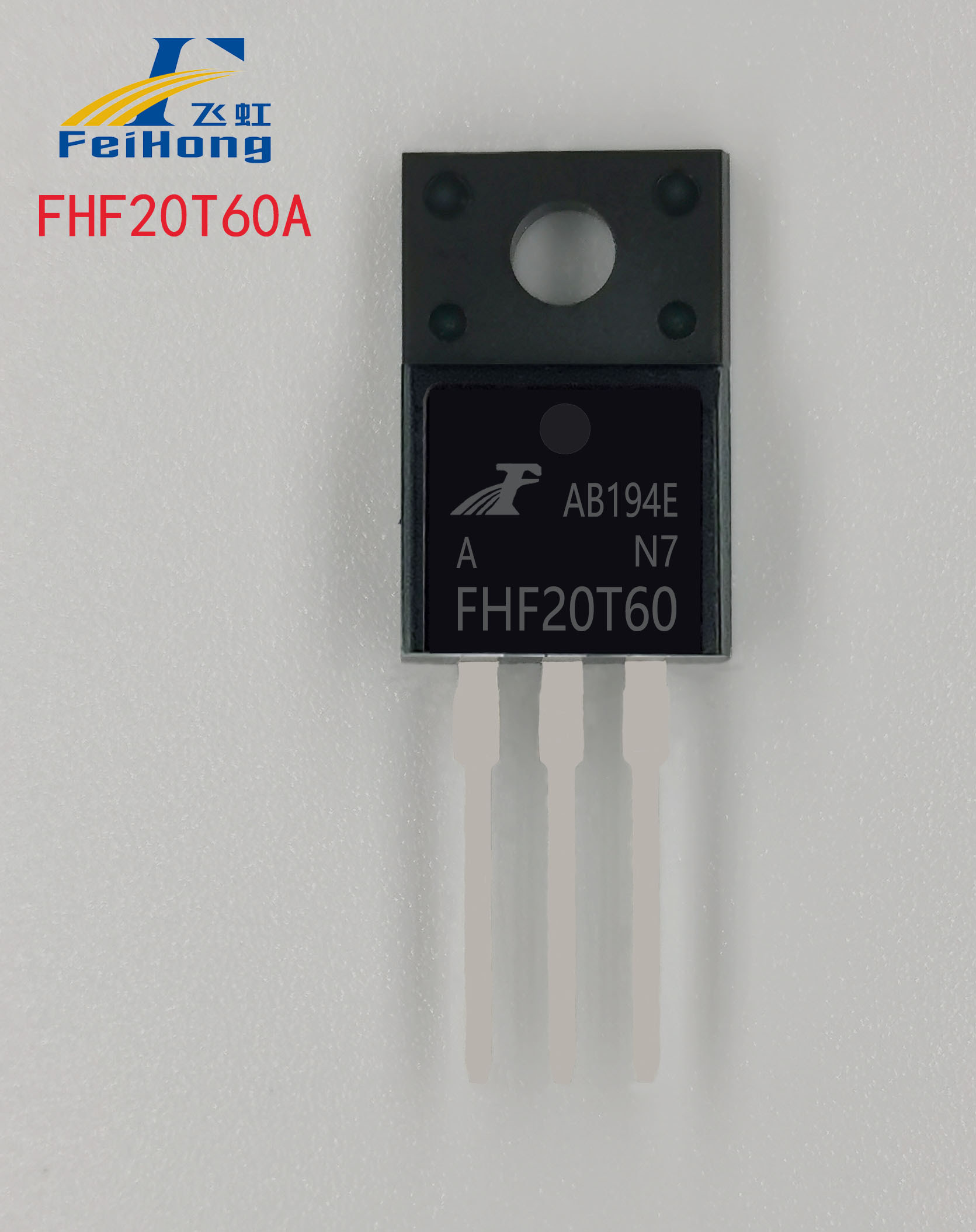

The packaging form of the FHF20T60A single module is TO-220F. In addition to the aforementioned fields, it is recommended that BLDC motor manufacturers in the fan industry, such as fans, exhaust fans, range hoods, hair dryers, HVAC fans, circulating fans, industrial fans, etc., pay more attention to this purely domestic IGBT single module.

To gain a competitive edge in markets such as fans and pumps, new energy vehicles, and household appliances, choosing high-quality IGBTs is crucial. In the market, the FHF20T60A IGBT single module is a high-quality alternative to the NCE20TD60BF parameter model, helping to improve product stability and reliability.

For the replacement of 600V, 20A IGBTs, selecting the right model for BLDC motors is very important. Feihong Semiconductor's IGBTs are not only widely used in the motor drive of BLDC motors but can also be applied in household appliances, photovoltaic motor drives, outdoor energy storage power supplies, BLDC motors, welding machines, and other end-use applications. They provide high-quality products and services to domestic electronic product manufacturers. Besides offering free samples, we can also customize IGBT products according to customer needs. Simply search for "Feihong Electronics" on Baidu to find us, and our free sample hotline is 400-831-6077.
