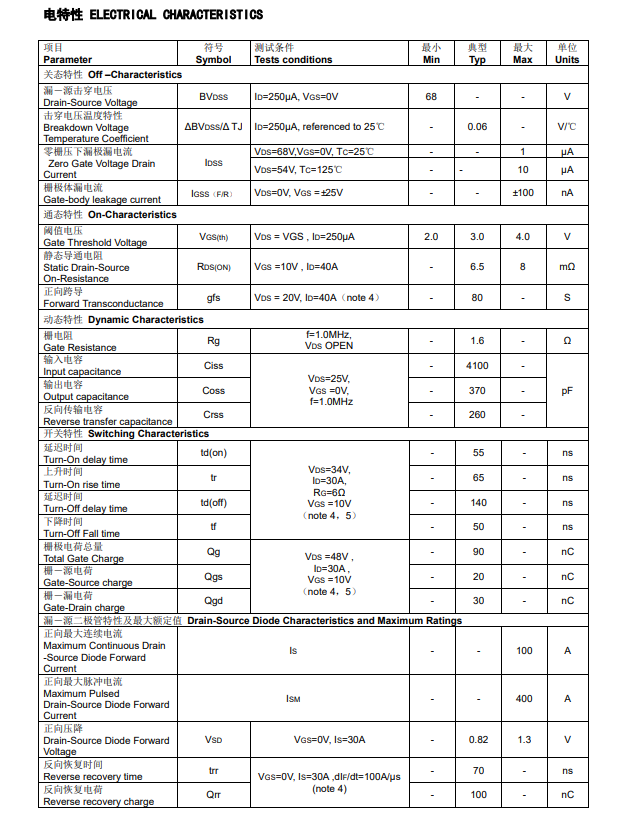

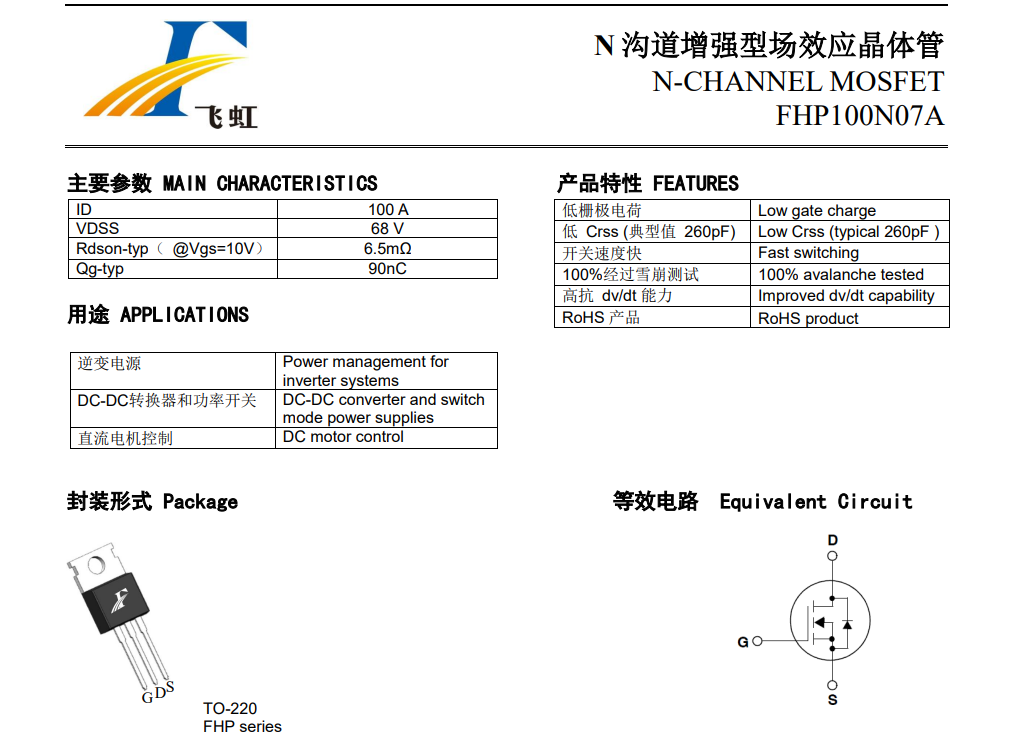

In the design of electric vehicle controllers, selecting an appropriate MOSFET is crucial. Many engineers often face issues such as complex parameters, high risk of counterfeit products, and difficulties in heat dissipation design when choosing models. Especially for applications requiring high-frequency switching and large currents, finding a MOSFET with stable performance, reliable supply, and good cost-effectiveness has become an urgent pain point. The 100N07B MOSFET launched by Flyhong Semiconductor is specifically designed to address these pain points. As an N-channel trench process MOSFET, the 100N07B not only boasts excellent electrical performance but also passes strict testing and certification, ensuring its reliability in high-intensity applications. Firstly, the electrical parameters of the 100N07B perform excellently. Its maximum drain-to-source DC voltage (VDS) is 68V, and the continuous drain current (ID) can reach up to 100A at 25°C, maintaining a stable output of 79A even at a high temperature of 100°C. Additionally, its static on-resistance (RDS(ON)) is as low as 5.9~7.2mΩ, effectively reducing conduction losses and improving overall efficiency. In terms of dynamic characteristics, the 100N07B switches quickly, with an on-delay time (td(on)) of only 39ns and an off-delay time (td(off)) of 95ns. This makes it perform exceptionally well in high-frequency switching applications, effectively reducing switching losses and improving system response speed. For electric vehicle controllers, heat dissipation design is a key issue. The 100N07B adopts advanced Trench technology, with a junction-to-case thermal resistance (Rth(j-c)) as low as 0.7℃/W, ensuring stable operation in high-power scenarios. Moreover, it undergoes 100% thermal resistance testing and avalanche testing, further enhancing its reliability in harsh environments. In terms of supply, as one of China's key packaging bases for high-power MOSFETs, Flyhong Semiconductor has a complete supply chain system, ensuring stable supply of the 100N07B. Whether for emergency orders or long-term stockpiling, Flyhong Semiconductor can provide flexible support to avoid production disruptions caused by shortages. For customers looking to replace HY1707, the 100N07B is undoubtedly an ideal choice. Its performance parameters are highly compatible with HY1707, and it even surpasses it in some key indicators. More importantly, the 100N07B offers significant cost advantages, enabling effective cost control while meeting performance requirements. In summary, the 100N07B MOSFET from Flyhong Semiconductor, with its outstanding performance, reliable supply, and excellent cost-effectiveness, has become an ideal choice for the design of electric vehicle controllers. If you are looking for an efficient and reliable MOSFET, consider the 100N07B. Search "Flyhong Semiconductor" on Baidu or call the free sample hotline: 400-831-6077, for more details and to apply for free samples.
