It is expected that the global UPS uninterruptible power supply equipment market will reach a scale of 17.21 billion US dollars by 2031, with an annual compound growth rate of around 4.1%. Facing this trillion-dollar market, how can manufacturers ensure the stability of their supply chains to continuously increase their market share? The selection of important components such as MOSFETs must not go wrong.

After all, MOSFETs run through key links such as power conversion, switching control, charging management, and protection in UPS systems. Their high efficiency and fast characteristics ensure the high performance and reliability of UPS systems. In the market, models like IRF1404PbF, CS1404, FTP1404, HY4004 are common MOSFETs that can be used in UPS uninterruptible power supplies.

Nowadays, there is another pure domestic low-voltage, high-current, low-on-resistance power MOSFET on the market that is also very suitable for UPS uninterruptible power supplies.

This is the FHP1404V model MOSFET, which can replace imported models such as IRF1404PbF, CS1404, FTP1404, HY4004 for use in UPS uninterruptible power supplies!

As an N-channel enhancement mode field-effect transistor, it features current and voltage characteristics of 250A and 45V respectively. Electrical engineers can apply it not only in UPS uninterruptible power supplies powered by 12V batteries but also in applications such as 12V input audio power supplies, 12V full-bridge topology solar frequency converter off-grid inverters, high-power high-frequency switch power supplies, and vehicle-mounted high-frequency inverters.

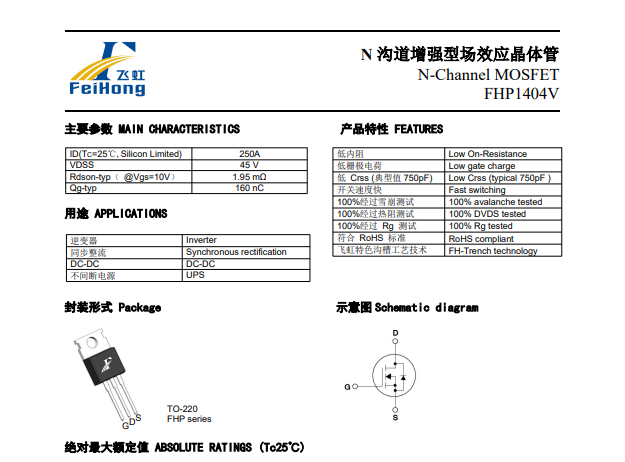

The specific parameters of this FHP1404V field-effect transistor product are: Vgs (±V): 10; VTH (V): 3; ID (A): 250A; BVdss (V): 45V. RDS (on) = 2.5mΩ (max) @ VGS = 10V, RDS (on) = 1.95mΩ (typ) @ VGS = 10V.

These parameters enable FHP1404V to replace IRF1404PbF to address issues such as conversion efficiency in UPS uninterruptible power supplies.

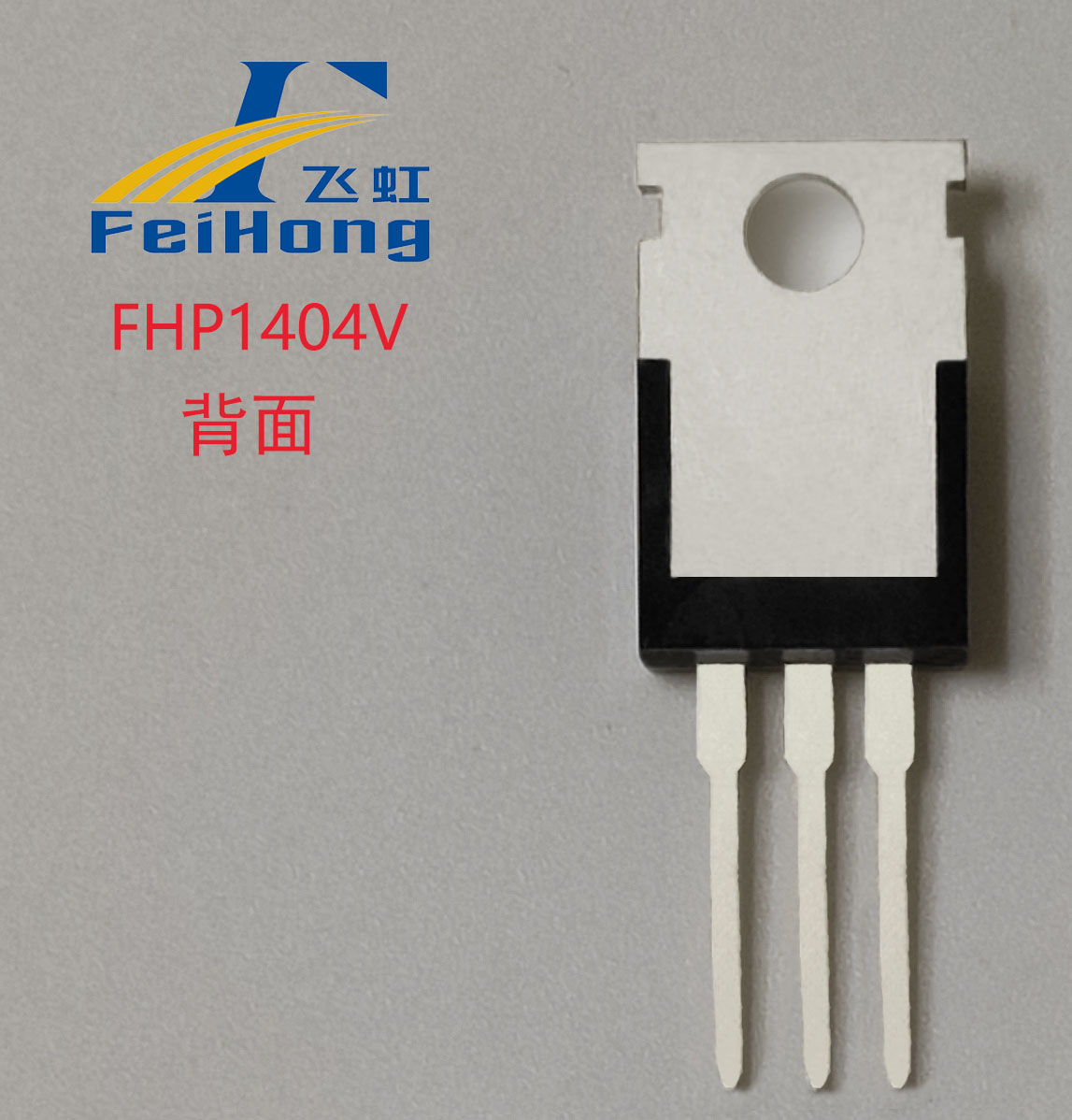

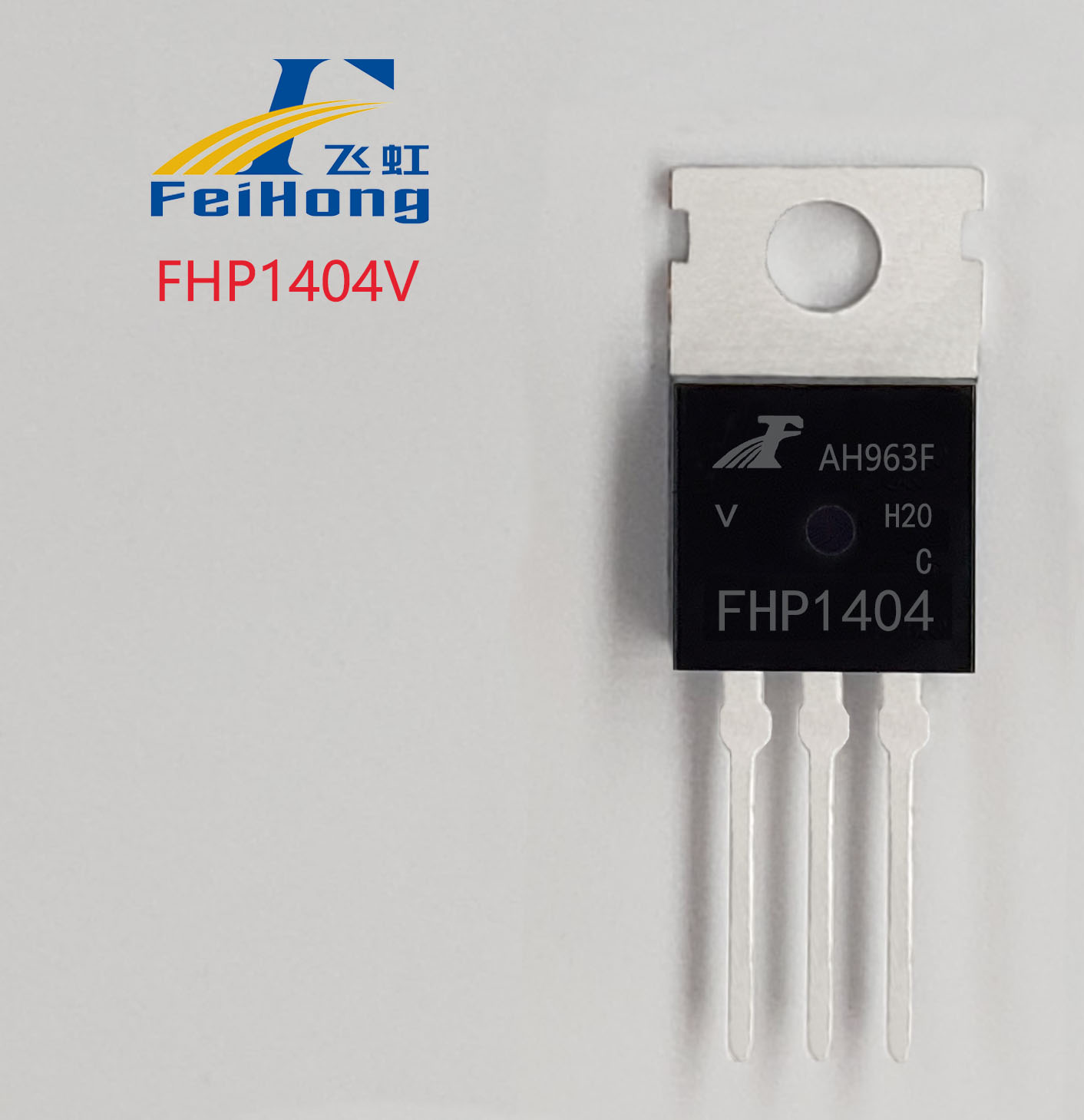

In addition, the main package form of FHP1404V is TO-220 package, complying with JEDEC standards. It meets RoHS and REACH standards and is environmentally friendly without halogens.

Combined with excellent package BOM materials and using special trench technology, the product has high reliability and fast switching speed.

If you need to introduce a 250A current, 45V voltage MOSFET, we highly recommend the pure domestic FHP1404V model to replace IRF1404PbF for use in UPS uninterruptible power supplies.

The replacement of 250A, 45V MOSFETs is very important for the selection of UPS uninterruptible power supplies. The MOSFETs from Feihong Semiconductor are not only widely used in UPS uninterruptible power supplies but also in applications such as 12V input audio power supplies, 12V full-bridge topology solar frequency converter off-grid inverters, high-power high-frequency switch power supplies, and vehicle-mounted high-frequency inverters.

They provide quality products and supporting services to domestic electronic product manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
