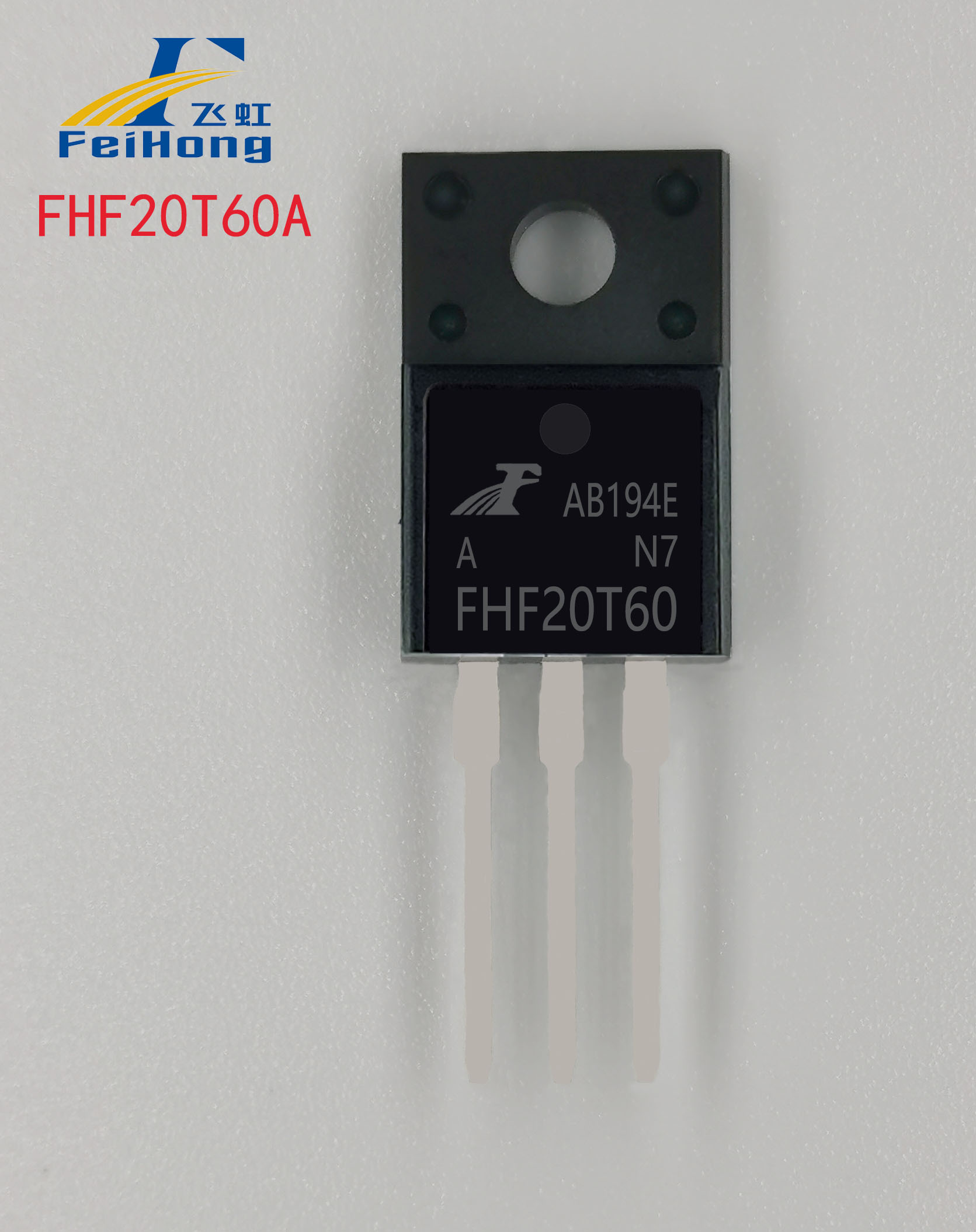

FHF20T60A

Release time：2022-07-13 13:53:25

Industry generic name：NCE20TD60BFWait

View Specifications >

  • FHF20T60A is a field N-channel trench gate stop IGBT, which is widely used in various hard switches such as high-frequency vehicle-mounted positive-wave inverters with AC220V output and outdoor energy storage power supplies. Can better replace: NCE20TD60BF IGBT tube.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Model Package VGE(th)（V） IC-100℃（A） BVdss(V) VCESAT(V) VF(V)
Model Encapsulation form typ max typ
FHF20T60A
TO-220F
4.9~6.3
20
650
1.49
1.7
1.47

Product Details

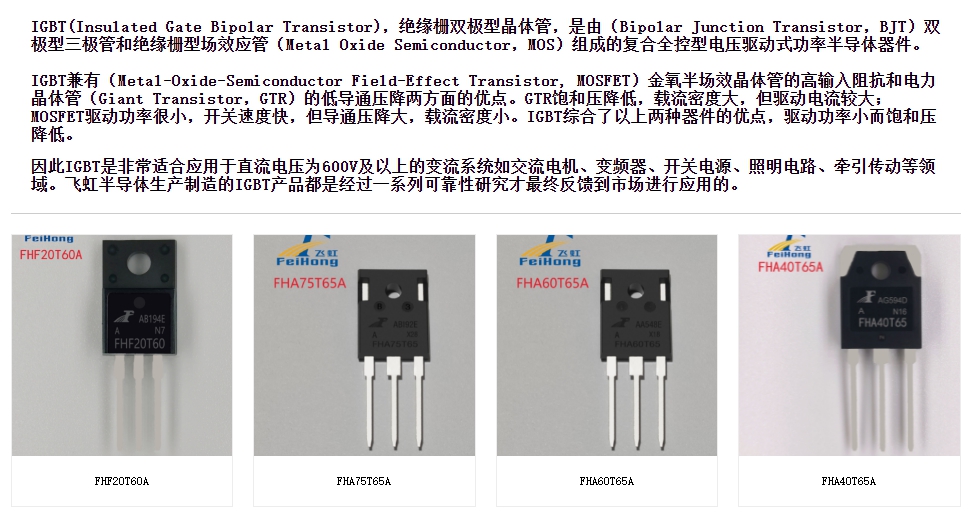

【FHF20T60A product type】

  N-channel trench gate IGBT with built-in freewheeling diode


【FHF20T60Aproduct description】

       The FHF20T60A is an N-channel trench-gate IGBT using Trench Field stop Ⅱ technology and optimized process to achieve extremely low VCEsat saturation voltage, and a good balance between conduction loss and switching-off loss (Eoff). The excellent on-state voltage drop and very short tail current provide strong support for optimizing system efficiency, widely applicable in various hard-switching applications such as high-frequency car-mounted sine wave inverters with AC220V output and outdoor energy storage power supplies.

        Alternative IGBT tube models from other brands: NCE20TD60BF


【FHF20T60Aproduct features】

        High reliability, reverse-parallel fast recovery diode, Trench Field Stop technology (very short tail current, excellent Vcesat saturation voltage, low switching-off loss), positive temperature coefficient, applicable frequency: 20KHz.



【 FHF20T60Aapplication examples】


        1、 FHF20T60A applied in high-frequency vehicle AC220V inverter

               600W model:Use 4 pieces of FHF20T60A in the full-bridge topology of the inverter

        high-frequency vehicle AC220V inverter IGBT application


        2、FHF20T60A applied in outdoor energy storage power supply

               220V output inverter module (600W model)

        high-frequency vehicle AC220V inverter IGBT application


        3、FHF20T60A applied in electric tools

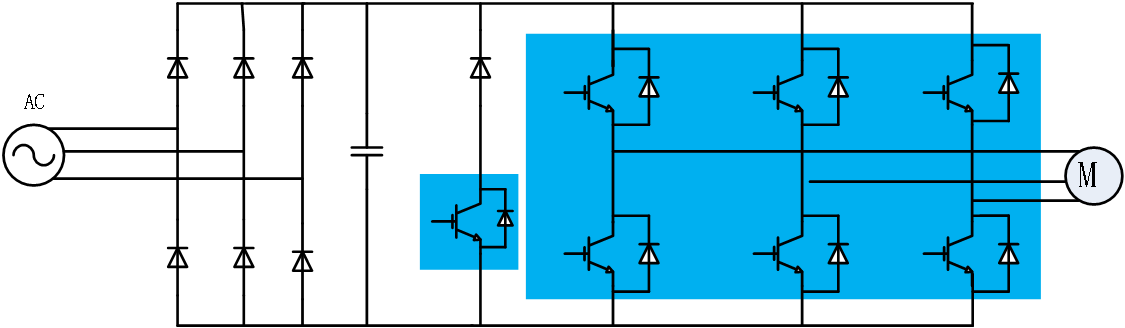

              Tree wall trimmers, leaf blowers, chain saws, and angle grinders powered by AC supply, mainly used in motor drive modules of electric tools. Motors include: brushed DC, three-phase brushless DC or induction motors. Motor drives use three-phase motor drive circuits, identical to the circuit diagrams in the motor drive introduction.


        4、FHF20T60Aapplied in motor drives

             Industrial sewing machines (IGBT as PFC and motor drive elements, PFC + motor drive circuit (three-phase full-bridge topology)

             Servo motor drivers (e.g., electric forklifts use three-phase motor drives)

             Variable frequency drives


Blender (in the motor drive section of the blender)
